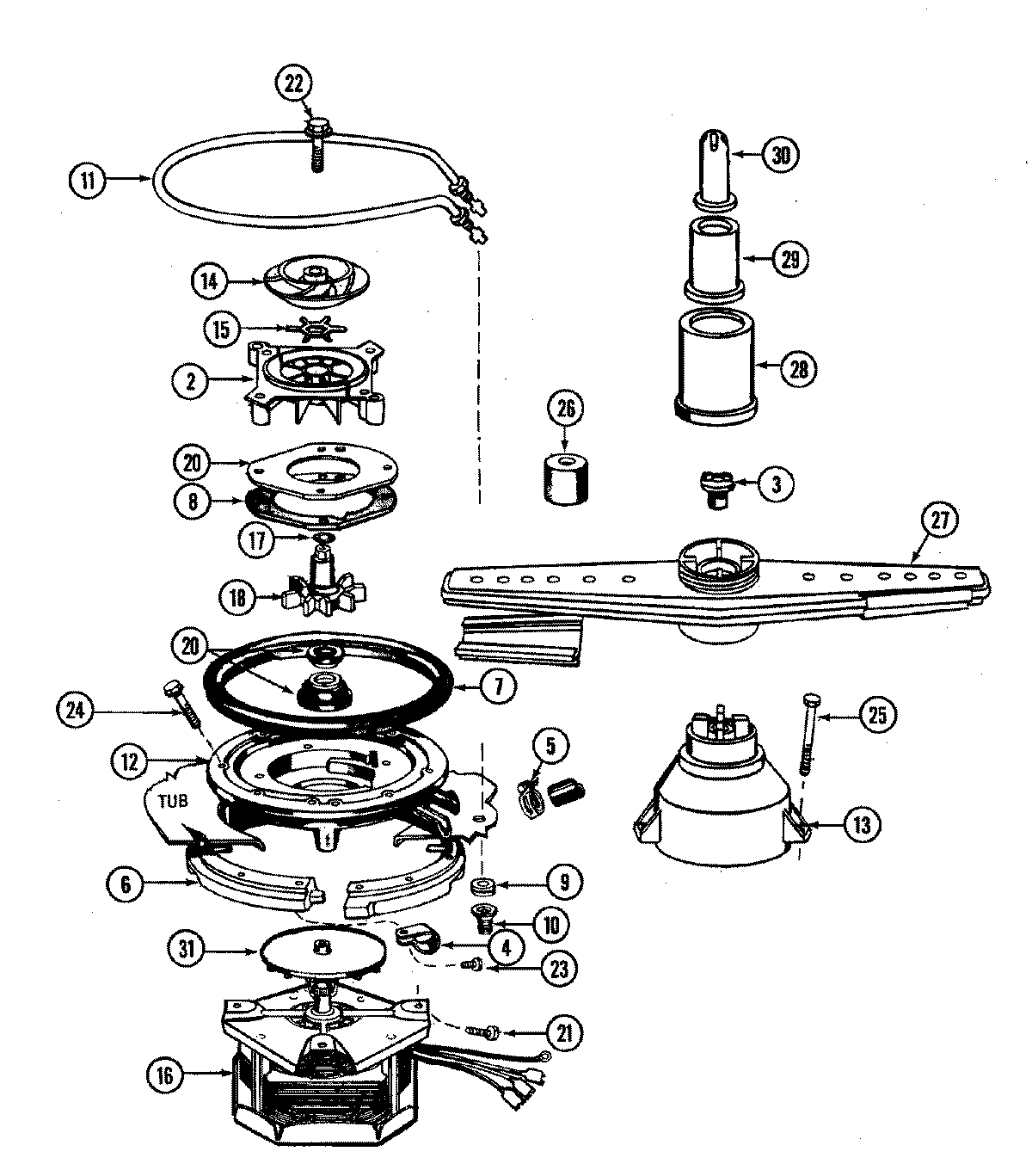

DU18J4C 04 – PUMP ASSEMBLY (DU18J4C)

DU18J4C 04 – PUMP ASSEMBLY (DU18J4C)

Written by

in

DU18J4C 04 – PUMP ASSEMBLY (DU18J4C)

Products

Position	Product
1	MAY 03100055
2	MAY 03100012
3	ACCESS PANEL
4	WIRE CLAMP
5	MAY 808186
6	CLAMP RING
7	PUMP GASKET
8	GASKET
9	GROMMET
10	MAY Y03100054
11	MAY Y03100051
12	MAY Y03100011
13	MAY Y03100006
14	MAY Y03100007
15	MAY Y03100008
16	MAY Y03100053
17	O RING
18	MAY Y03100027
19	PUMP PLATE
20	GASKET
21	MAY 809022
22	MAY 806353
23	MAY 807270
24	MAY 807268
25	SCREW
26	SEAL TOOL
27	MAY 03100056
28	TOWER BASE
29	MAY 808179
30	MAY 808849
31	WATERSHIELD ASM
