DU2000XS0 03 – DOOR

DU2000XS0 03 – DOOR

Written by

in

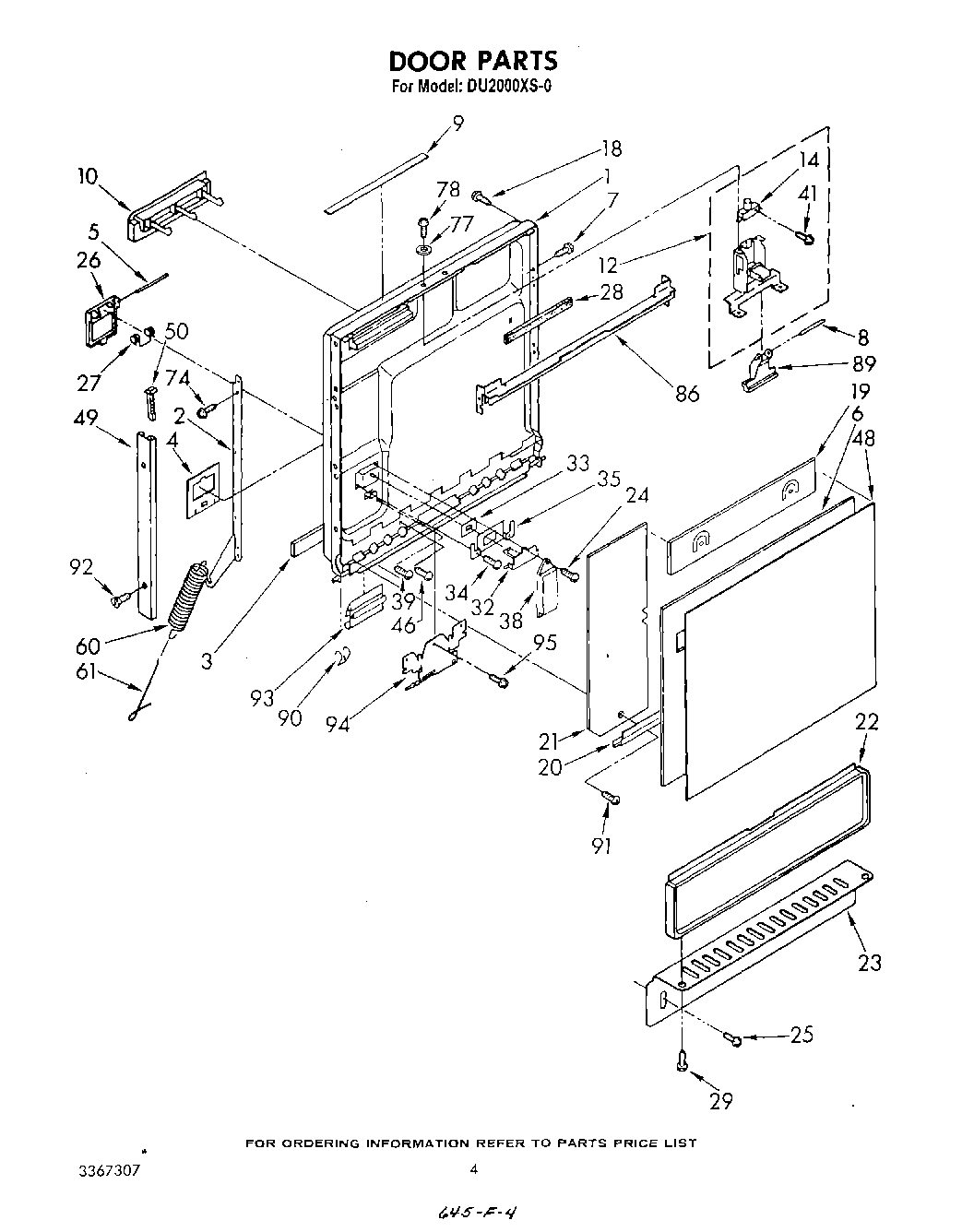

DU2000XS0 03 – DOOR

Products

PositionProduct
1Door, Inner
2Support, Door (L.H.)
2Support, Door (R.H.)
3Gasket, Door
4Barrier
54387043 Whirlpool Door Latch Kit
6Spacer, Panel
7WP489069 Whirlpool Compactor Screw
8Pin, Pivot
9Label, User Guide
10Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
18Screw, 8 x 1-7/8 (2)
19Barrier, Console
20Edging, Panel
21Barrier, Door
22WP3367793 Whirlpool Black Access Panel
23Plate, Toe
25WP90767 Whirlpool Screw
27WP8066018 Whirlpool Spring Assembly
28Baffle
29WP302868 Whirlpool Screw
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
41Screw, 6-32 x 1
48Panel, Front
49Trim, Door (L.H.)
49Trim, Door R.H.
50Clip, Trim Guard (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
86Rail, Support
89Lever, Release
90Clip, Wire
91W11693756 Whirlpool Screw Assembly
92Screw, 8 x 1/2 (4)
93Retainer, Clip
94Shield, Harness
95Screw, 8-18 x 5/8
