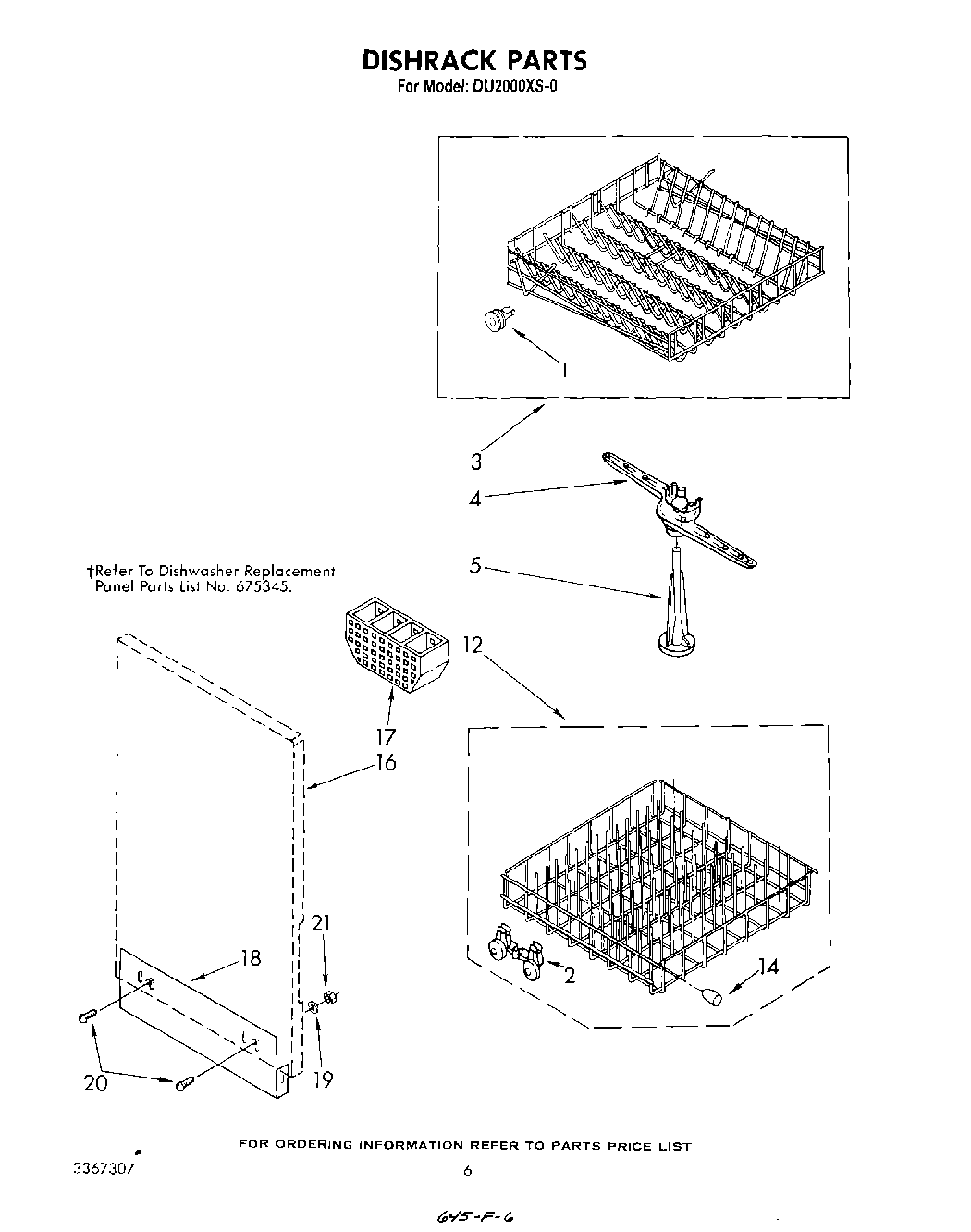

DU2000XS0 04 – DISHRACK

Products

Position	Product
1	Wheel & Axle Assembly (4)
2	4317933 Whirlpool Lower Rack Wheels
3	W11169039 Whirlpool Dishwasher Dish Rack
4	WP304204 Whirlpool Dishwasher Spray Arm
5	Tower
12	W10311986 Whirlpool Dishwasher Lower Rack
14	Bumper
16	Panel, Reversible Side
17	WP8539066 Whirlpool Dishwasher Basket Ware
18	Panel, Lower Side
19	W11089212 Whirlpool Washer
20	Screw, Lower Side Panel Mounting (2)
21	W10080180 Whirlpool Nut
