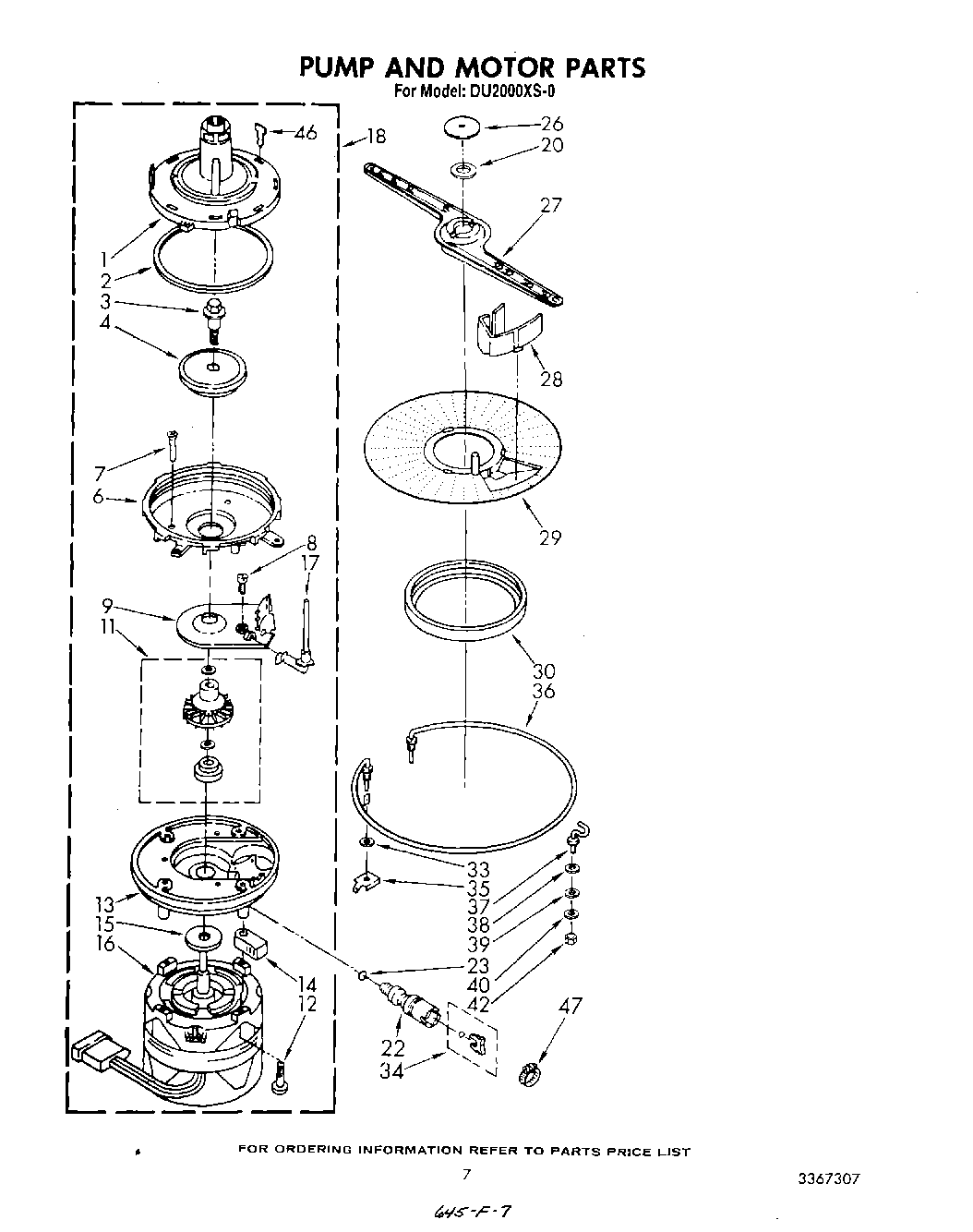

DU2000XS0 05 – PUMP AND MOTOR

DU2000XS0 05 – PUMP AND MOTOR

Written by

in

DU2000XS0 05 – PUMP AND MOTOR

Products

PositionProduct
1Pump Housing, Upper
2Seal, Ring
3WP3371152 Whirlpool Dishwasher Screw
4Impeller
6Pump Housing, Lower
7718257 Whirlpool Dishwasher Screw
8WP9741232 Whirlpool Dishwasher Screw
9Coverplate
11Kit, Drain Impeller
12Screw, 13-16 (4)
13Base, Pump
14WP3367197 Whirlpool Dishwasher Support
15W10909679 Whirlpool Dishwasher Slinger
16Motor
17Bleeder Assembly
18Pump & Motor Assembly
20WP719576 Whirlpool Dishwasher Bearing
22675238 Whirlpool Check Valve
23“O“ Ring
26Cap, Nozzle
27Spray Arm, Lower
28Guard, Screen
29Screen, Sump
30717000 Whirlpool Dishwasher Gasket
33WP717273 Whirlpool Dishwasher Rubber Washer
34Check Ball & Retainer
35Nut, Heater Element
36Heater (Alternate)
36Heater (Alternate)
36Heater (Alternate)
36Heater (Alternate)
37Support, Heater (2)
38Washer, Retainer (2)
39Washer (2)
40Washer (2)
42Nut, Hex
46Key, Pump Housing
47WP3367052 Whirlpool Hose Clamp
