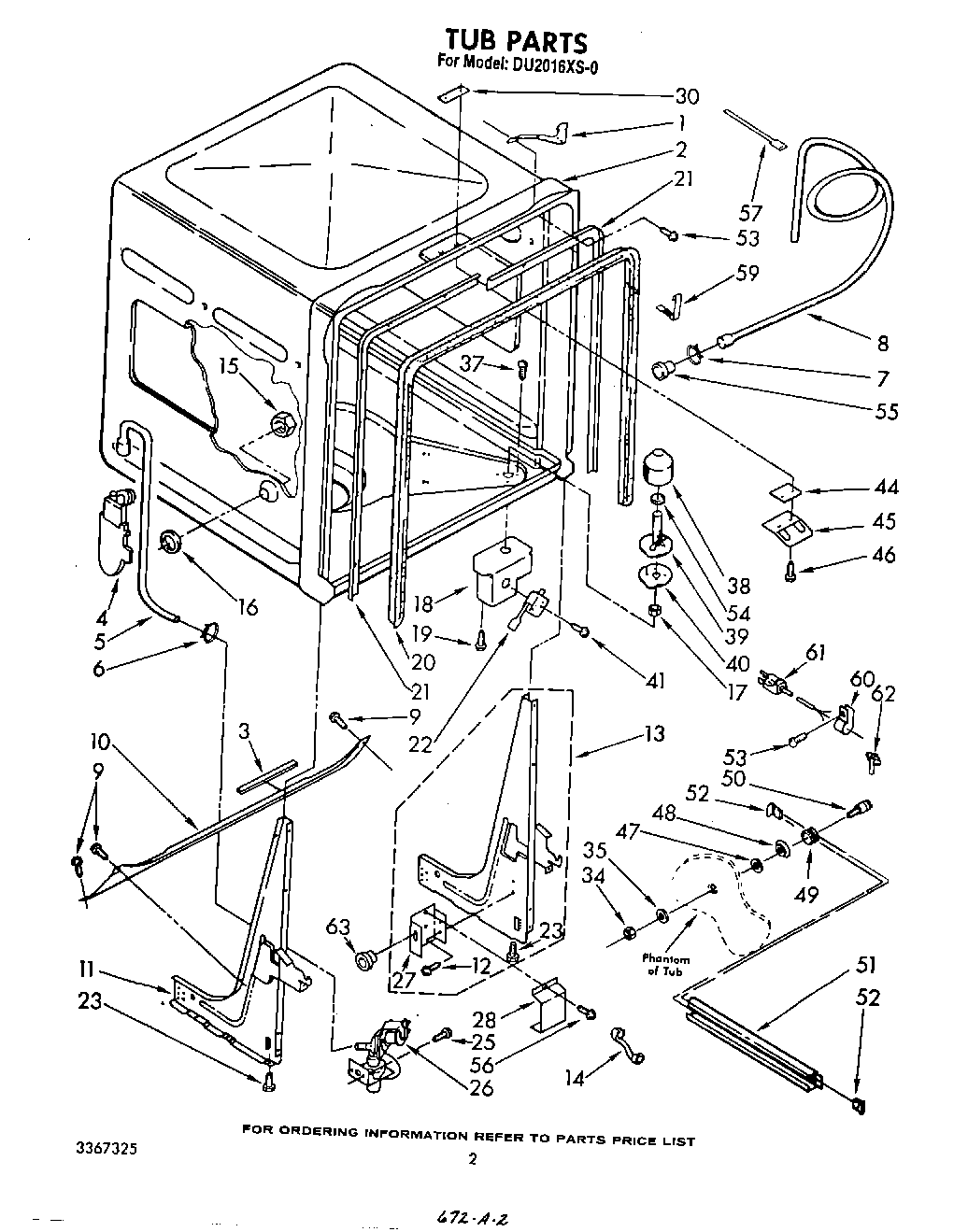

DU2016XS0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
1	Bracket, Mounting (2)
2	tub assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	675544 Whirlpool Drain Hose
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
20	Gasket
20	Retainer (L.H.)
21	Retainer (R.H.)
22	Switch, Pressure
22	Retainer-Main Top (2 Required)
22	Switch, Pressure (Alternate)
23	8193716 Whirlpool Leveling Leg
26	Valve, Water Inlet
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
59	Clip, Gasket (2)
60	Clamp, Strain Relief
61	WPL 302764
62	WPL 770754
63	350956 Whirlpool Spray Assembly
63	Toast
63	72113 Whirlpool Touch-Up Paint
63	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
63	WP72107 Whirlpool Touchup
63	799344 Whirlpool Refrigerator Paint
63	350930 Whirlpool White Spray Paint
63	WPL 302770
63	Golden Harvest
63	Golden Harvest (Uncut)
63	Paint, Spray (13 Oz.) (Platinum)
63	Kit, Epoxy Patch (White)
63	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
63	Leveler (Thinner) (2oz.)
63	72032 Whirlpool Touch Up Paint Black
63	285006 Whirlpool Spray
63	Enamel, Black (1 Qt. Uncut)
63	350942 Whirlpool Spray Paint
63	WPL 72112
63	Platinum (Uncut)
63	Enamal, Toast (1 Qt. Uncut)
63	WPL 71017
