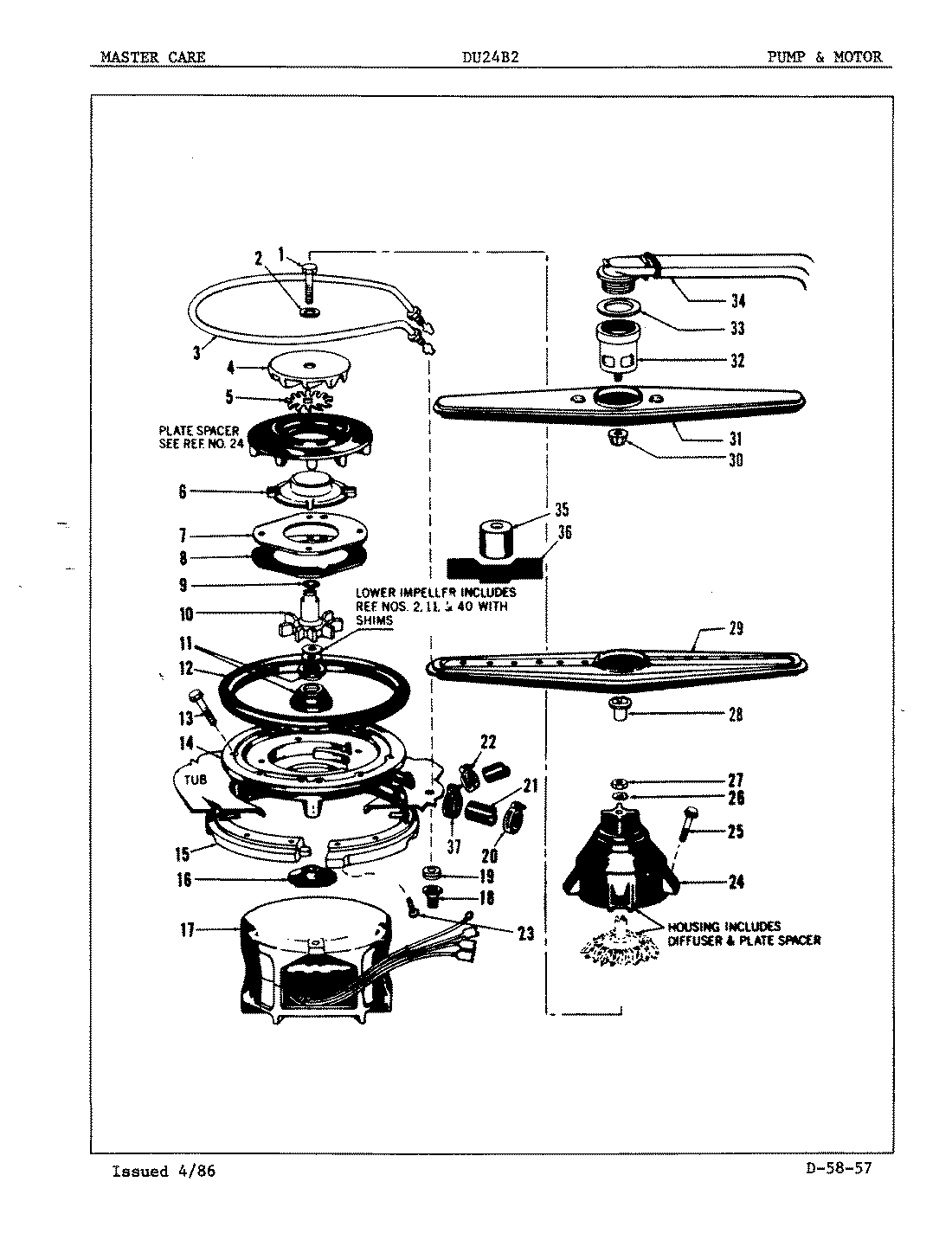

DU24B2 07 – PUMP & MOTOR

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER KIT
4	UPPER IMPELLER
5	MACERATOR BLADE
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	IMPELLER KIT
11	GASKET
12	MAY 807710
13	MAY 807268
14	PUMP HOUSING
15	CLAMP RING
16	MAY D800062
17	MOTOR
18	NUT
19	GROMMET
20	CLAMP
21	HOSE CONNECTOR
22	CLAMP
23	MAY 806945
24	PUMPHOUSING KIT
25	SCREW
26	MAY 804527
28	MAY 804473
29	LWR SPRAY ARM
29	WASHER
30	MAY 808181
31	MAY 808182
32	MAY 808183
33	MAY 808184
34	ELBOW & TUBE
35	SEAL TOOL
36	SHIM GAUGE
37	MAY 808186
