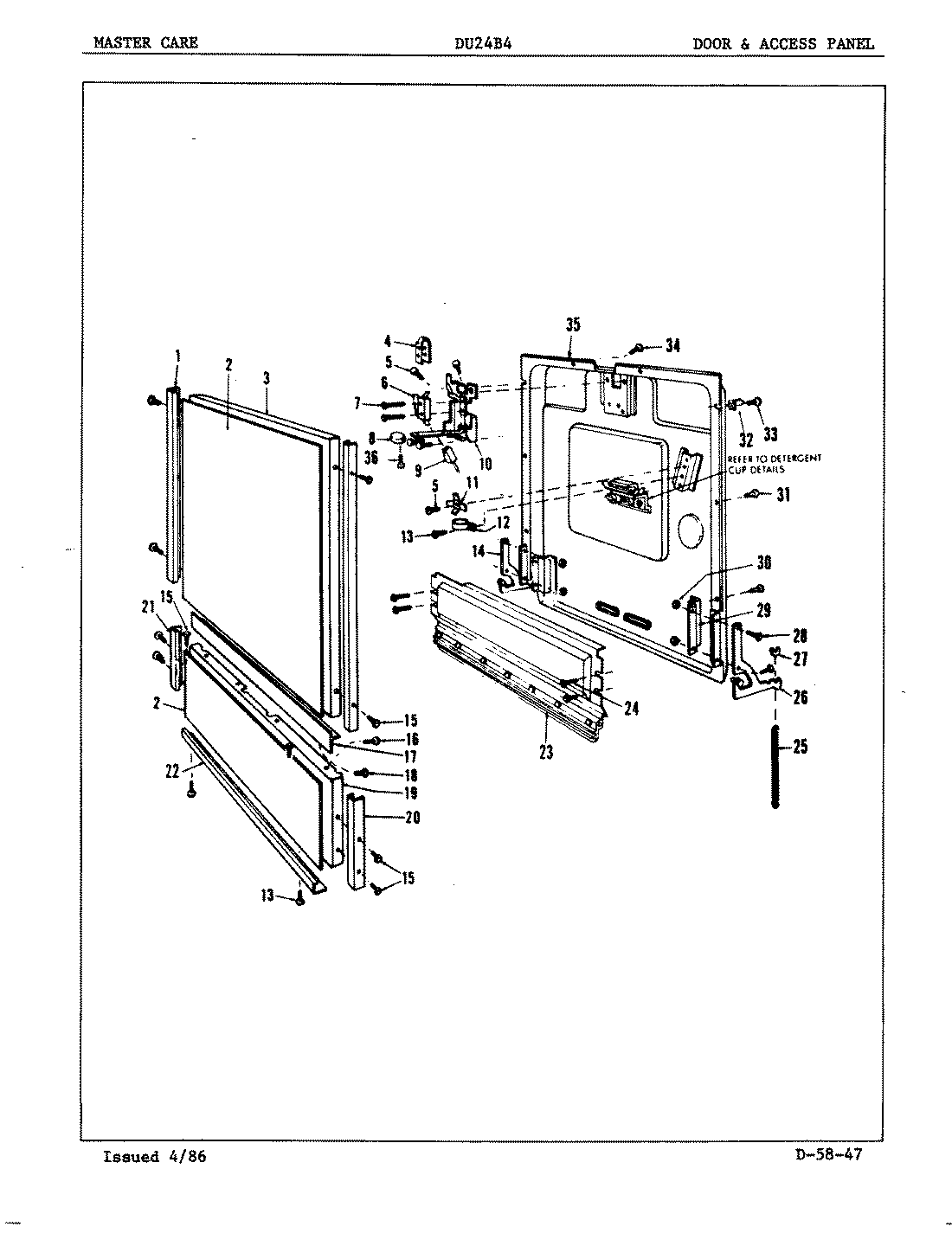

DU24B4 04 – DOOR\DRAWER

Products

PositionProduct
1DOOR TRIM
2INSERT, DOOR PANEL
2MAY 807706
2MAY 807644
3OUTER PANEL
4SWITCH COVER
5SCREW
6MAY 807043
7SCREW
8MAY 806398
9INSULATOR
10LATCH ASM
11GROUND TERMINAL
12MAY 807212
13SCREW
14LH ARM
15MAY 807293
16MAY 807784
17DOOR TRIM
18MAY 807501
19PANEL
20RH TRIM
21LH TRIM
22BOTTOM TRIM
23MAY 807044
24SCREW
25DOOR SPRING
26MAY 805861
27SPRING PAD
28MAY 803311
29ARM BRACKET
30MAY 800928
31SCREW
32DOOR GUIDE
33MAY 806926
34SCREW
35INNER PANEL
36SCREW
