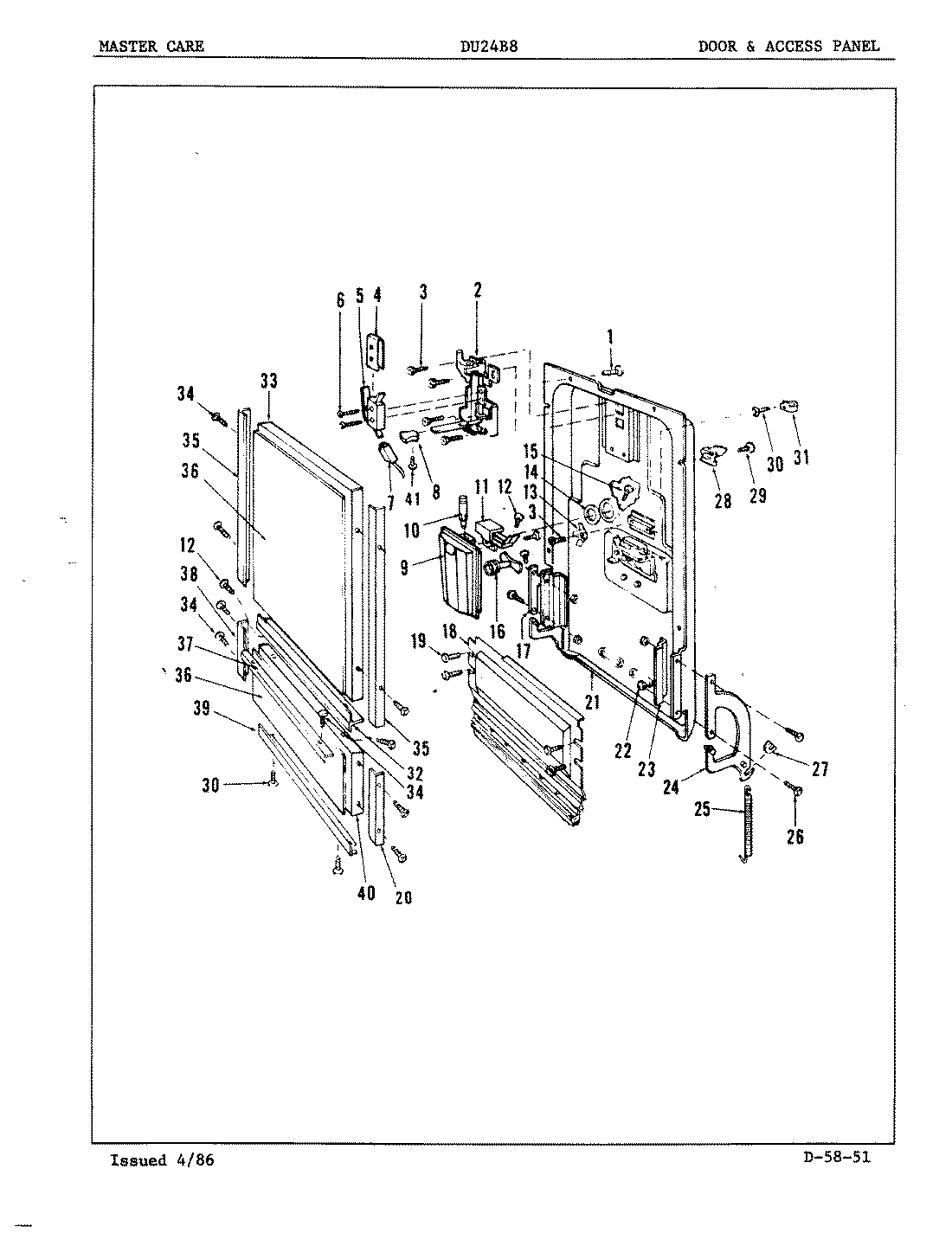

DU24B8 04 – DOOR & ACCESS PANEL

Products

Position	Product
1	SCREW
2	LATCH ASM
3	SCREW
4	SWITCH COVER
5	MAY 807043
6	MAY 803051–
7	INSULATOR
8	MAY 806398
9	DISPENSER
10	MAY 806757
11	BRACKET
12	MAY 807501
13	GROUND TERMINAL
14	GROMMET
15	SCREW
16	MAY 806843
16	MAY 805340
17	LH ARM
18	MAY 807044
19	SCREW
20	RH TRIM
21	INNER PANEL
22	MAY 800928
23	ARM BRACKET
24	RH ARM
25	DOOR SPRING
26	MAY 803311
27	SCREW
27	SPRING PAD
28	DOOR GUIDE
29	MAY 806976
30	SCREW
31	MAY 807212
32	DOOR TRIM
33	OUTER PANEL
34	MAY 808280
34	MAY 807784
35	DOOR TRIM
36	INSERT, DOOR PANEL
36	MAY 807644
36	MAY 807706
37	ACCESS PNL TRIM
38	LH TRIM
39	BOTTOM TRIM
40	PANEL
41	SCREW
