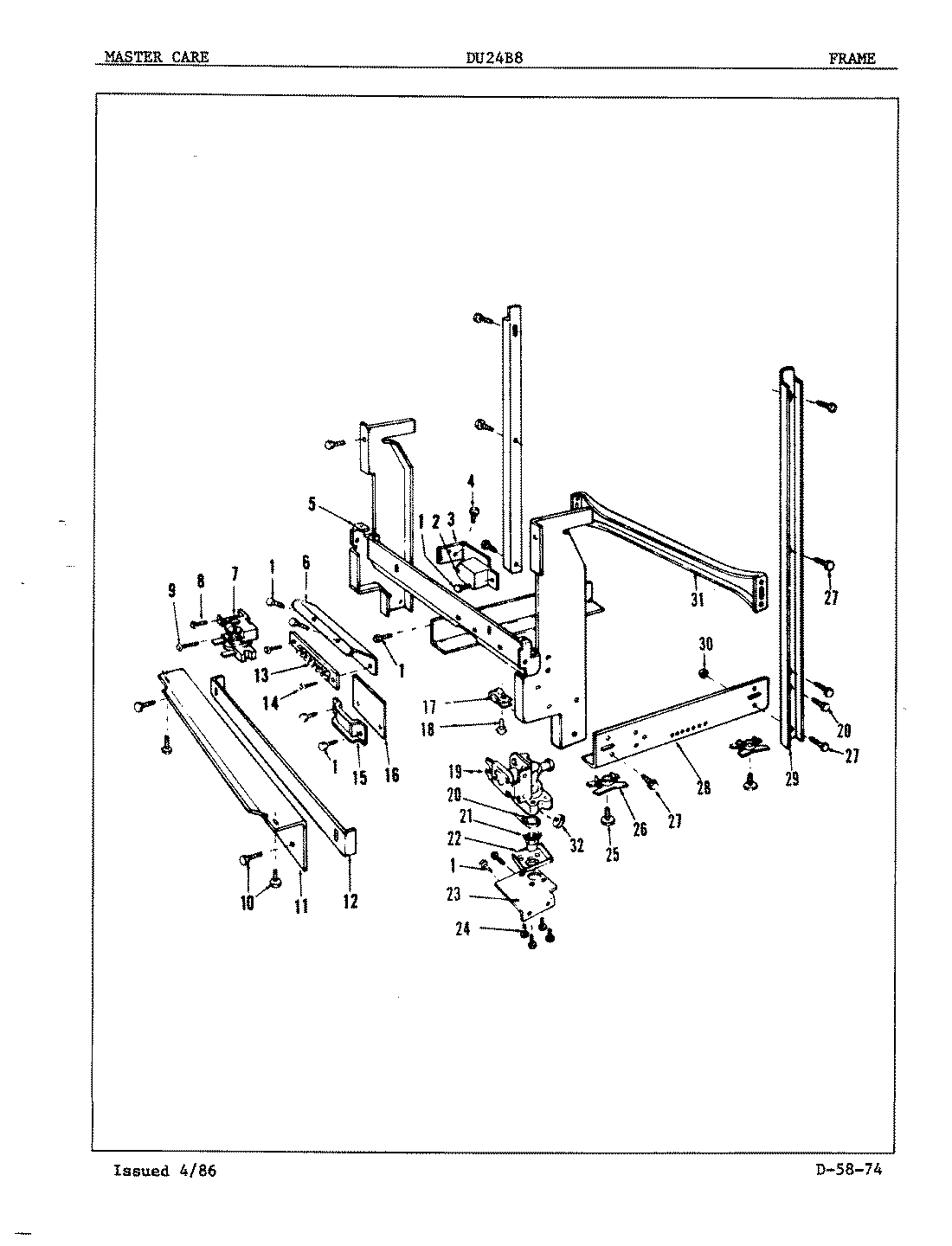

DU24B8 05 – FRAME

Products

Position	Product
1	SCREW
2	TERMINAL COVER
3	BRACKET
4	MAY 806539
5	MAY 807848
6	MAY 807849
7	SUB 805255
8	MAY 806593
9	MAY 804672
10	SCREW
11	TOE PLATE
12	TOE PLATE
13	MAY 807486
14	MAY 807501
15	MAY 805584
16	WIRE SHIELD
16	SCREW
17	MAY 808170
18	MAY 807784
19	MAY 806900
20	MAY 806100
21	MAY 807614
22	RETAINER
23	VALVE BRACKET
24	SCREW
25	MAY 807672
26	TEENUT
27	MAY 806889
28	SIDE CHANNEL
29	CHANNEL
30	MAY 804619
31	MAY 807852
32	MAY 807609
