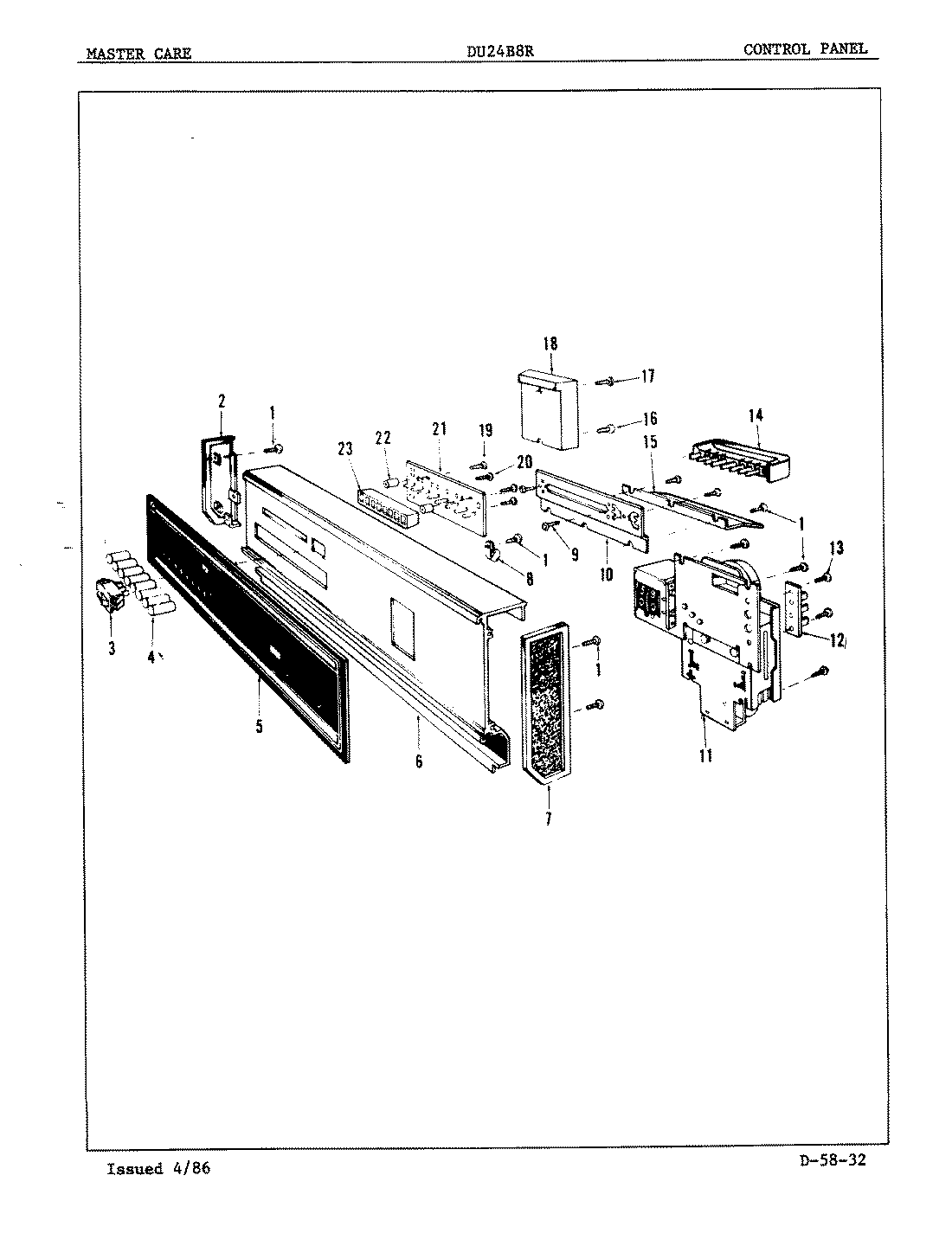

DU24B8R 02 – CONTROL PANEL

Products

Position	Product
1	SCREW
2	LH END CAP
3	MAY 807665
4	PUSH BUTTON
5	MAY 808248
6	MAY 808163
7	RH END CAP
8	MAY 808249
9	MAY 807103
10	SWITCH BRACKET
11	MAY 808101
12	MAY 808166
13	MAY 807501
14	MAY 808196
15	MAY 808165
16	SCREW
17	SCREW
18	MAY 807425
19	SCREW
20	MAY 807141
21	MAY 808168
22	MAY 805323
23	DIVIDER
