DU24C2 04 – DOOR & ACCESS PANEL – Aparts

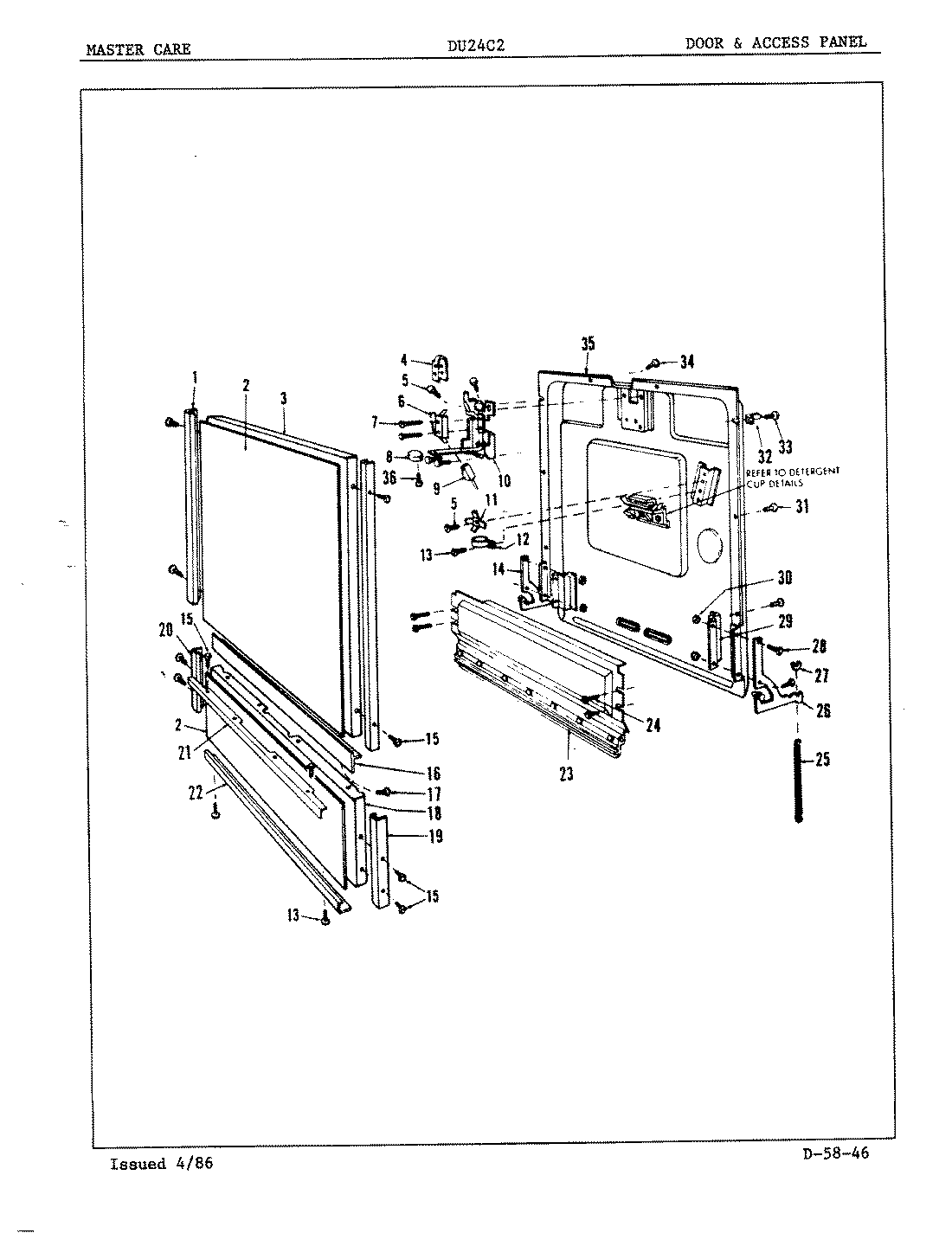

DU24C2 04 – DOOR & ACCESS PANEL

Products

Position	Product
1	DOOR TRIM
2	INSERT, DOOR PANEL
3	OUTER PANEL
4	SWITCH COVER
5	SCREW
6	MAY 807043
7	SCREW
8	MAY 806398
9	INSULATOR
10	LATCH ASM
11	GROUND TERMINAL
12	MAY 807212
13	SCREW
14	LH ARM
15	MAY 807293
16	DOOR TRIM
17	MAY 807501
18	PANEL
19	RH TRIM
20	LH TRIM
21	ACC PNL TRIM
22	BOTTOM TRIM
23	VENT BAFFLE
24	SCREW
25	DOOR SPRING
26	RH ARM
27	SPRING PAD
28	MAY 803311
29	ARM BRACKET
30	MAY 808430
31	SCREW
32	DOOR GUIDE
33	MAY 806926
34	SCREW
35	INNER PANEL
36	SCREW
