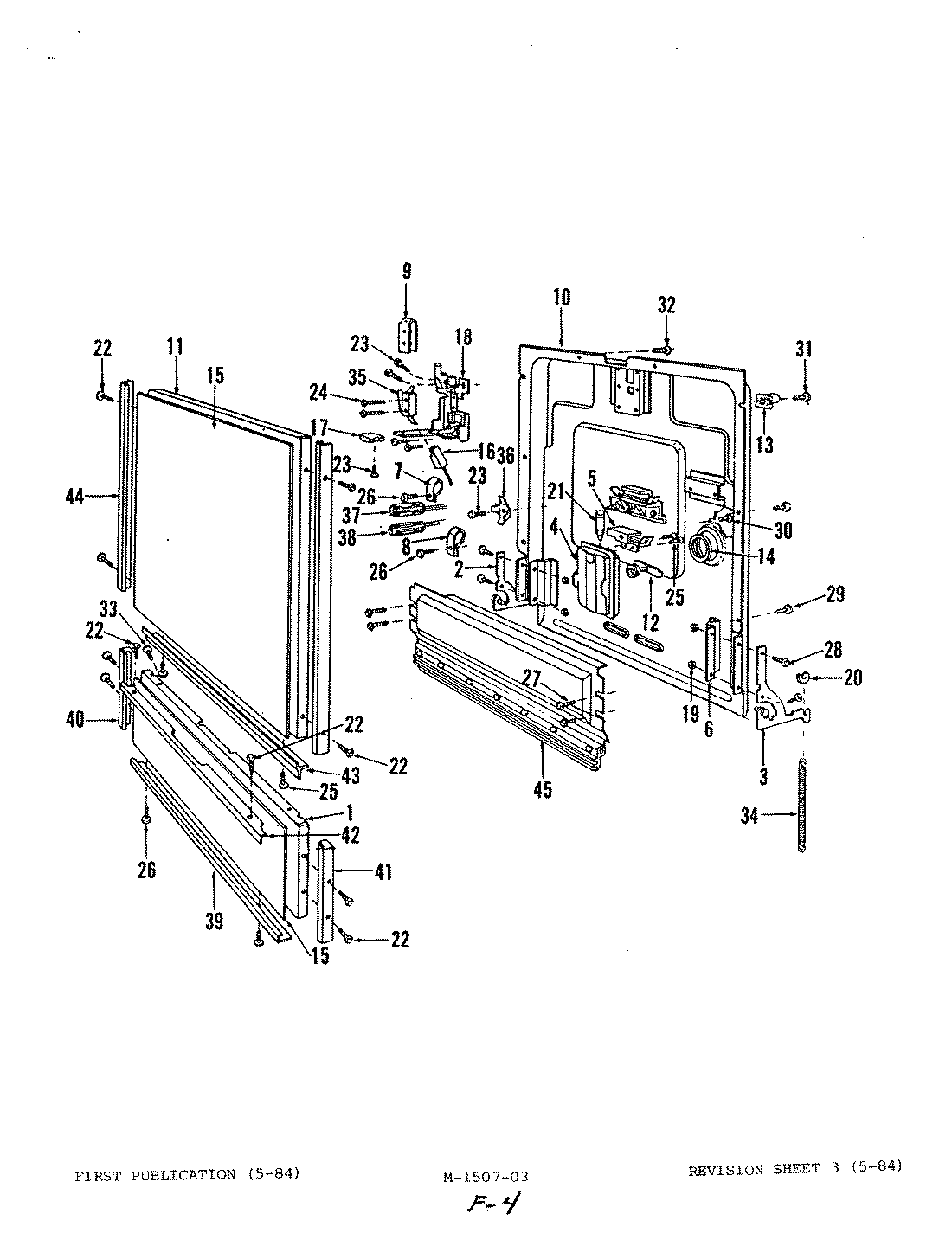

DU24D1 03 – DOOR
Products
| Position | Product |
|---|---|
| 1 | ACCESS PANEL AM |
| 2 | LH ARM |
| 3 | RH ARM |
| 6 | ARM BRACKET |
| 8 | WIRE CLAMP |
| 9 | SWITCH COVER |
| 10 | INNER PANEL |
| 11 | MAY 807595 |
| 13 | DOOR GUIDE |
| 16 | MAY 806845 |
| 17 | KNOB |
| 18 | LATCH ASM |
| 19 | LOCKNUT |
| 20 | SPRING PAD |
| 23 | SCREW |
| 24 | SCREW |
| 25 | SCREW |
| 27 | SCREW |
| 28 | MAY 803311 |
| 29 | SCREW |
| 31 | MAY 806926 |
| 32 | SCREW |
| 34 | DOOR SPRING |
| 35 | MAY 807043 |
| 36 | GROUND TERMINAL |
| 41 | RH TRIM |
| 43 | MAY 806912 |
| 45 | VENT BAFFLE |
