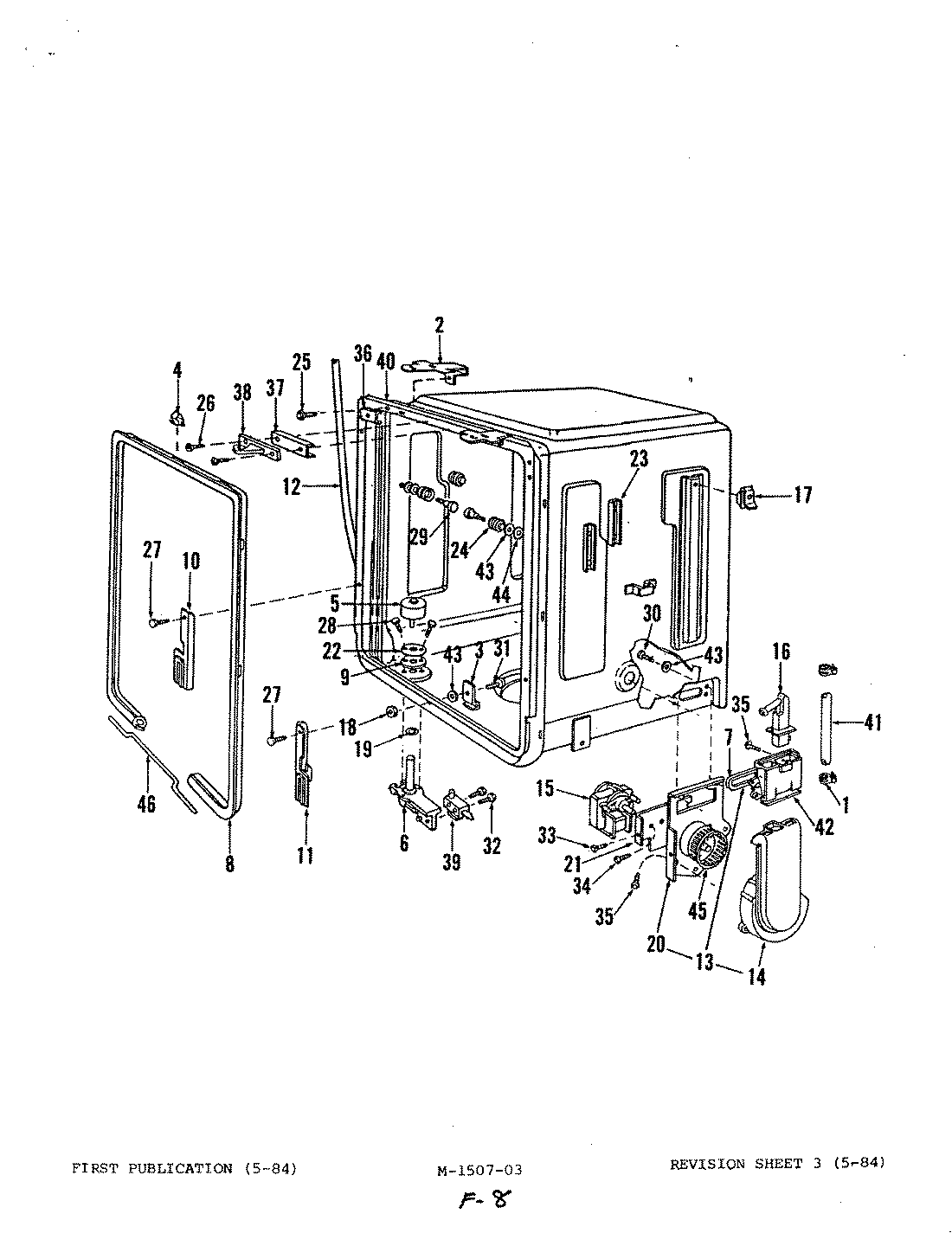

DU24D2 07 – TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	CLIP KIT (TUB GASKET)
5	MAY 804630
6	FLOAT ASM
7	GASKET
8	DOOR GASKET
9	GASKET
10	LH GUIDE
11	RH GUIDE
12	MAY 806089
16	INLET NOZZLE
17	MAY 806291
18	MAY 803346
19	O RING
23	MAY 808705
24	ROLLER
25	SCREW
26	MAY 806890
27	MAY 806539
28	MAY 807268
29	HARDWARE KIT
30	SCREW
31	MAY 803319
32	BOLT
37	STRIKE SHIM
38	STRIKE
39	FLOAT SWITCH
40	MAY 808709
41	INLET TUBE
42	MAY 808706
43	MAY 803367
44	SEALER
46	WIRE,GASKT JUNC
