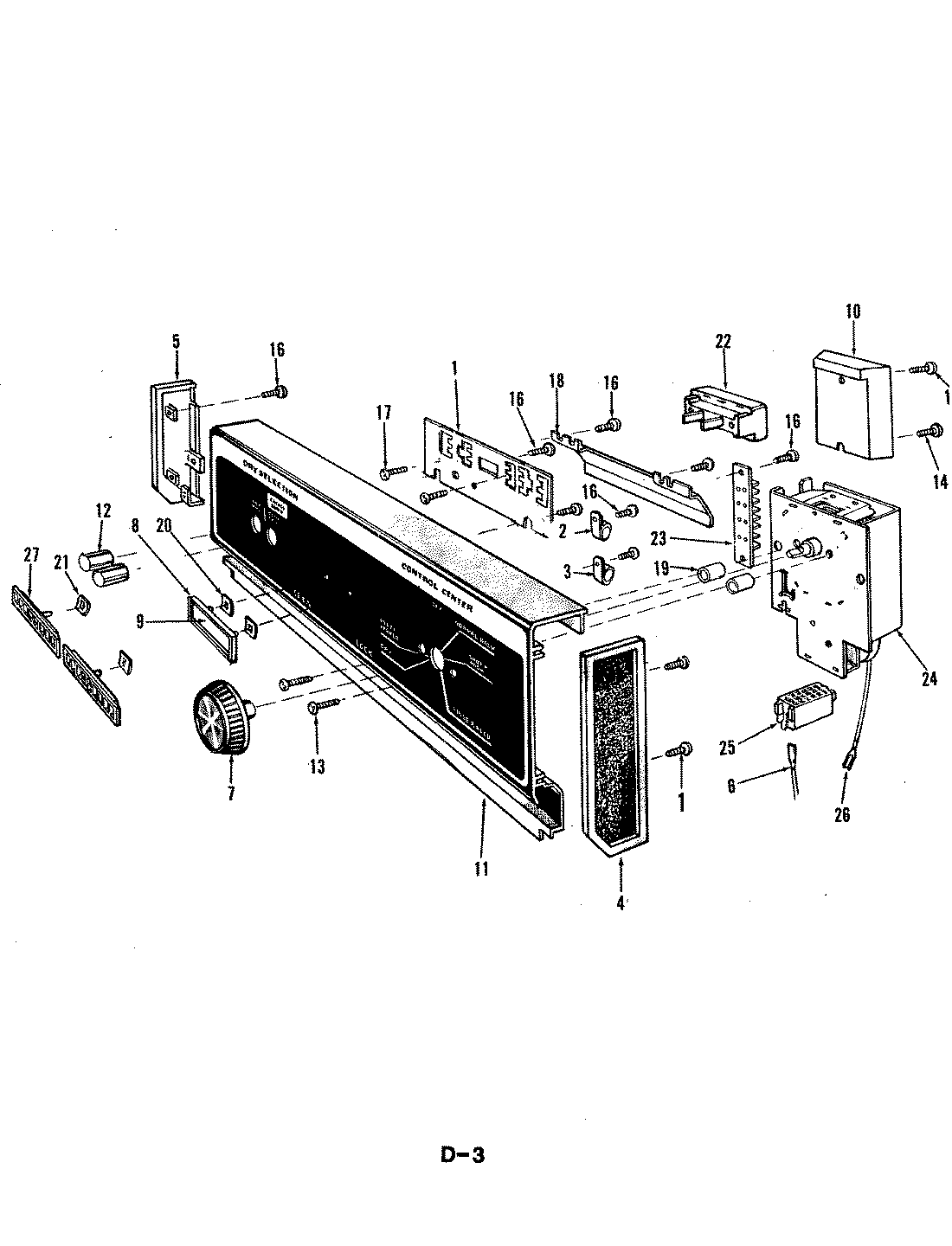

DU24D2A 01 – CONTROL PANEL (DU24D2A)

DU24D2A 01 – CONTROL PANEL (DU24D2A)

Written by

in

DU24D2A 01 – CONTROL PANEL (DU24D2A)

Products

Position	Product
1	SCREW
2	LH ENDCAP
3	MAY 807970
4	MAY 808713
5	PUSH BUTTON
6	MAY 808475
7	VENT TRIM
8	MAY 807094
9	SCREW
10	MAY 809128
11	RH ENDCAP
12	MAY 808333
13	RH TIMER HOUSNG
14	SPACER
15	MAY 808483
16	TERMINAL
17	TIMER
18	SCREW
19	SCREW
20	MAY 807425
21	MAY 807281
22	SWITCH GUARD
23	BRACKET, SWITCH
24	MAY 807141
25	MAY 805584
26	WIRE CLAMP
27	MAY 808721
27	MAY 808717
27	MAY 808719
27	MAY 808720
