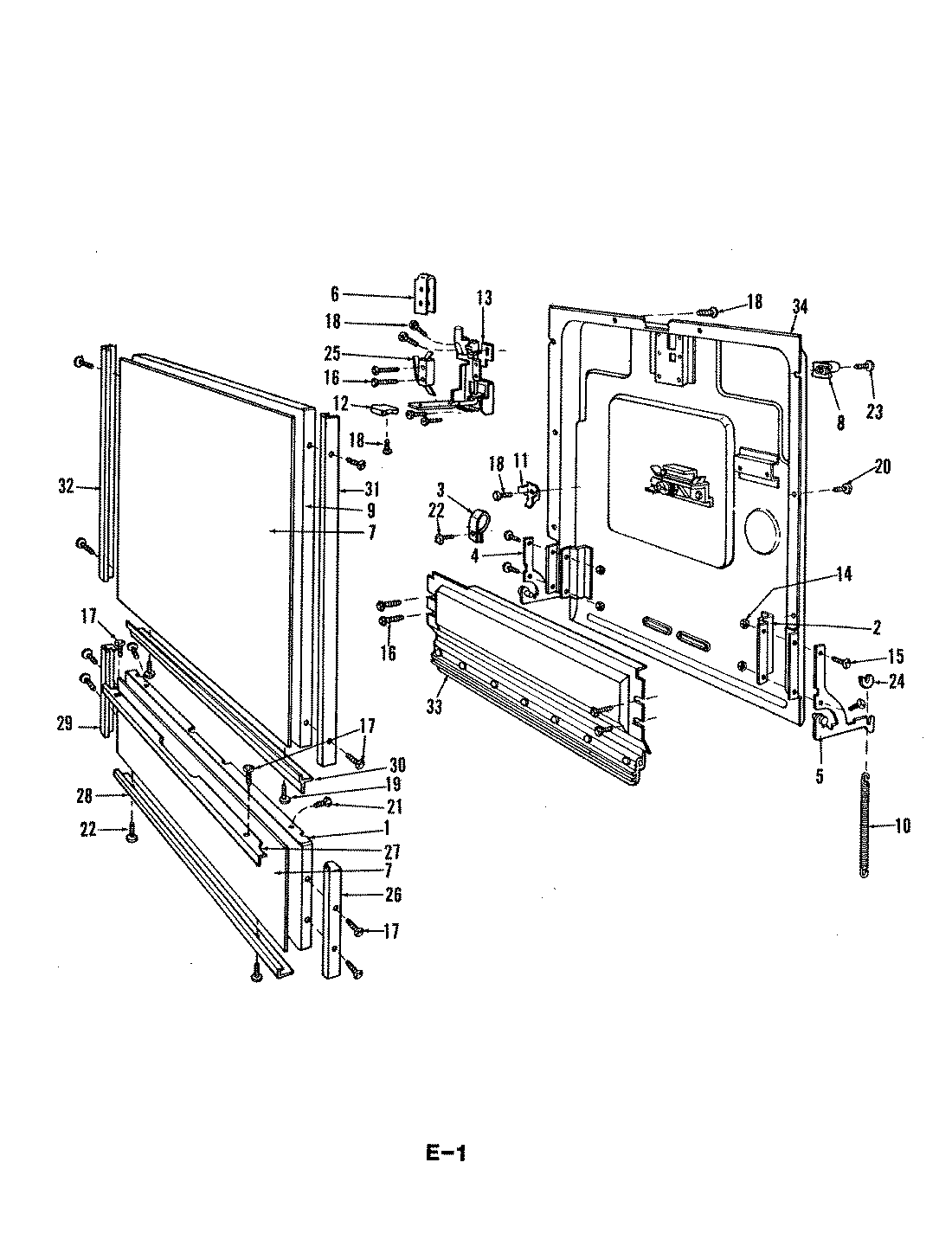

DU24D2A 03 – DOOR (DU24D2A)

Products

Position	Product
1	DOOR SPRING
2	RH ARM
3	MAY 803311
4	SPRING PAD
5	ARM BRACKET
6	LOCKNUT
7	SCREW
8	DOOR GUIDE
9	MAY 808749
10	INNER PANEL
11	SCREW
12	LATCH ASM
13	SWITCH COVER
14	SCREW
15	MAY 807043
16	MAY 808618
17	MAY 806398
18	DOOR TRIM
19	DOOR TRIM
20	OUTER PANEL
21	PANEL INSERT
22	WIRE CLAMP
23	SCREW
24	GROUND TERMINAL
25	LH ARM
26	SCREW
27	VENT BAFFLE
28	MAY 807293
29	DOOR TRIM
30	MAY 807501
31	MAY 808658
32	ACCESS PANEL
33	ACC PNL TRIM
34	RH TRIM
35	BOTTOM TRIM
36	LH TRIM
