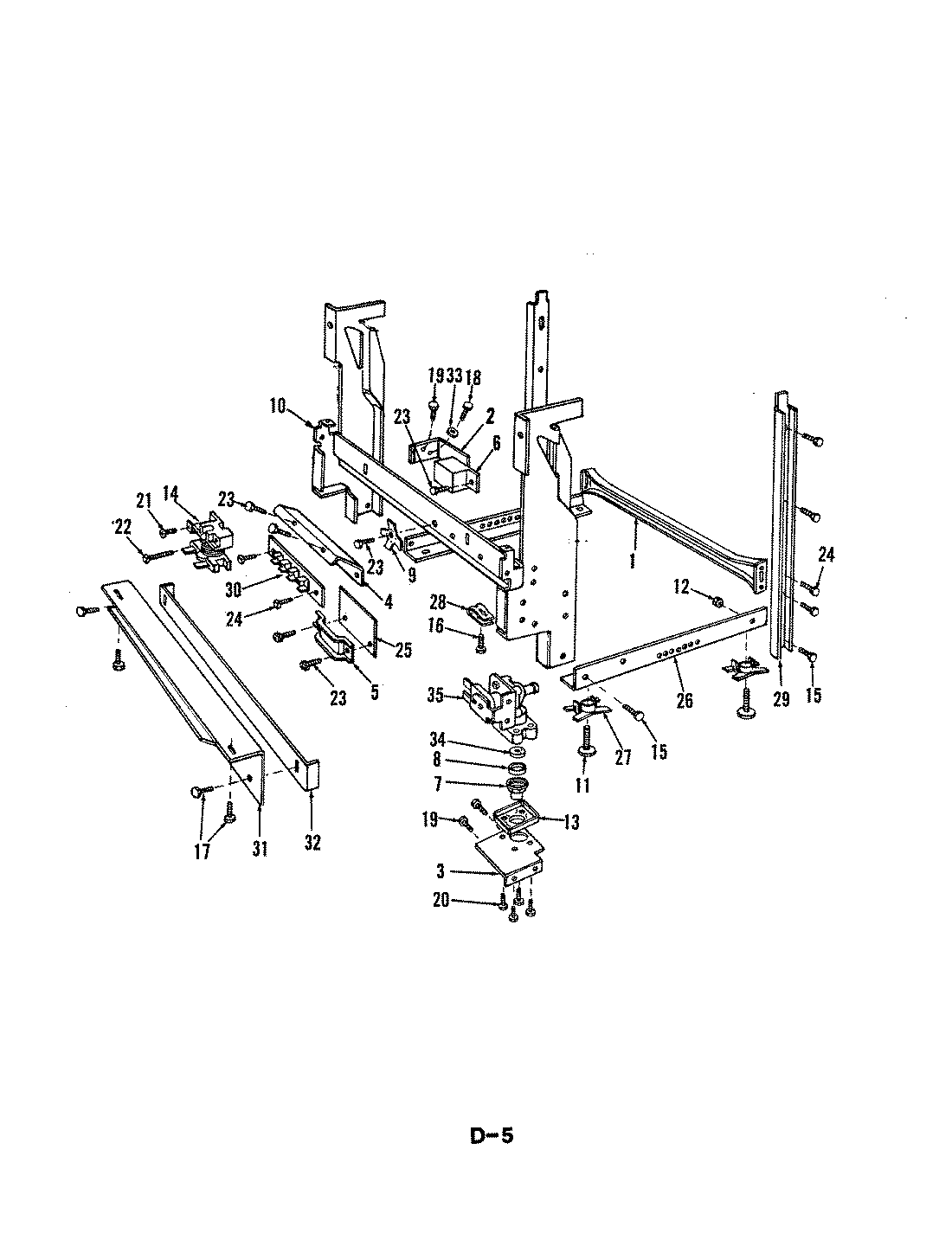

DU24D2A 04 – FRAME PARTS (DU24D2A) – Aparts

DU24D2A 04 – FRAME PARTS (DU24D2A)

Products

Position	Product
1	TERMINAL COVER
2	BRACKET
3	MAY 807951
4	MAY 807373
5	MAY 807950
6	MAY 808658
7	MAY 807848
8	RELAY
9	MAY 806593
10	MAY 804672
11	SCREW
12	TOE PLATE
13	TOE PLATE
14	MAY 807486
15	MAY 807501
16	CLAMP
17	WIRE SHIELD
18	MAY 807849
19	GROUND TERMINAL
20	MAY 808170
21	SCREW
22	INLET VALVE KIT
23	FLOW WASHER
24	MAY 806100
25	FITTING
26	VALVE BRACKET
27	SCREW
28	RETAINER
29	MAY 807672
30	TEENUT
31	MAY 806889
32	SIDE CHANNEL
33	MAY 808670
34	MAY 804619
35	MAY 807852
