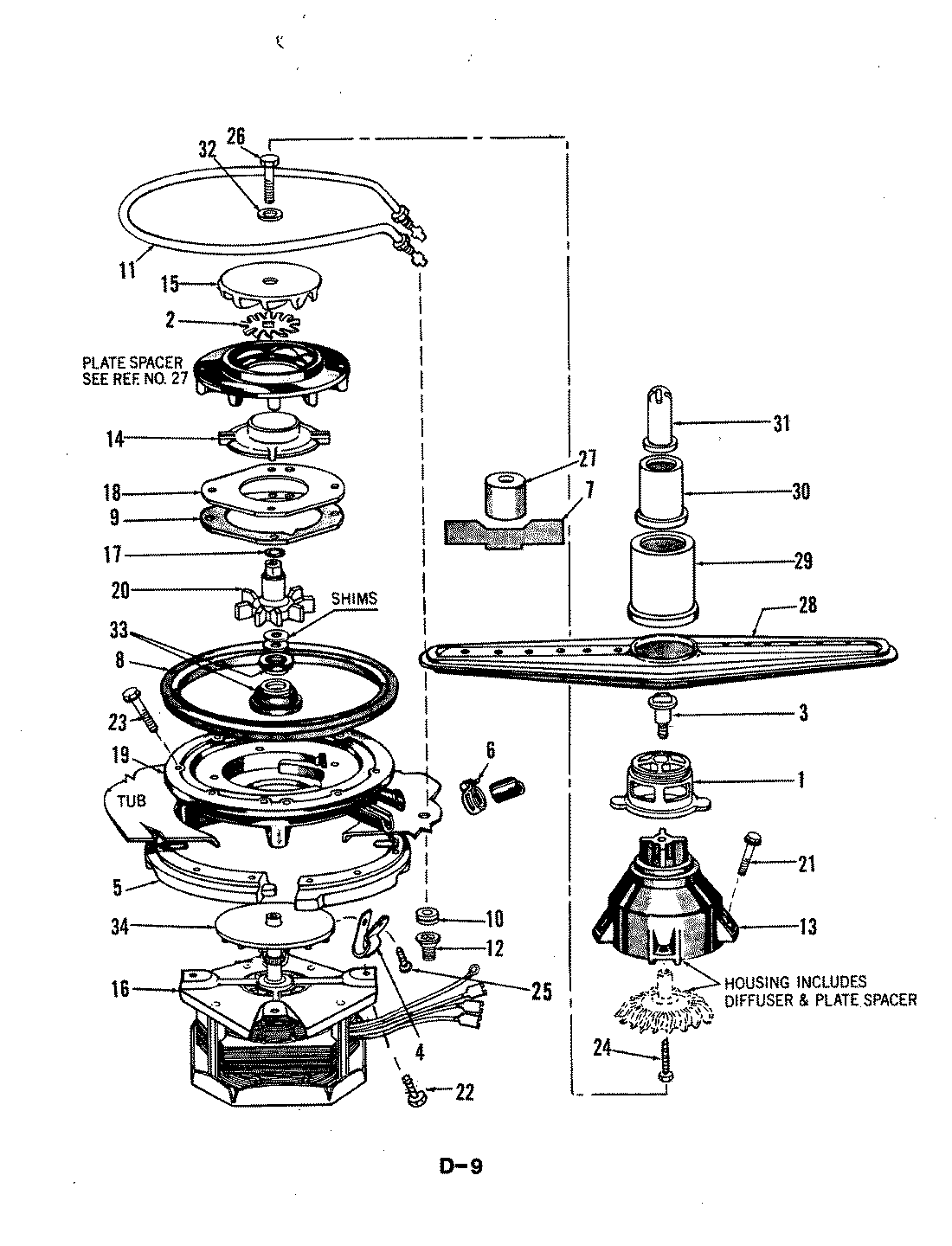

DU24D2A 05 – MOTOR & PUMP (DU24D2A)

Products

Position	Product
1	MAY 806353
2	MAY 803367
3	HEATER
4	UPPER IMPELLER
5	MACERATOR BLADE
6	SHROUD
7	PUMP PLATE
8	GASKET
9	O RING
10	PUMP SEAL KIT
11	GASKET
12	PUMP GASKET
13	MAY 807268
14	MAY 809059
15	CLAMP RING
16	WATER SHLD, FAN
17	RING
18	MOTOR
19	SEAL TOOL
20	SHIM GAUGE
21	SCREW
22	MAY 808186
23	GROMMET
24	NUT
25	MAY 807270
26	WIRE CLAMP
27	IMPELR HSG KIT
28	SCREW
29	MAY 809046
30	SPRAY ARM BOLT
31	MAY 808177
32	TOWER BASE
33	MAY 808179
34	MAY 808180
35	MAY 809022
