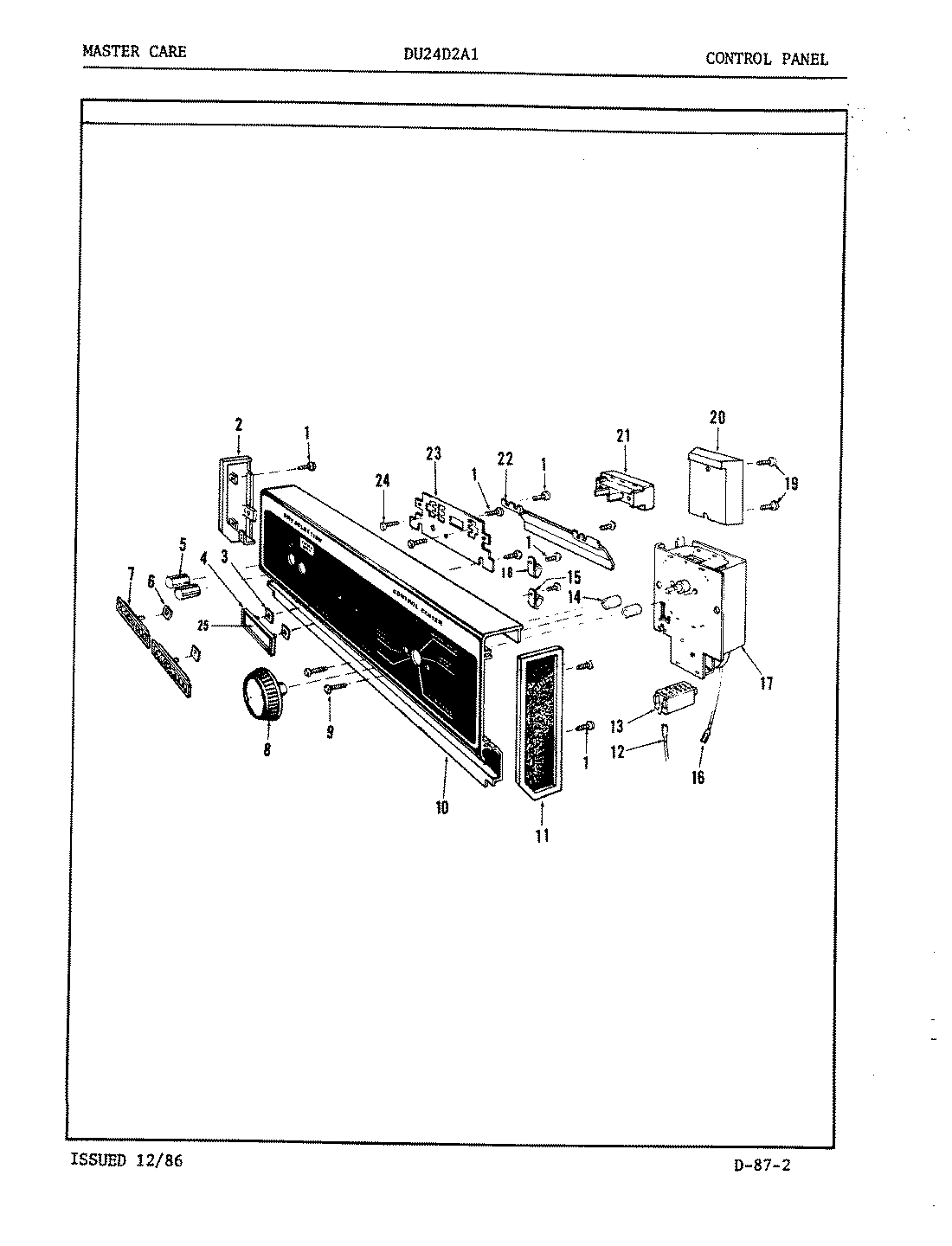

DU24D2A1 02 – CONTROL PANEL

Products

Position	Product
1	MAY 809175
2	LH ENDCAP
3	MAY 807970
4	MAY 808713
5	PUSH BUTTON
6	MAY 808475
7	VENT TRIM
8	MAY 807094
9	SCREW
10	MAY 809128
11	RH ENDCAP
12	MAY 808333
13	RH TIMER HOUSNG
14	SPACER
15	WIRE CLAMP
16	TERMINAL
17	TIMER
18	MAY 805584
19	SCREW
20	MAY 807425
21	MAY 807281
22	SWITCH GUARD
23	MAY 806594
24	MAY 807141
25	MAY 808717
25	MAY 808719
25	MAY 808720
25	MAY 808721
25	MAY 808766
