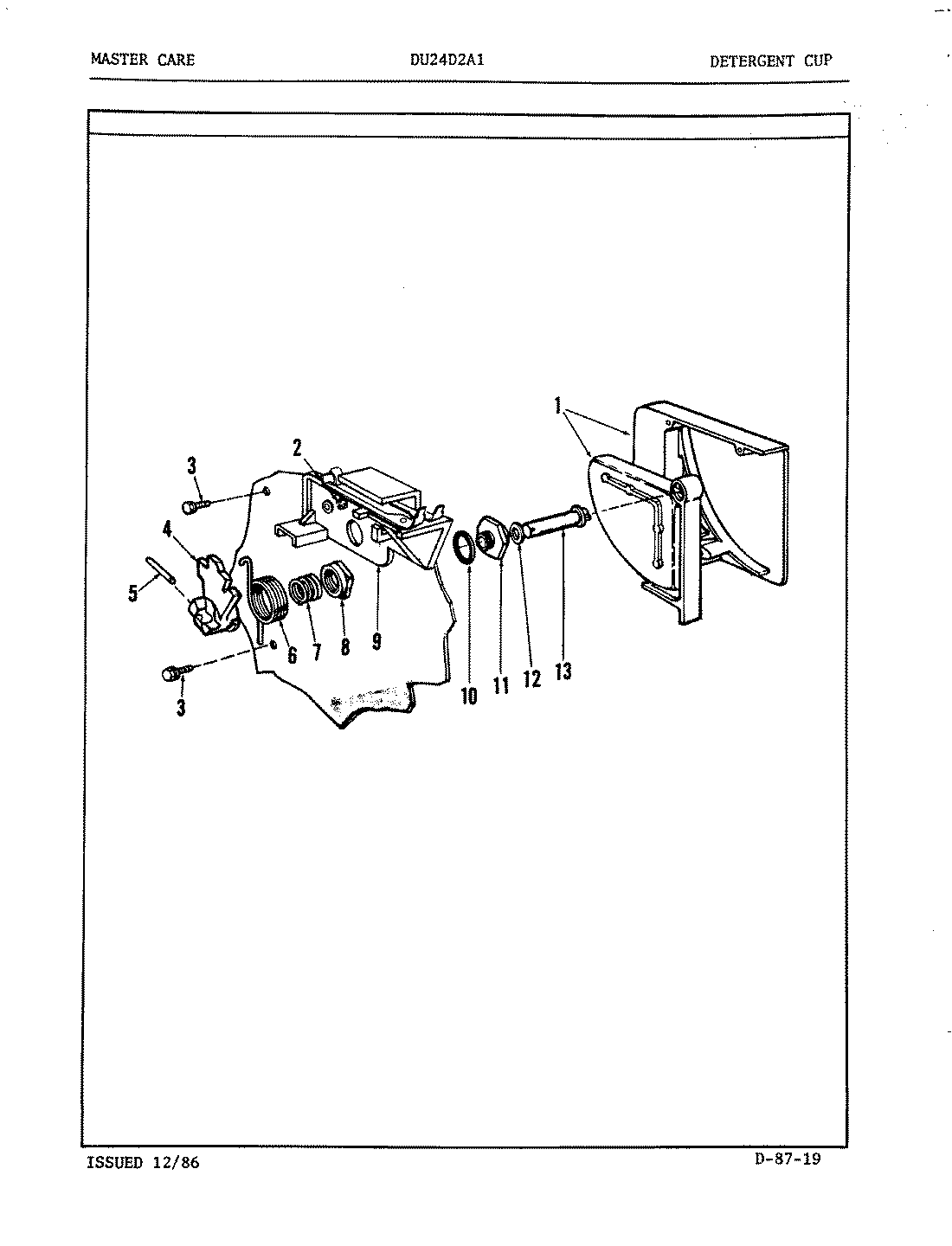

DU24D2A1 03 – DETERGENT CUP
Products
| Position | Product |
|---|---|
| 1 | DETRG CUP KIT |
| 2 | O RING |
| 3 | SCREW |
| 4 | MAY 806566 |
| 5 | ROLL PIN |
| 6 | SPRING |
| 7 | SPRING |
| 8 | NUT |
| 9 | DET CUP TRIGGER |
| 10 | GASKET |
| 11 | MAY 805626 |
| 12 | O RING |
| 13 | SHAFT KIT |
DU24D2A1 03 – DETERGENT CUP
| Position | Product |
|---|---|
| 1 | DETRG CUP KIT |
| 2 | O RING |
| 3 | SCREW |
| 4 | MAY 806566 |
| 5 | ROLL PIN |
| 6 | SPRING |
| 7 | SPRING |
| 8 | NUT |
| 9 | DET CUP TRIGGER |
| 10 | GASKET |
| 11 | MAY 805626 |
| 12 | O RING |
| 13 | SHAFT KIT |
