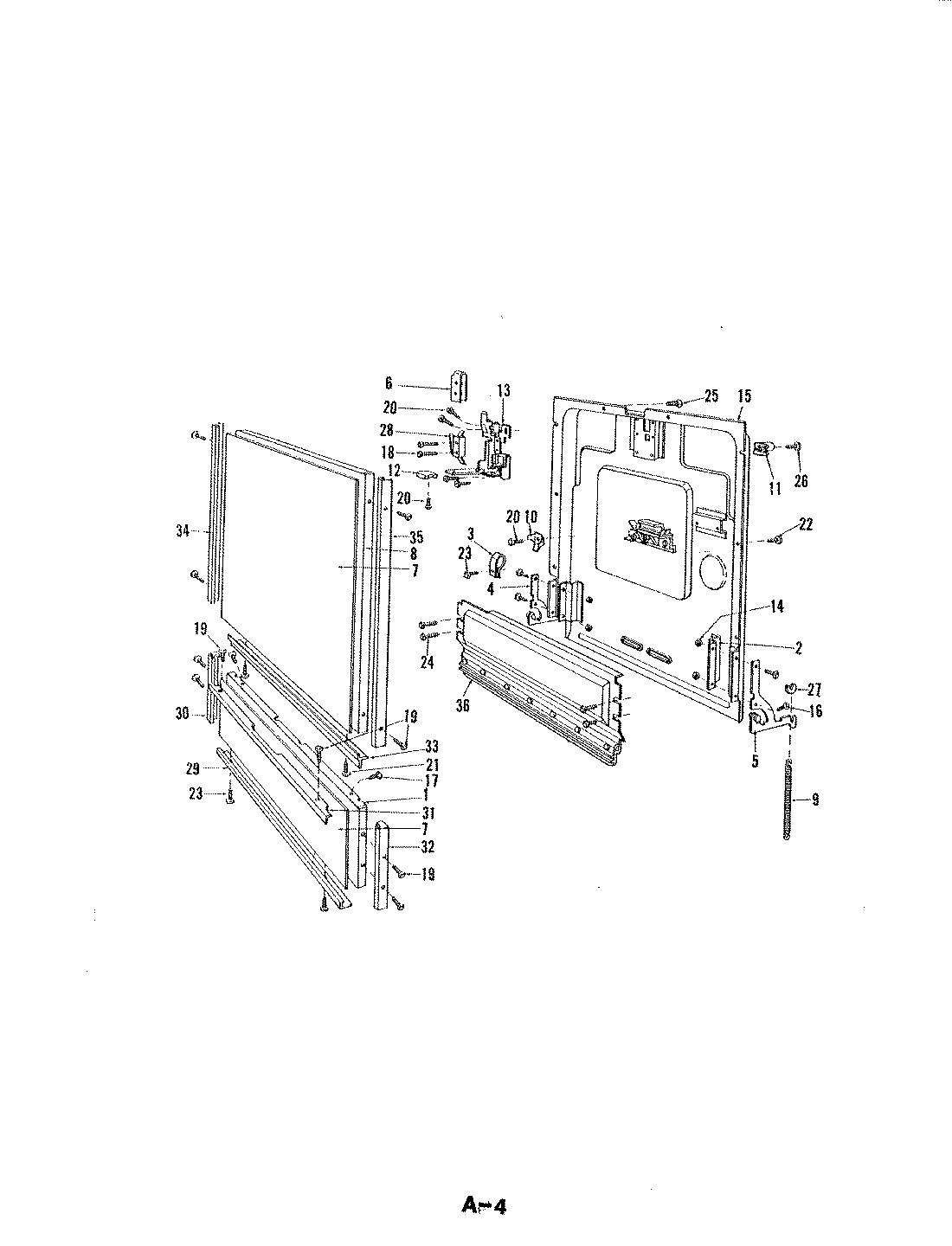

DU24D2AC 03 – DOOR

Products

Position	Product
1	ACCESS PANEL
2	ARM BRACKET
3	WIRE CLAMP
4	LH ARM
5	RH ARM
6	SWITCH COVER
7	PANEL INSERT
8	OUTER PANEL
9	DOOR SPRING
10	GROUND TERMINAL
11	DOOR GUIDE
12	MAY 806398
13	LATCH ASM
14	LOCKNUT
15	INNER PANEL
16	MAY 803311
17	MAY 808658
18	MAY 808618
19	MAY 807293
20	SCREW
21	MAY 807501
22	SCREW
23	SCREW
24	SCREW
25	SCREW
26	MAY 808749
27	SPRING PAD
28	MAY 807043
29	BOTTOM TRIM
30	LH TRIM
31	ACC PNL TRIM
32	RH TRIM
33	DOOR TRIM
34	DOOR TRIM
35	DOOR TRIM
36	VENT BAFFLE
