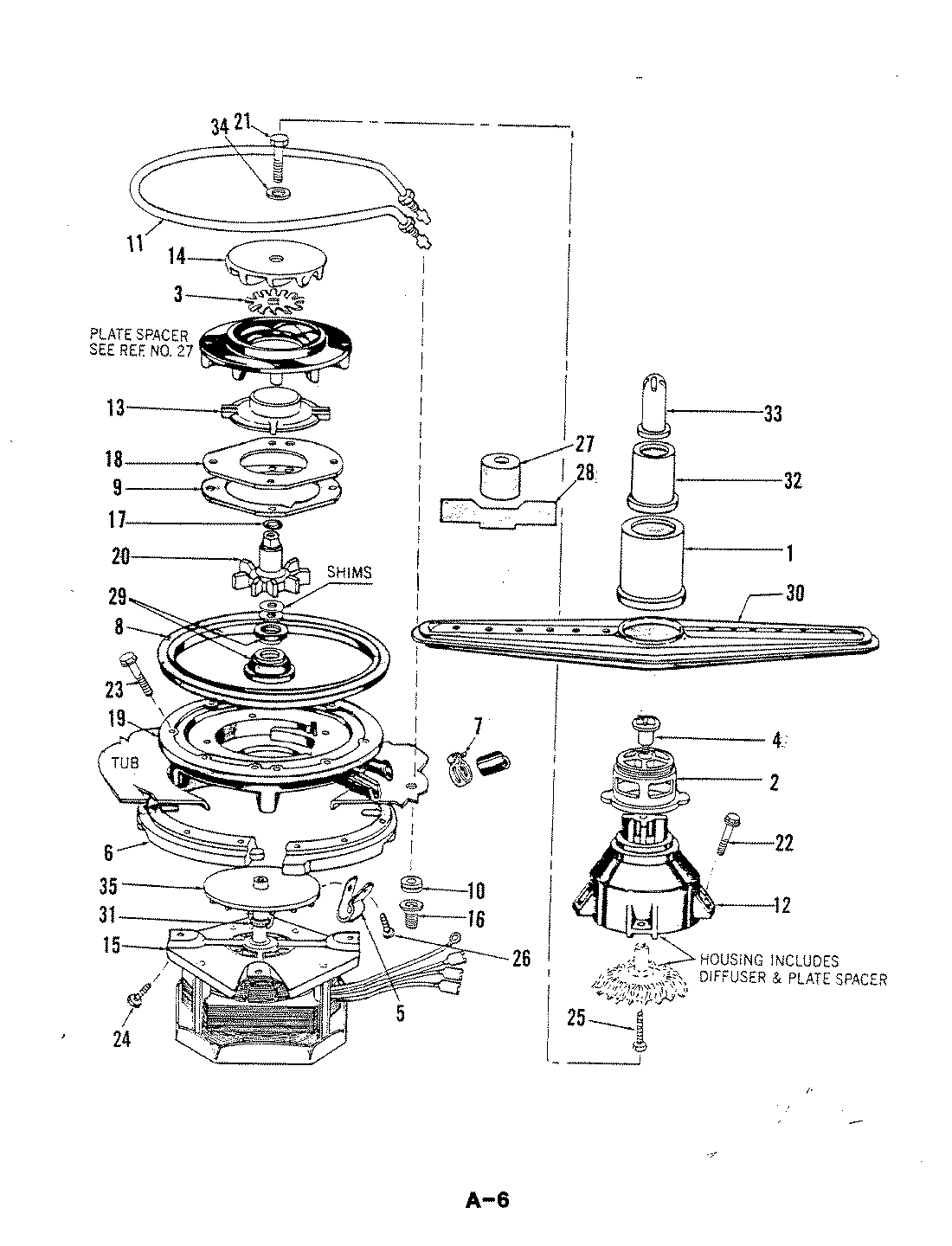

DU24D2AC 05 – MOTOR & PUMP

Products

Position	Product
1	TOWER BASE
2	MAY 809046
3	MACERATOR BLADE
4	SPRAY ARM BOLT
5	WIRE CLAMP
6	CLAMP RING
7	MAY 808186
8	PUMP GASKET
9	GASKET
10	GROMMET
11	HEATER
12	IMPELR HSG KIT
13	SHROUD
14	UPPER IMPELLER
15	MOTOR
16	NUT
17	O RING
18	PUMP PLATE
19	MAY 809059
20	PUMP SEAL KIT
21	MAY 806353
22	SCREW
23	MAY 807268
24	MAY 809022
25	SCREW
26	MAY 807270
27	SEAL TOOL
28	SHIM GAUGE
29	GASKET
30	MAY 808177
31	RING
32	MAY 808179
33	MAY 808180
34	MAY 803367
35	WATER SHLD, FAN
