DU24D2AC 07 – TUB – Aparts

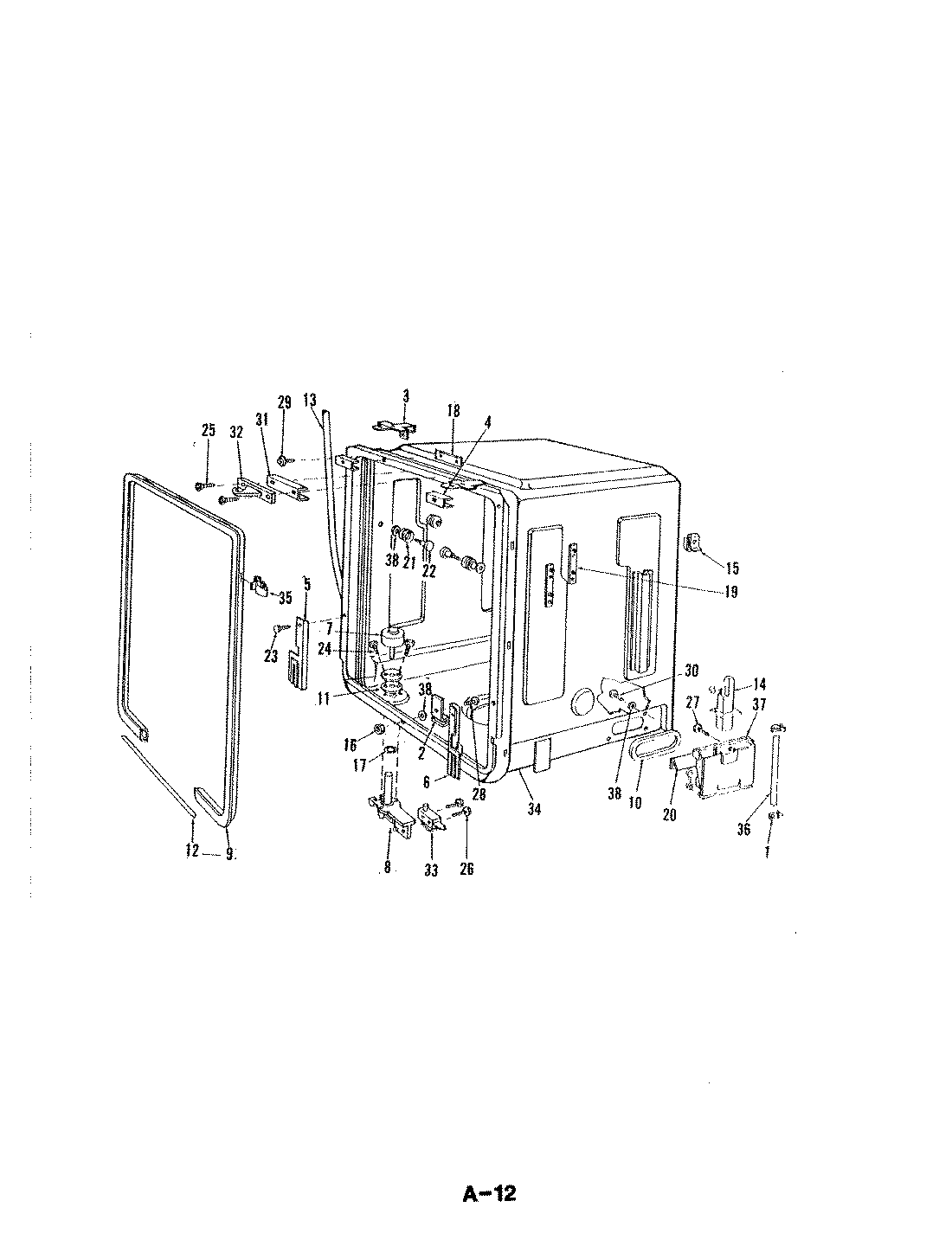

DU24D2AC 07 – TUB

Products

Position	Product
1	MAY 807813
2	MAY 808115
3	CLIP
4	MAY 808366
5	LH GUIDE
6	RH GUIDE
7	MAY 804630
8	FLOAT ASM
9	WHITE GASKET
10	GASKET
11	GASKET
12	WIRE,GASKT JUNC
13	DRAIN HOSE
14	INLET NOZZLE
15	MAY 806291
16	MAY 803346
17	PLATE, FLOAT TUBE
17	O RING
18	TAPPING PLATE
19	TAPPING PLATE
20	MAY 808705
21	ROLLER
22	HARDWARE KIT
23	MAY 806539
24	MAY 807268
25	MAY 806890
26	BOLT
27	SCREW
28	MAY 803319
29	MAY 806976
30	SCREW
31	STRIKE SHIM
32	STRIKE
33	FLOAT SWITCH
34	TUB & GASKET
35	CLIP KIT (TUB GASKET)
36	INLET TUBE
38	MAY 808706
38	MAY 809044
