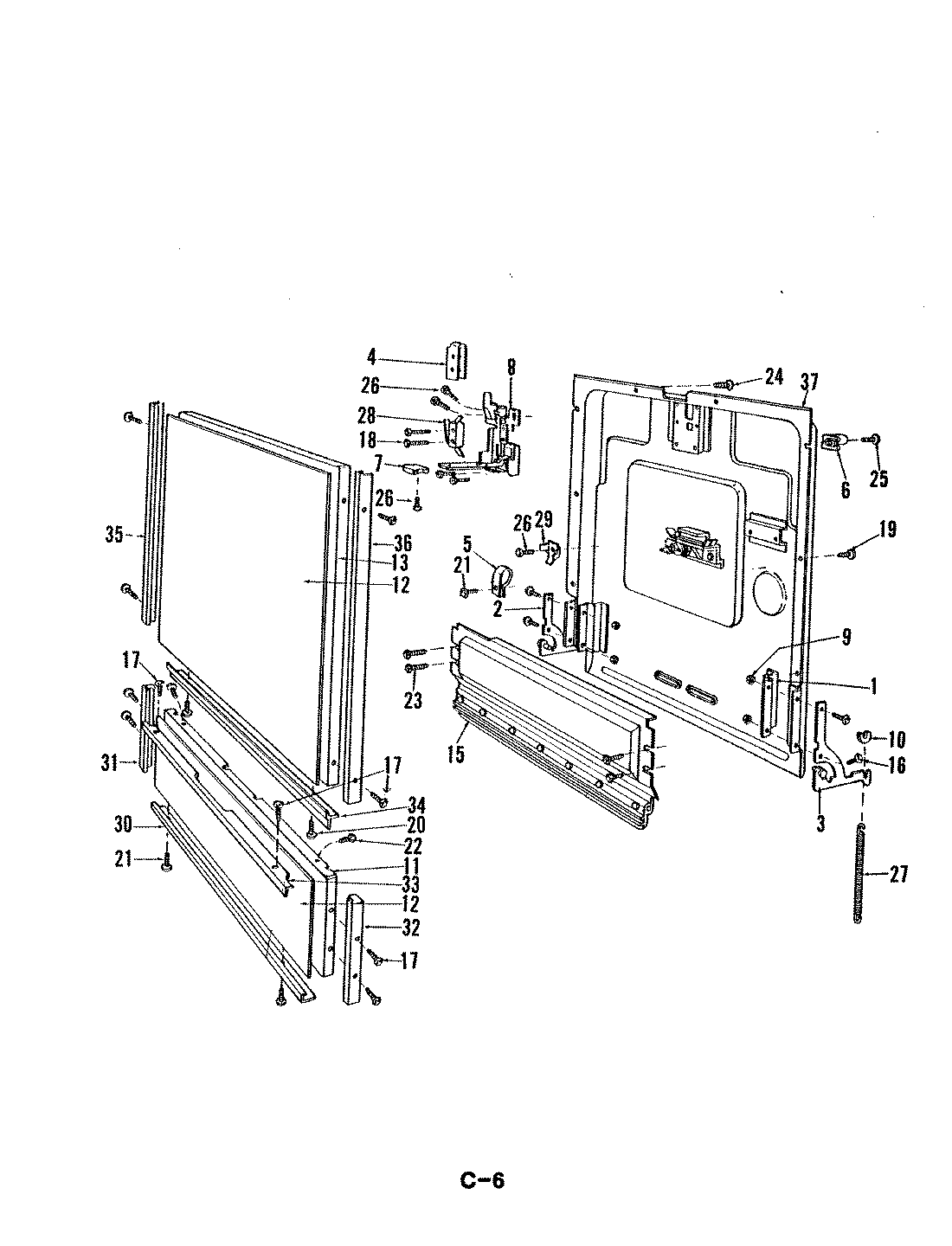

DU24D2AC-1 03 – DOOR

Products

Position	Product
1	ARM BRACKET
2	LH ARM
3	RH ARM
4	SWITCH COVER
5	WIRE CLAMP
5	DOOR INSERT
6	DOOR GUIDE
7	MAY 806398
8	LATCH ASM
9	LOCKNUT
10	SPRING PAD
11	ACCESS PANEL
12	DOOR TRIM
12	DOOR TRIM
12	ACC PNL INSERT
12	ACCESS DR PANEL
12	DOOR INSERT
12	DOOR TRIM
12	DOOR TRIM
13	OUTER PANEL
14	PANEL KIT, DOOR & ACCESS
15	VENT BAFFLE
16	MAY 803311
17	MAY 807293
18	MAY 808618
19	SCREW
20	MAY 807501
21	SCREW
22	MAY 808658
23	SCREW
24	SCREW
25	MAY 808749
26	SCREW
27	DOOR SPRING
28	MAY 807043
29	GROUND TERMINAL
30	BOTTOM TRIM
31	LH TRIM
32	RH TRIM
33	ACC PNL TRIM
