DU24D2AC-1 05 – MOTOR & PUMP

DU24D2AC-1 05 – MOTOR & PUMP

Written by

in

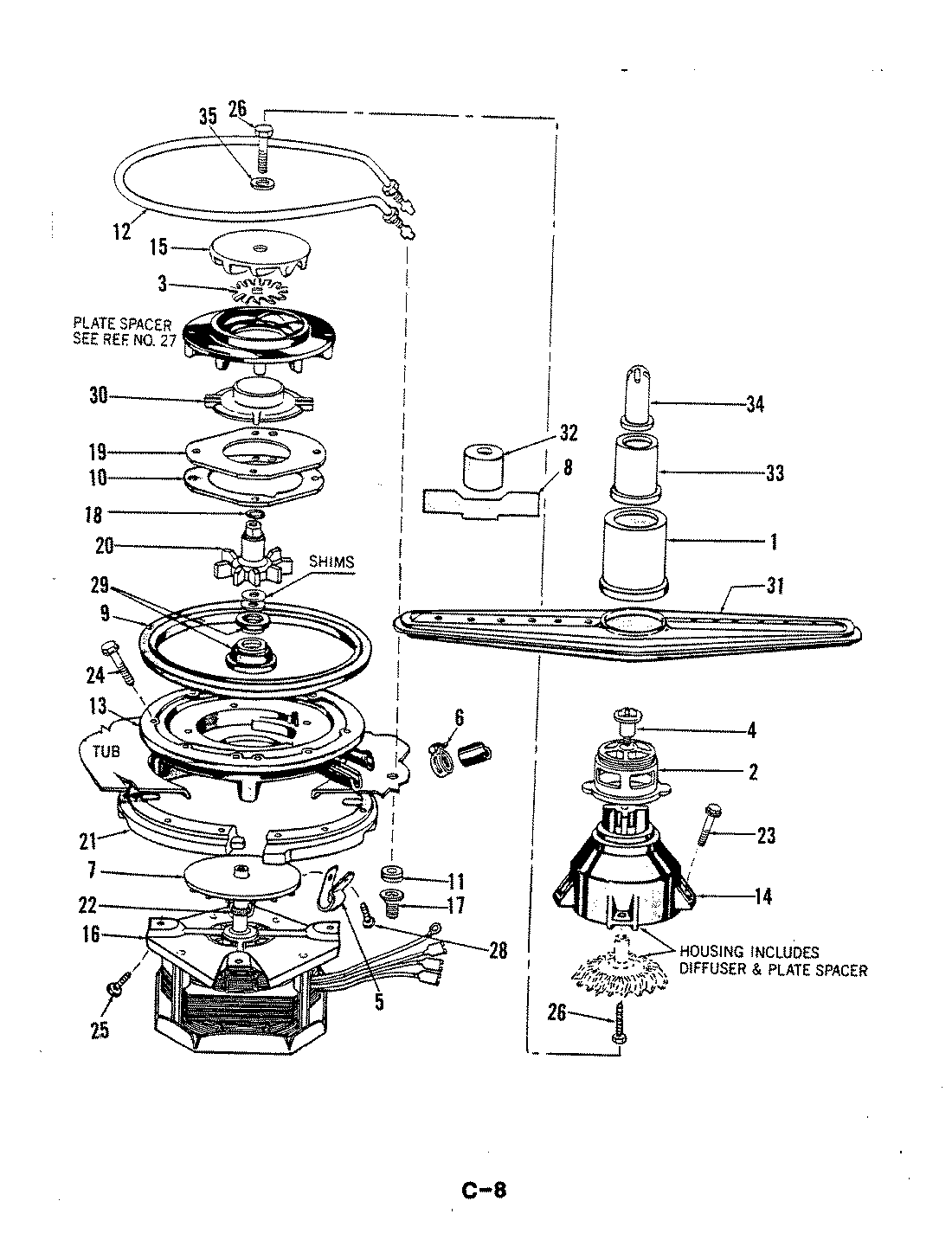

DU24D2AC-1 05 – MOTOR & PUMP

Products

Position	Product
1	TOWER BASE
2	MAY 809046
3	MACERATOR BLADE
4	SPRAY ARM BOLT
5	WIRE CLAMP
6	MAY 808186
7	WATER SHLD, FAN
8	SHIM GAUGE
9	PUMP GASKET
10	GASKET
11	GROMMET
12	HEATER
13	MAY 809059
14	IMPELR HSG KIT
15	UPPER IMPELLER
16	PUMP&MOTOR ASM
16	MOTOR
17	NUT
18	O RING
19	PUMP PLATE
20	PUMP SEAL KIT
21	CLAMP RING
22	RING
23	SCREW
24	MAY 807268
25	MAY 809022
26	MAY 806353
27	SCREW
28	MAY 807270
29	GASKET
30	SHROUD
31	MAY 808177
32	SEAL TOOL
33	MAY 808179
34	DOOR TRIM
34	MAY 808180
35	MAY 803367
35	DOOR TRIM
36	DOOR TRIM
37	INNER PANEL
