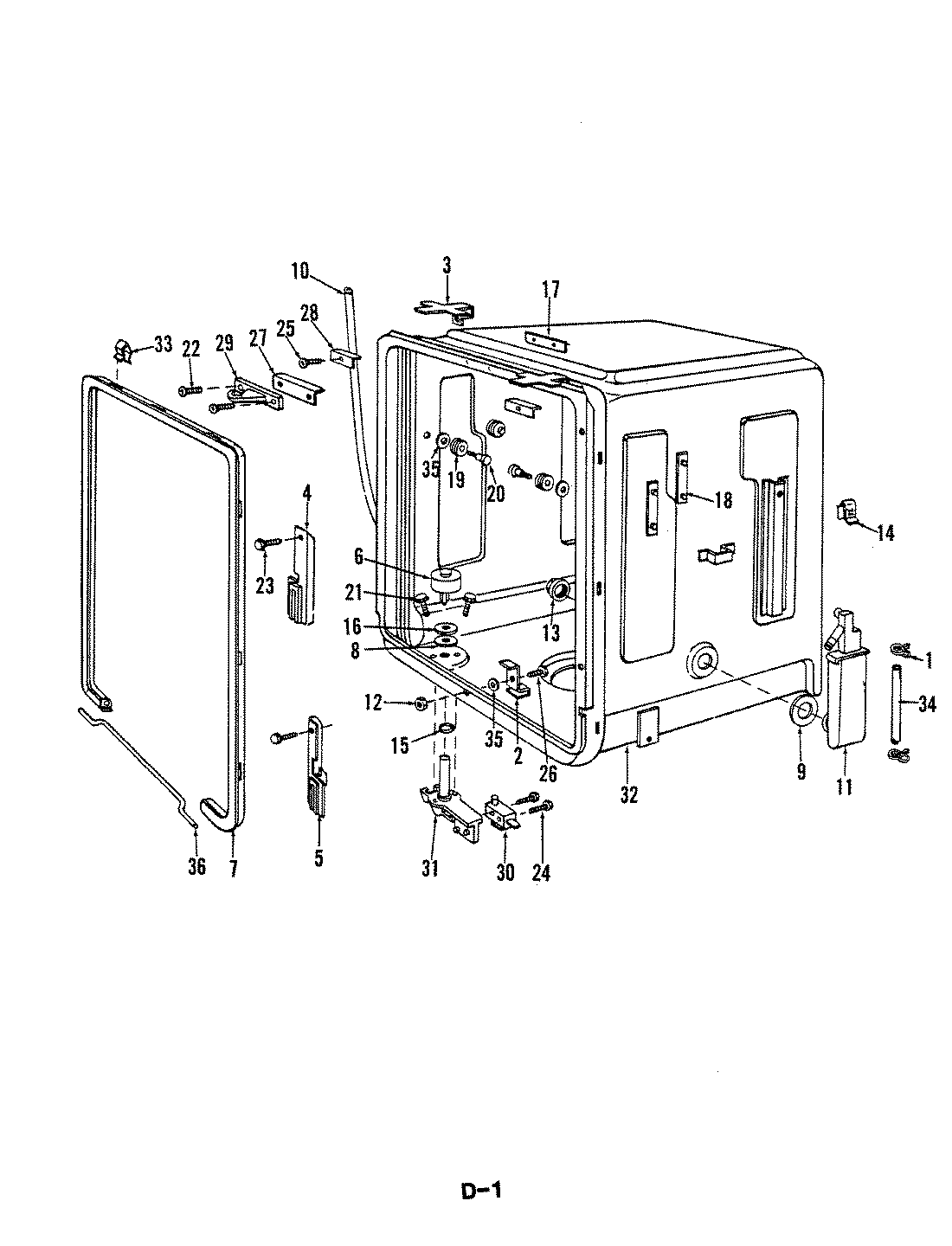

DU24D2AC-1 07 – TUB – Aparts

DU24D2AC-1 07 – TUB

Products

Position	Product
1	MAY 807813
2	MAY 808115
3	CLIP
4	LH GUIDE
5	RH GUIDE
6	MAY 804630
7	WHITE GASKET
8	GASKET
9	WASHER
10	DRAIN HOSE
11	MAY 806470
12	MAY 803346
13	MAY 805669
14	MAY 806291
15	O RING
16	PLATE, FLOAT TUBE
17	TAPPING PLATE
18	TAPPING PLATE
19	ROLLER
20	HARDWARE KIT
21	MAY 807268
22	MAY 806890
23	MAY 806539
24	BOLT
25	MAY 806976
26	MAY 803319
27	STRIKE SHIM
28	MAY 808366
29	STRIKE
30	FLOAT SWITCH
31	SEALANT
31	FLOAT ASM
32	MAY 809263
33	CLIP KIT (TUB GASKET)
34	INLET TUBE
35	MAY 809044
36	WIRE,GASKT JUNC
