DU24D6 03 – DOOR – Aparts

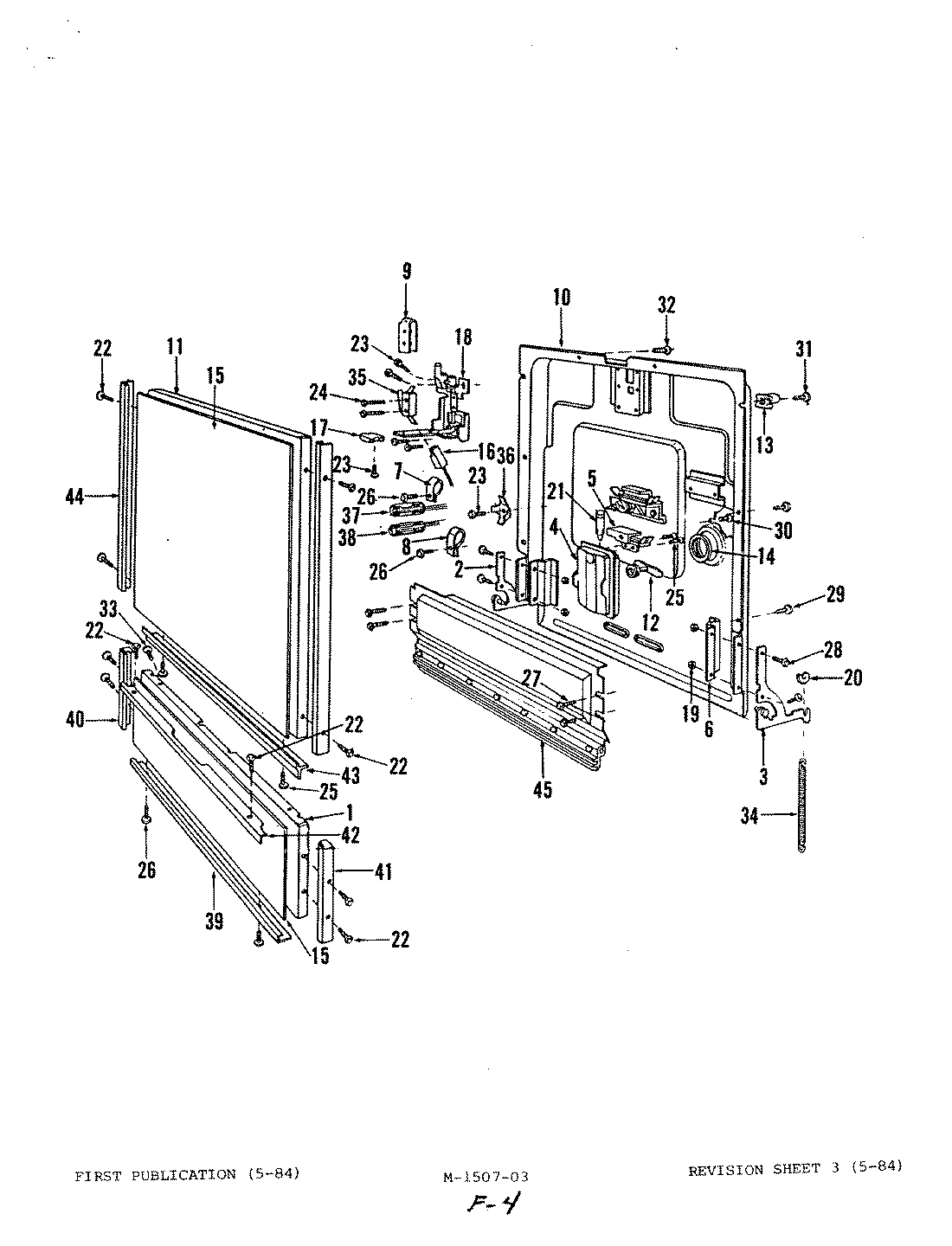

DU24D6 03 – DOOR

Products

Position	Product
1	PANEL
2	LH ARM
3	RH ARM
4	DISPENSER
5	BRACKET
6	ARM BRACKET
7	MAY 805584
8	WIRE CLAMP
9	SWITCH COVER
10	INNER PANEL
11	OUTER PANEL
12	FILL PLUG
13	DOOR GUIDE
14	GROMMET
15	PANEL INSERT
16	INSULATOR
17	KNOB
18	LATCH ASM
19	LOCKNUT
20	SPRING PAD
21	MAY 806757
22	MAY 807293
23	SCREW
24	MAY 808618
25	MAY 807501
26	SCREW
27	SCREW
28	MAY 803311
29	SCREW
30	SCREW
31	MAY 806976
32	SCREW
33	MAY 808658
34	DOOR SPRING
35	MAY 807043
36	GROUND TERMINAL
37	THERMOSTAT
38	THERMOSTAT
39	BOTTOM TRIM
40	LH TRIM
41	RH TRIM
42	ACC PNL TRIM
43	DOOR TRIM
44	DOOR TRIM
45	VENT BAFFLE
