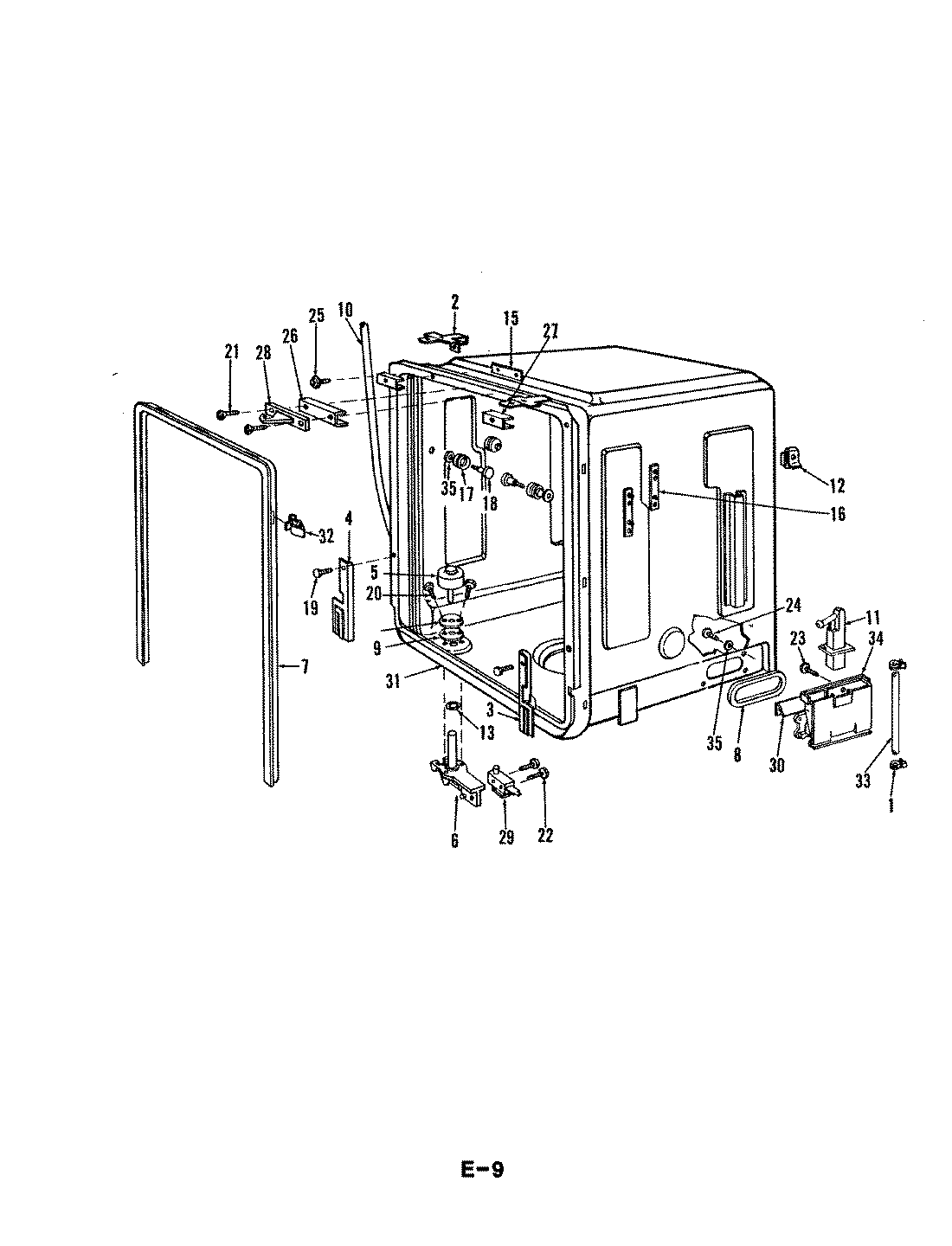

DU24D6A 07 – TUB (DU24D6A)

Products

Position	Product
1	TAPPING PLATE
2	CLIP
3	DRAIN HOSE
4	MAY 806976
5	STRIKE SHIM
6	STRIKE
7	MAY 806890
8	MAY 809074
9	MAY 808366
10	MAY 809044
11	ROLLER
12	HARDWARE KIT
13	LH GUIDE
14	MAY 804630
15	MAY 807268
16	PLATE, FLOAT TUBE
17	GASKET
18	MAY 806539
19	WHITE GASKET
20	TUB&GASKET ASM
21	RH GUIDE
22	O RING
23	FLOAT ASM
24	FLOAT SWITCH
25	BOLT
26	MAY 806291
27	TAPPING PLATE
28	SCREW
29	GASKET
30	SCREW
31	INLET NOZZLE
32	MAY 808706
33	INLET TUBE
34	MAY 807813
35	MAY 808705
