DU24D6AC 03 – DOOR

DU24D6AC 03 – DOOR

Written by

in

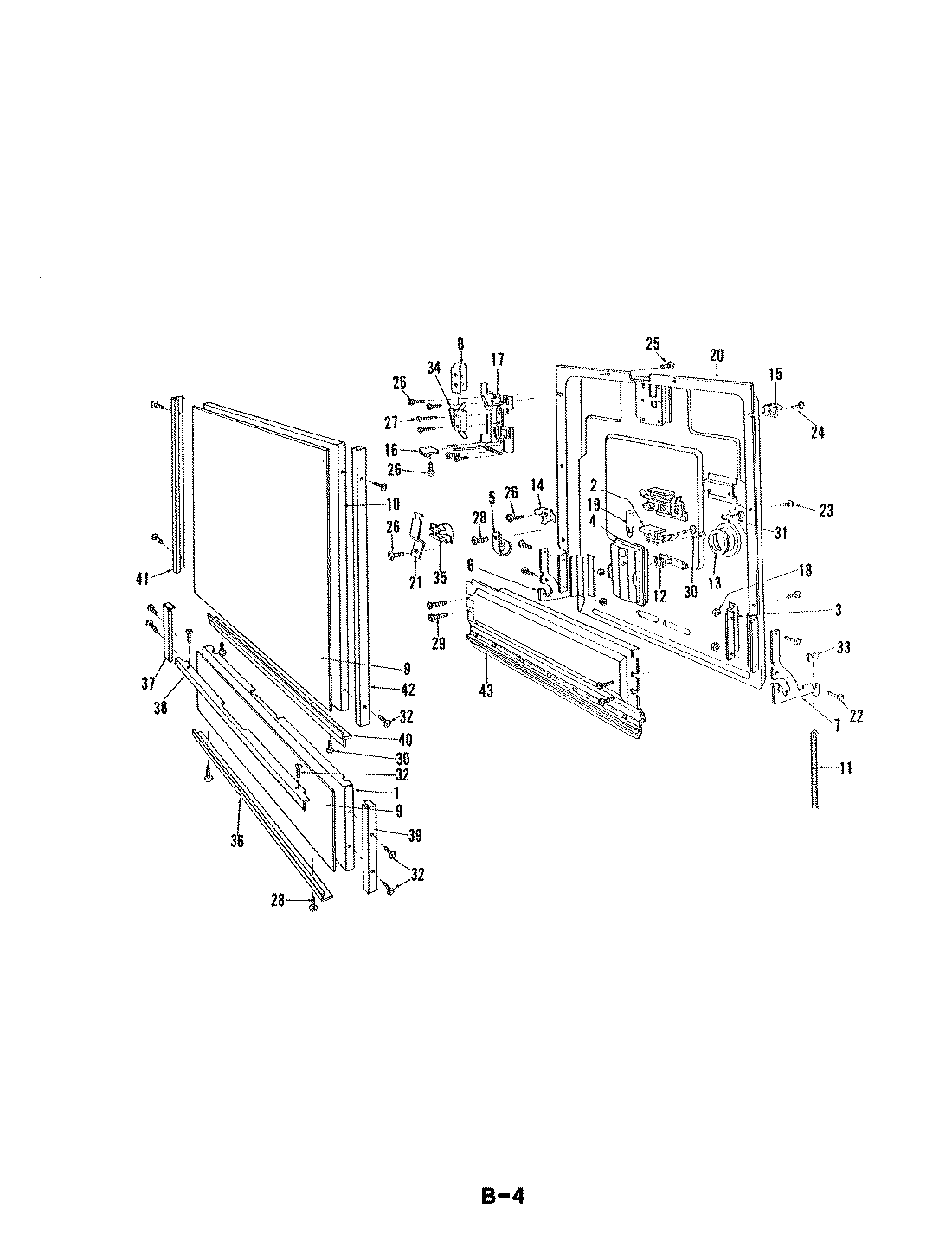

DU24D6AC 03 – DOOR

Products

Position	Product
1	ACCESS PANEL
2	BI-METAL ASM
3	ARM BRACKET
4	DISPENSER
5	WIRE CLAMP
6	LH ARM
7	RH ARM
8	SWITCH COVER
9	PANEL INSERT
10	OUTER PANEL
11	DOOR SPRING
12	MAY 807673
13	GROMMET
14	GROUND TERMINAL
15	DOOR GUIDE
16	MAY 806398
17	LATCH ASM
18	LOCKNUT
19	MAY 806757
20	INNER PANEL
21	RETAINER
22	MAY 803311
23	SCREW
24	MAY 808749
25	SCREW
26	SCREW
27	MAY 808618
28	SCREW
29	SCREW
30	MAY 807501
31	SCREW
32	MAY 807293
33	SPRING PAD
34	MAY 807043
35	THERMOSTAT
36	BOTTOM TRIM
37	LH TRIM
38	ACC PNL TRIM
39	RH TRIM
40	DOOR TRIM
41	DOOR TRIM
42	DOOR TRIM
43	VENT BAFFLE
