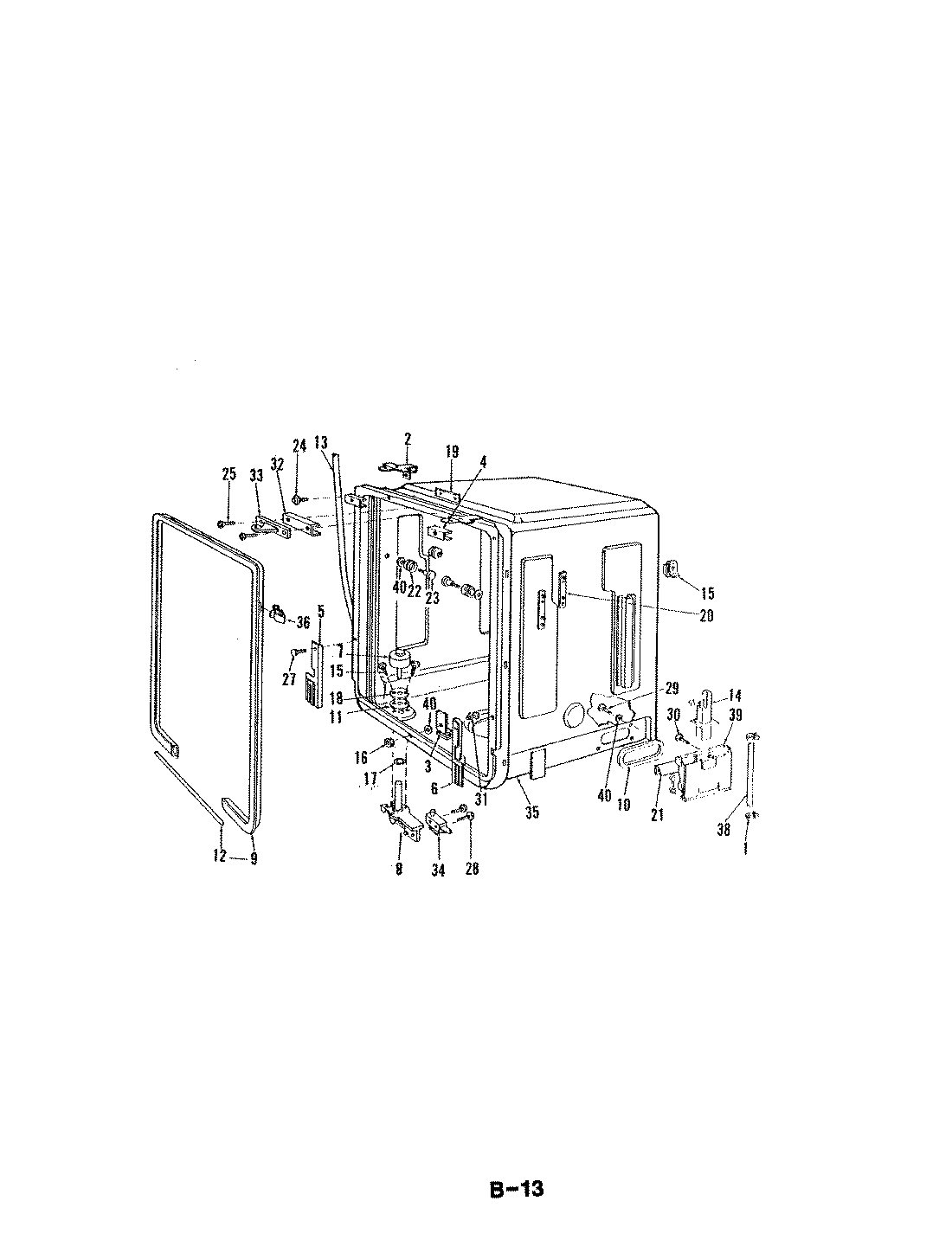

DU24D6AC 07 – TUB

DU24D6AC 07 – TUB

Written by

in

DU24D6AC 07 – TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	MAY 808366
5	LH GUIDE
6	RH GUIDE
7	MAY 804630
8	FLOAT ASM
9	WHITE GASKET
10	GASKET
11	GASKET
12	WIRE,GASKT JUNC
13	DRAIN HOSE
14	INLET NOZZLE
15	MAY 806291
16	MAY 803346
17	O RING
18	PLATE, FLOAT TUBE
19	TAPPING PLATE
20	TAPPING PLATE
21	MAY 808705
22	ROLLER
23	HARDWARE KIT
24	MAY 806976
25	MAY 806890
26	MAY 807268
27	MAY 806539
28	BOLT
29	SCREW
30	SCREW
31	MAY 803319
32	STRIKE SHIM
33	STRIKE
34	FLOAT SWITCH
35	TUB&GASKET ASM
36	CLIP KIT (TUB GASKET)
37	SEALANT
38	INLET TUBE
39	MAY 808706
40	MAY 809044
