DU24D6AC-1 03 – DOOR – Aparts

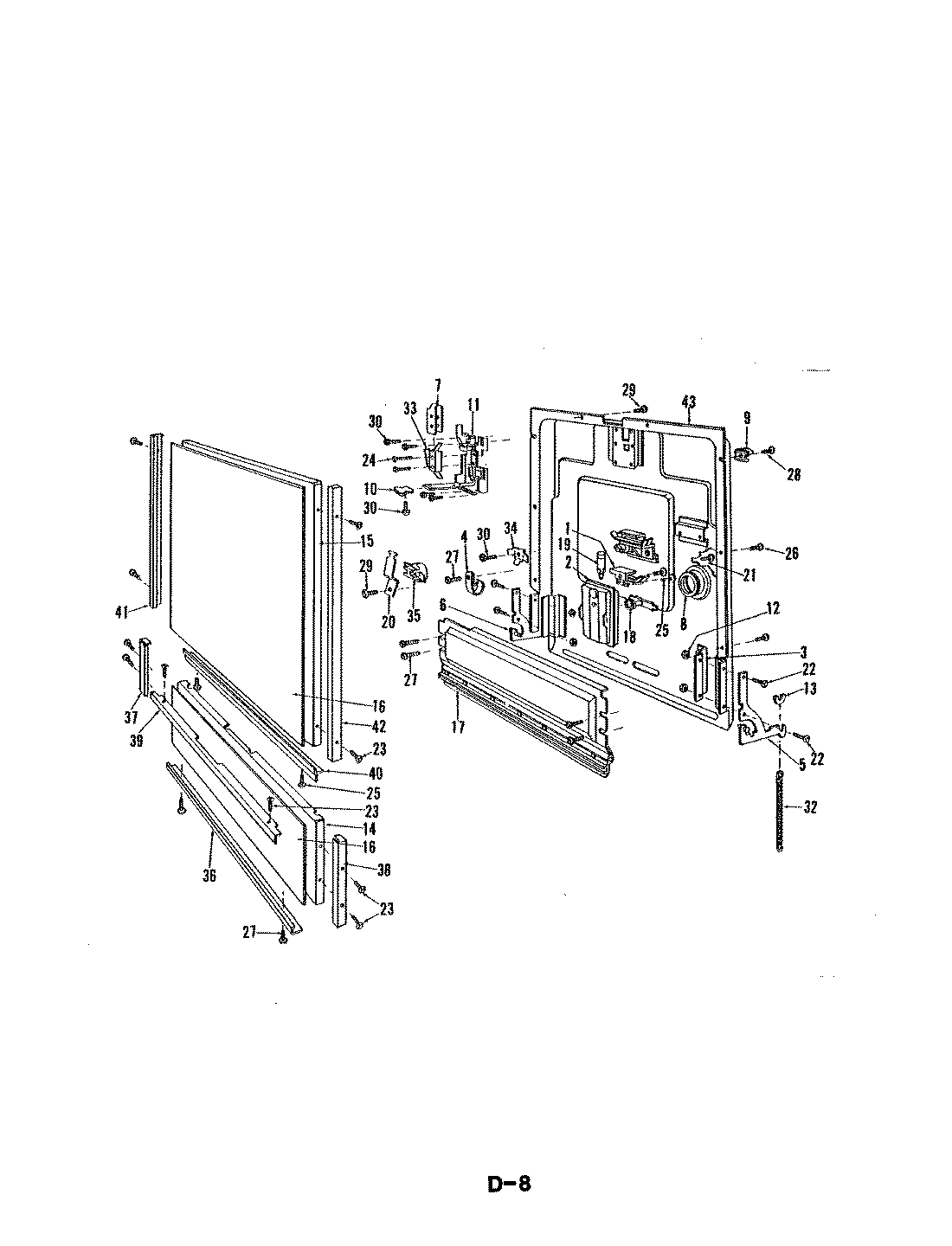

DU24D6AC-1 03 – DOOR

Products

Position	Product
1	BI-METAL ASM
2	DISPENSER
3	ARM BRACKET
4	WIRE CLAMP
5	RH ARM
6	LH ARM
7	BLACK DOOR KIT
7	SWITCH COVER
8	GROMMET
9	DOOR GUIDE
10	MAY 806398
11	LATCH ASM
12	LOCKNUT
13	SPRING PAD
14	ACCESS PANEL
15	OUTER PANEL
16	DOOR TRIM
16	DOOR TRIM
16	DOOR TRIM
16	DOOR TRIM
16	DOOR INSERT
16	ACC PNL INSERT
16	ACCESS DR PANEL
16	PANEL KIT, DOOR & ACCESS
17	VENT BAFFLE
18	FILL PLUG
19	MAY 806757
20	RETAINER
21	SCREW
22	MAY 803311
23	MAY 807293
24	MAY 808618
25	MAY 807501
26	SCREW
27	SCREW
28	MAY 808749
29	SCREW
30	SCREW
31	SCREW
32	DOOR SPRING
33	MAY 807043
34	GROUND TERMINAL
35	THERMOSTAT
36	BOTTOM TRIM
37	LH TRIM
38	RH TRIM
39	ACC PNL TRIM
40	DOOR TRIM
41	DOOR TRIM
42	DOOR TRIM
43	INNER PANEL
