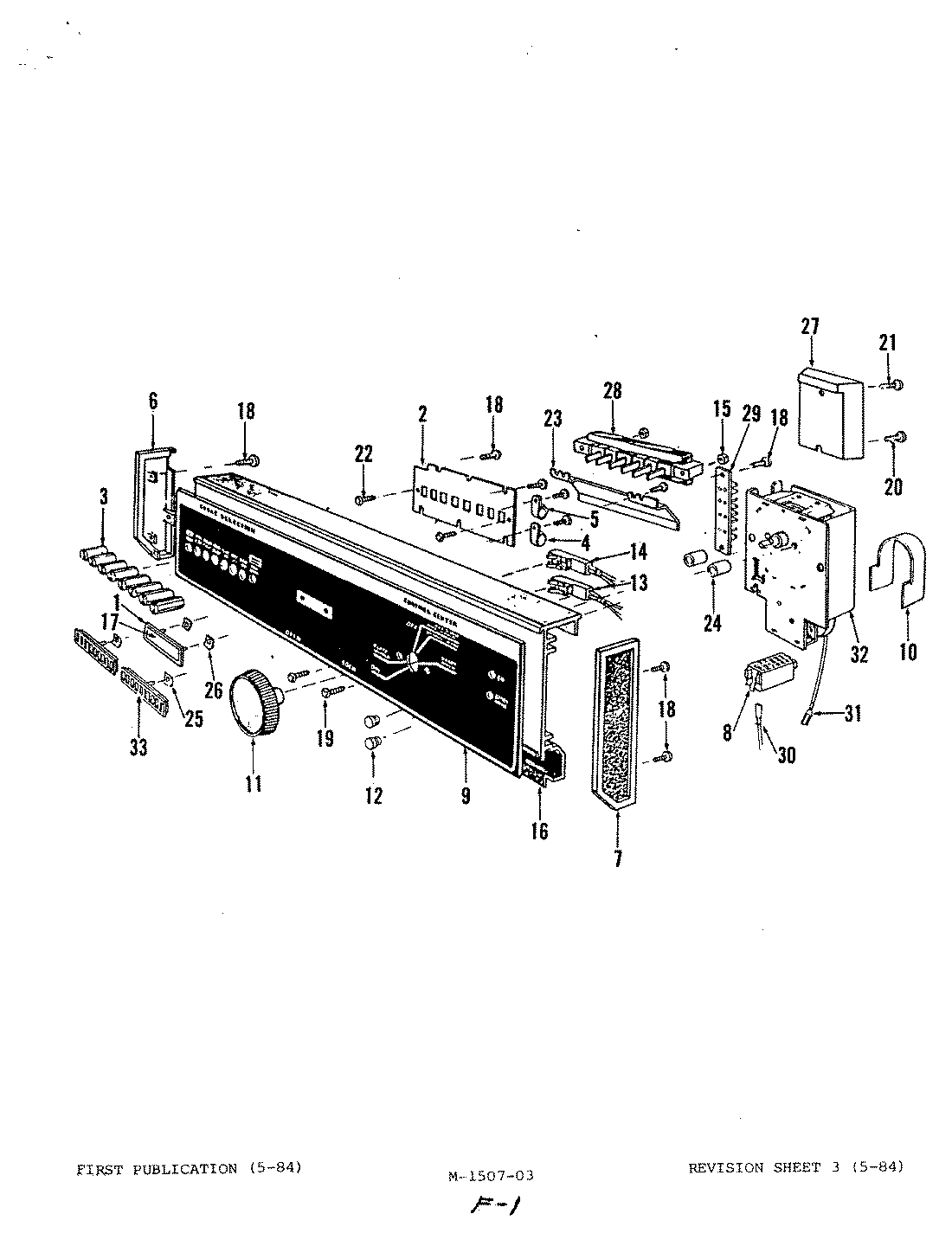

DU24D8 01 – CONTROL PANEL

Products

Position	Product
1	MAY 808713
2	MAY 807102
3	PUSH BUTTON
4	WIRE CLAMP
5	MAY 805584
6	LH END CAP
7	RH END CAP
8	RH TIMER HOUSNG
9	MAY 808734
10	INSULATOR
11	MAY 808730
12	MAY 807096
13	LIGHT ASM
14	LIGHT ASM
15	MAY 803346
16	MAY 808735
17	MAY 808720
17	MAY 808721
18	SCREW
19	SCREW
20	SCREW
21	SCREW
22	MAY 807103
23	SWITCH GUARD
24	SPACER
25	MAY 808475
26	MAY 807970
27	MAY 807425
28	MAY 808737
29	MAY 808483
30	MAY 808333
31	TERMINAL
32	MAY 808682
33	VENT TRIM
