DU24D8 04 – FRAME ASSEMBLY – Aparts

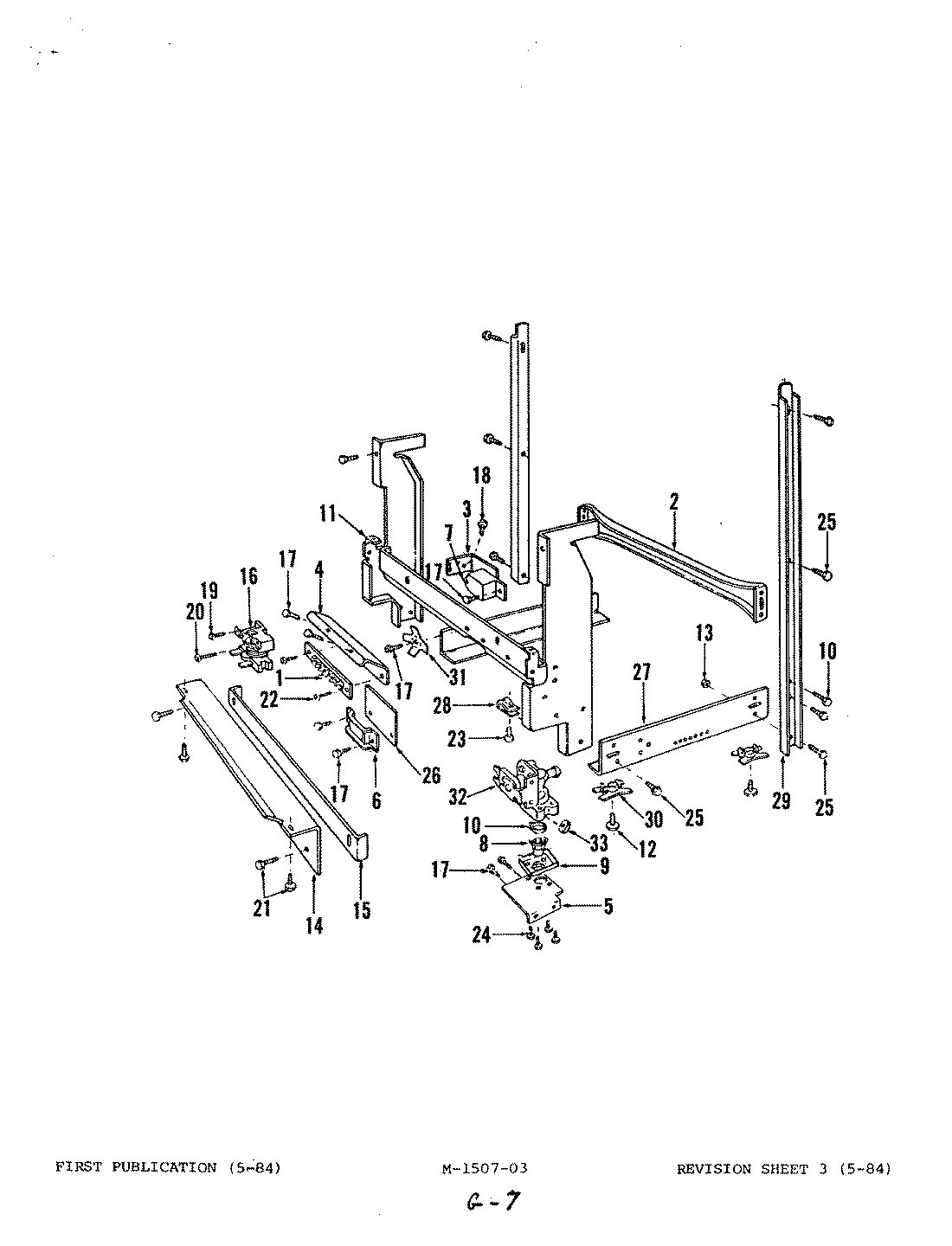

DU24D8 04 – FRAME ASSEMBLY

Products

Position	Product
1	MAY 807486
2	MAY 807852
3	BRACKET
4	MAY 807849
5	VALVE BRACKET
6	CLAMP
7	TERMINAL COVER
8	FITTING
9	RETAINER
10	MAY 806100
11	MAY 807848
12	MAY 807672
13	MAY 804619
14	TOE PLATE
15	TOE PLATE
16	RELAY
17	SCREW
18	MAY 807951
19	MAY 806593
20	MAY 804672
21	SCREW
22	MAY 807501
23	SCREW
24	SCREW
25	MAY 806889
26	WIRE SHIELD
27	SIDE CHANNEL
28	MAY 808170
29	MAY 808670
30	TEENUT
31	GROUND TERMINAL
32	INLET VALVE
33	FLOW WASHER
