DU24D8 05 – MOTOR, HEATER & SPRAY ARM

DU24D8 05 – MOTOR, HEATER & SPRAY ARM

Written by

in

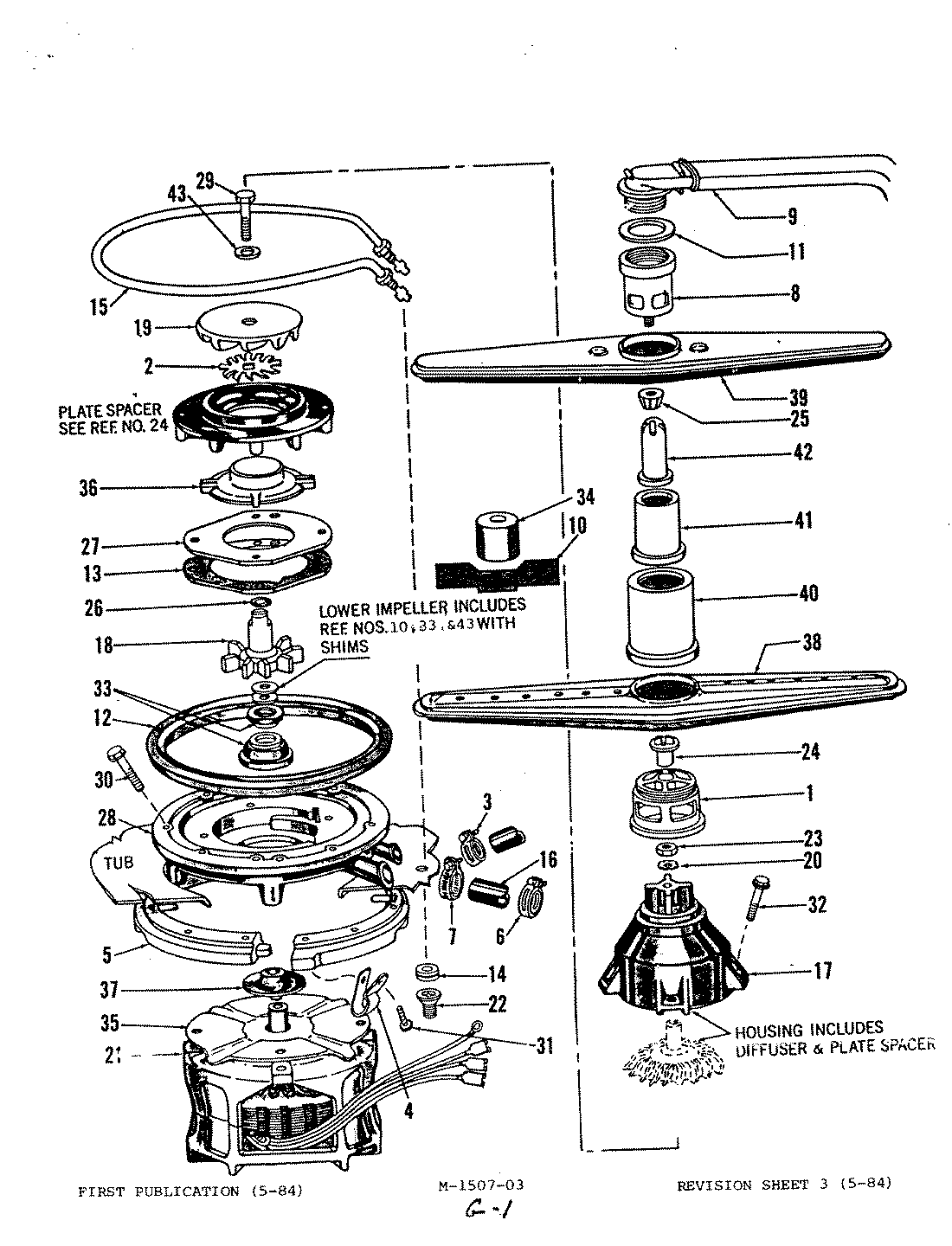

DU24D8 05 – MOTOR, HEATER & SPRAY ARM

Products

Position	Product
1	LOWER BEARING
2	MACERATOR BLADE
3	CLAMP
4	WIRE CLAMP
5	CLAMP RING
6	CLAMP
7	MAY 808186
8	MAY 808183
9	ELBOW & TUBE
10	SHIM GAUGE
11	MAY 808184
12	MAY 807710
13	GASKET
14	GROMMET
15	HEATER KIT
16	HOSE CONNECTOR
17	PUMPHOUSING KIT
18	IMPELLER KIT
19	UPPER IMPELLER
20	MAY 804526
21	MOTOR
22	NUT
23	MAY 804527
24	MAY 908176
25	MAY 808181
26	O RING
27	PUMP PLATE
28	PUMP HOUSING
29	MAY 806353
30	MAY 807268
31	MAY 807270
32	SCREW
33	GASKET
34	SEAL TOOL
35	MOTOR SHIELD
36	SHROUD
37	SLINGER
38	MAY 808177
39	UPR SPRAY ARM
40	TOWER BASE
41	MAY 808179
42	MAY 808180
43	MAY 803367
