DU24H2 03 – DOOR PARTS

DU24H2 03 – DOOR PARTS

Written by

in

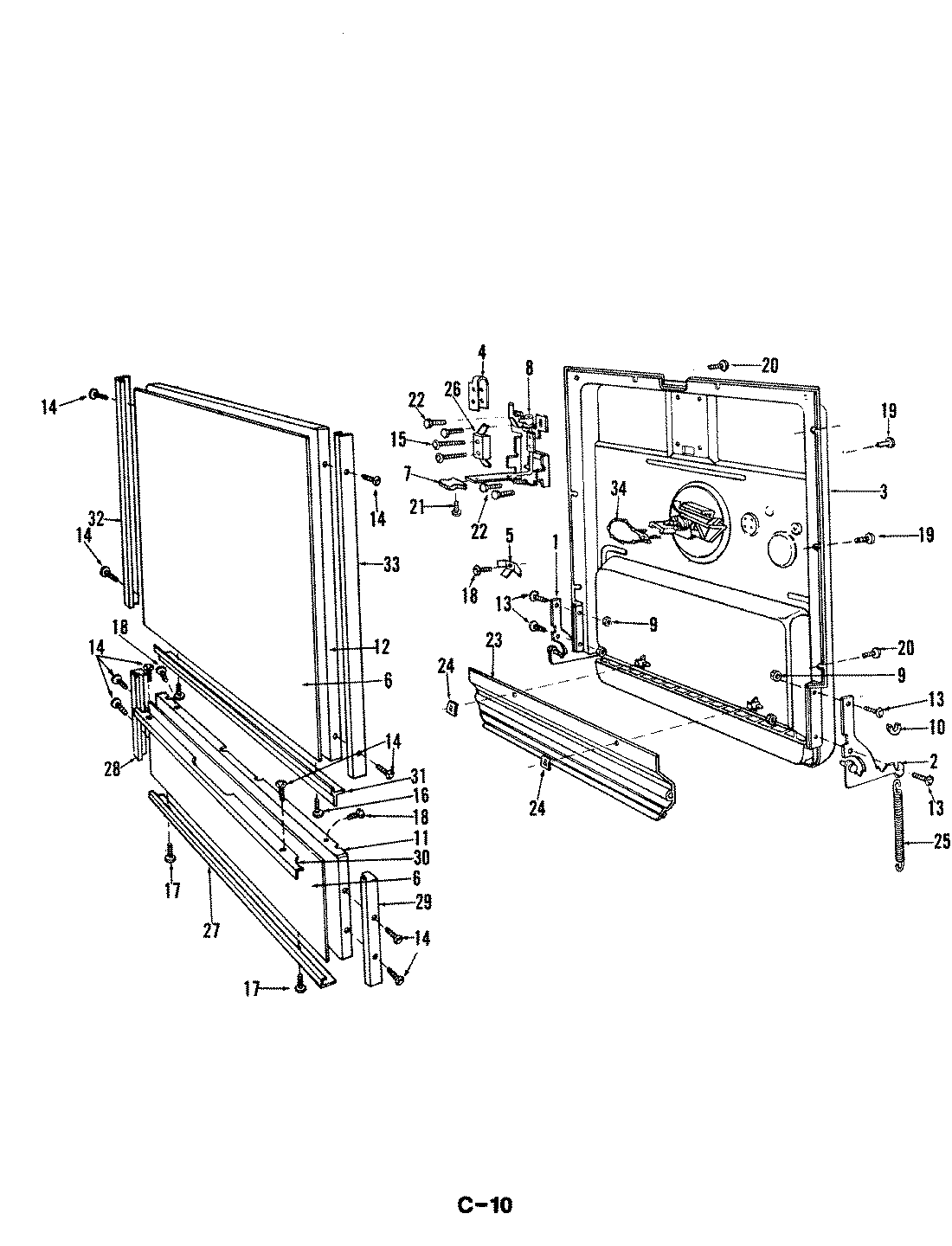

DU24H2 03 – DOOR PARTS

Products

Position	Product
1	LH ARM
2	RH ARM
3	MAY 809052
4	SWITCH COVER
5	GROUND TERMINAL
6	ACC PNL INSERT
7	MAY 806398
8	LATCH ASM
9	LOCKNUT
10	SPRING PAD
11	ACCESS PANEL
12	OUTER PANEL
13	MAY 803311
14	MAY 807293
15	MAY 808618
16	MAY 807501
17	SCREW
18	MAY 808658
19	MAY 808749
20	MAY 809055
21	MAY 809163
22	MAY 809029
23	MAY 809025
24	MAY 809026
25	DOOR SPRING
26	MAY 807043
27	BOTTOM TRIM
29	RH TRIM
30	ACC PNL TRIM
31	DOOR TRIM
32	DOOR TRIM
33	DOOR TRIM
34	WIRE TIE
34	BLACK DOOR KIT
