DU24H2 05 – MOTOR & PUMP

DU24H2 05 – MOTOR & PUMP

Written by

in

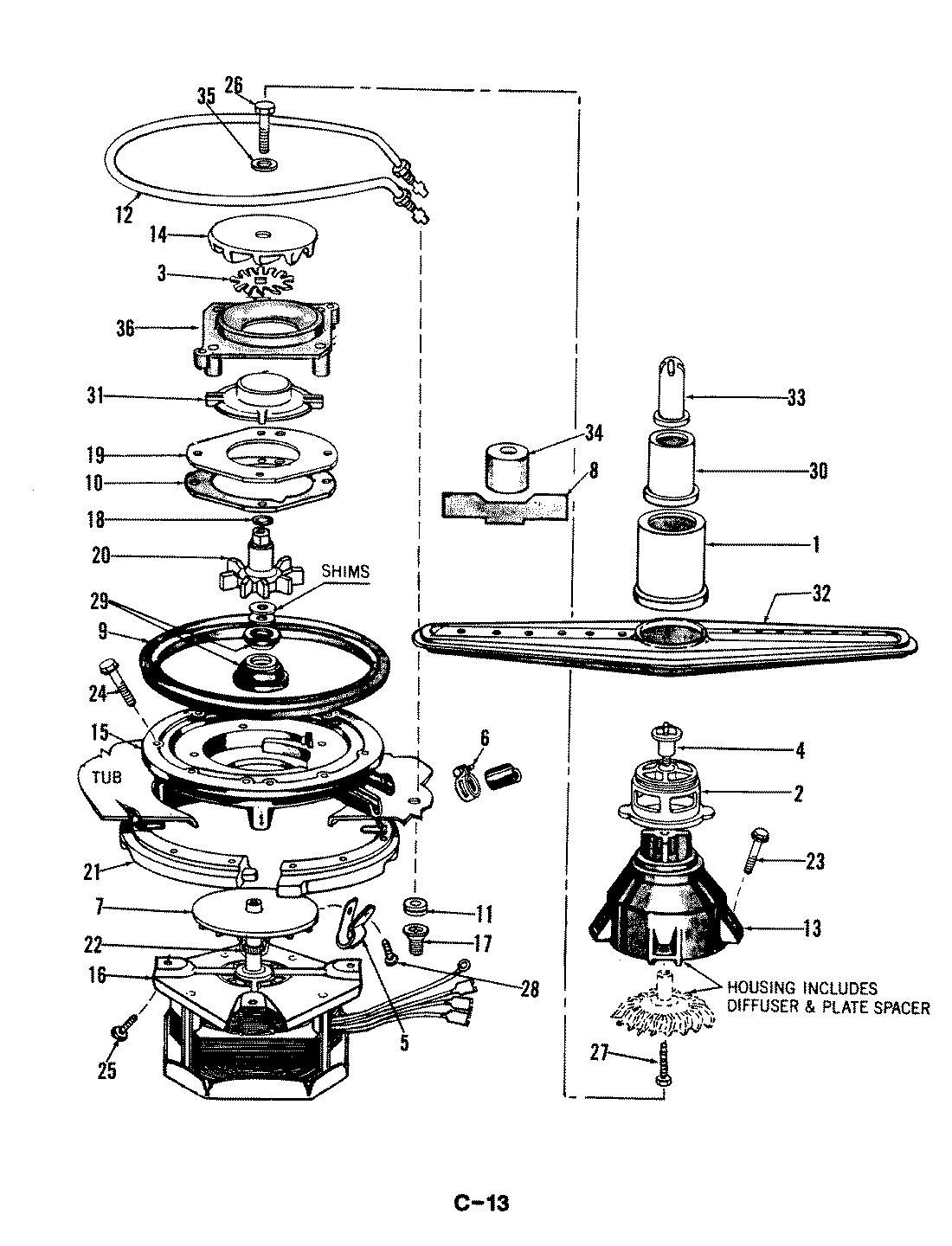

DU24H2 05 – MOTOR & PUMP

Products

Position	Product
1	TOWER BASE
2	MAY 809046
3	MACERATOR BLADE
4	SPRAY ARM BOLT
5	SCREW
6	MAY 808186
7	WATER SHLD, FAN
8	SHIM GAUGE
9	PUMP GASKET
10	GASKET
11	GROMMET
12	HEATER
13	IMPELR HSG KIT
14	UPPER IMPELLER
15	MAY 809059
16	MOTOR
17	NUT
18	O RING
19	PUMP PLATE
20	PUMP SEAL KIT
21	CLAMP RING
22	RING
23	SCREW
24	MAY 807268
25	MAY 809022
26	MAY 806353
27	SCREW
28	MAY 807270
29	GASKET
30	MAY 808179
31	SHROUD
32	MAY 808177
33	MAY 808180
34	SEAL TOOL
35	MAY 803367
36	SPACER PLATE
