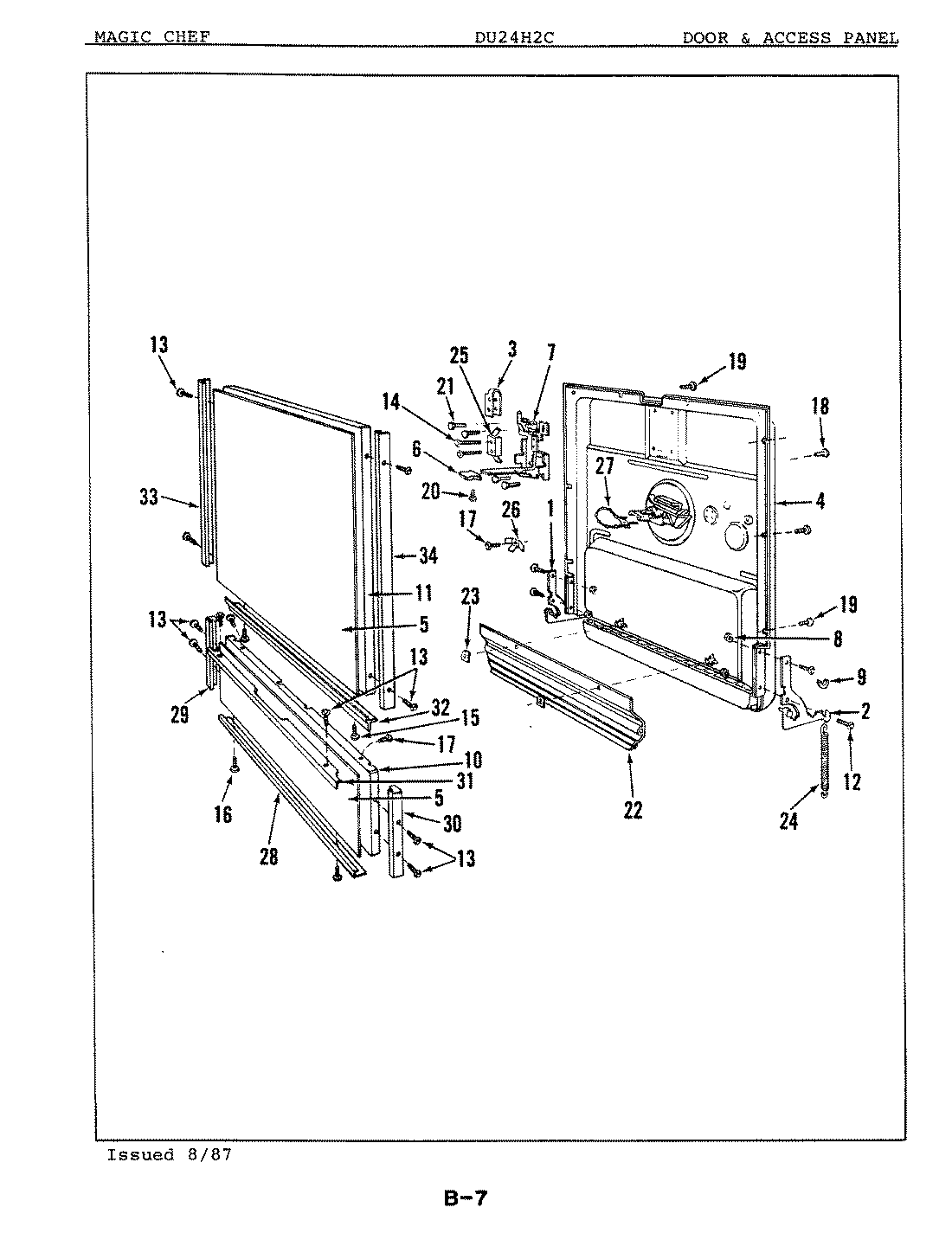

DU24H2C 04 – DOOR & ACCESS PANEL

Products

Position	Product
1	LH ARM
2	RH ARM
3	SWITCH COVER
4	MAY 809052
5	ACC PNL INSERT
6	MAY 806398
7	LATCH ASM
8	LOCKNUT
9	SPRING PAD
10	ACCESS PANEL
11	OUTER PANEL
12	MAY 803311
13	MAY 807293
14	MAY 808618
15	MAY 807501
16	SCREW
17	MAY 808658
18	MAY 808749
19	MAY 809055
20	MAY 809163
21	MAY 809029
22	MAY 809025
23	MAY 809026
24	DOOR SPRING
25	MAY 807043
26	GROUND TERMINAL
27	WIRE TIE
28	BOTTOM TRIM
29	LH TRIM
30	RH TRIM
31	ACC PNL TRIM
32	DOOR TRIM
33	DOOR TRIM
34	DOOR TRIM
