DU24H2C 05 – FRAME – Aparts

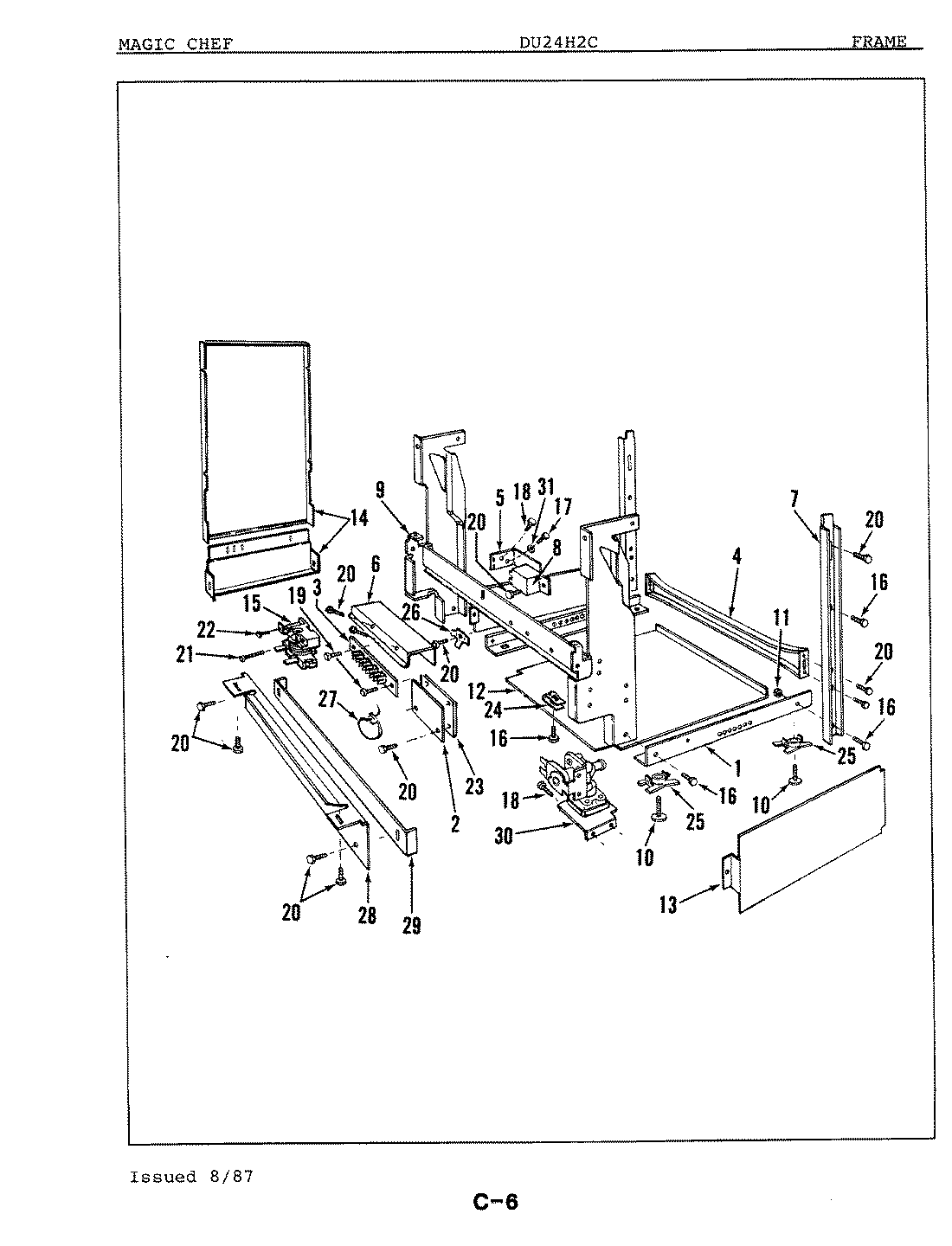

DU24H2C 05 – FRAME

Products

Position	Product
1	SIDE CHANNEL
2	MAY 809419
3	MAY 807486
4	MAY 807852
5	BRACKET
6	MAY 807849
7	MAY 808670
8	TERMINAL COVER
9	MAY 807848
10	MAY 807672
11	MAY 804619
12	MAY 808434
13	MAY 808433
14	SIDE PANEL KIT
15	RELAY
16	SCREW
17	MAY 807951
18	MAY 807950
19	MAY 807501
20	MAY 808658
21	MAY 804672
22	MAY 806593
23	WIRE SHIELD
24	MAY 808170
25	TEENUT
26	GROUND TERMINAL
27	MAY 809418
28	TOE PLATE
29	ADJ TOE PLATE
30	WATER VALVE
31	MAY 807373
