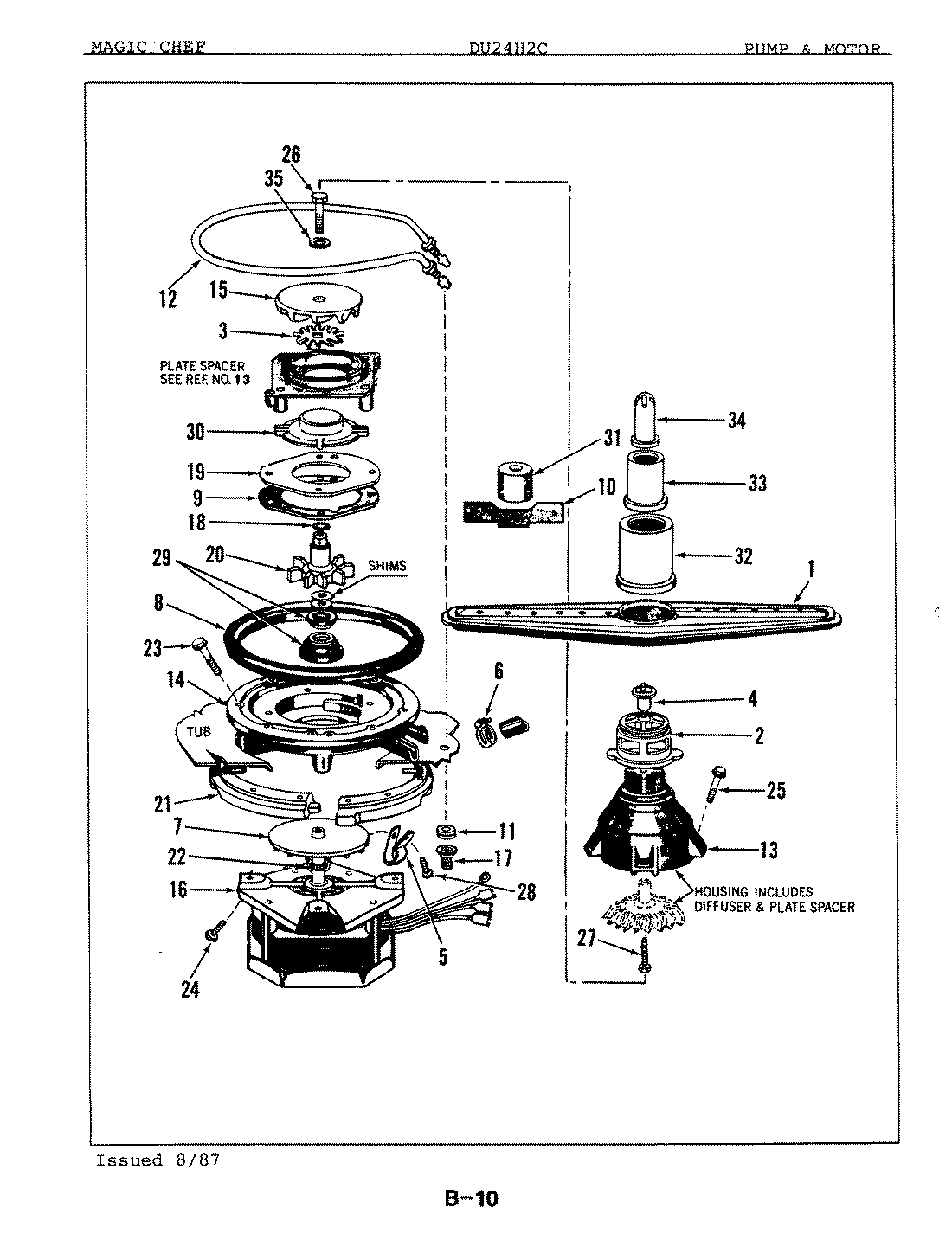

DU24H2C 07 – PUMP & MOTOR

Products

PositionProduct
1MAY 808177
2MAY 809046
3MACERATOR BLADE
4SPRAY ARM BOLT
5WIRE CLAMP
6MAY 808186
7WATER SHLD, FAN
8PUMP GASKET
9GASKET
10SHIM GAUGE
11GROMMET
12HEATER
13IMPELR HSG KIT
14MAY 809059
15UPPER IMPELLER
16MOTOR
17NUT
18O RING
19PUMP PLATE
20PUMP SEAL KIT
21CLAMP RING
22RING
23MAY 807268
24MAY 809022
25SCREW
26MAY 806353
27SCREW
28MAY 807270
29GASKET
30SHROUD
31SEAL TOOL
32TOWER BASE
33MAY 808179
34MAY 808180
35MAY 803367
