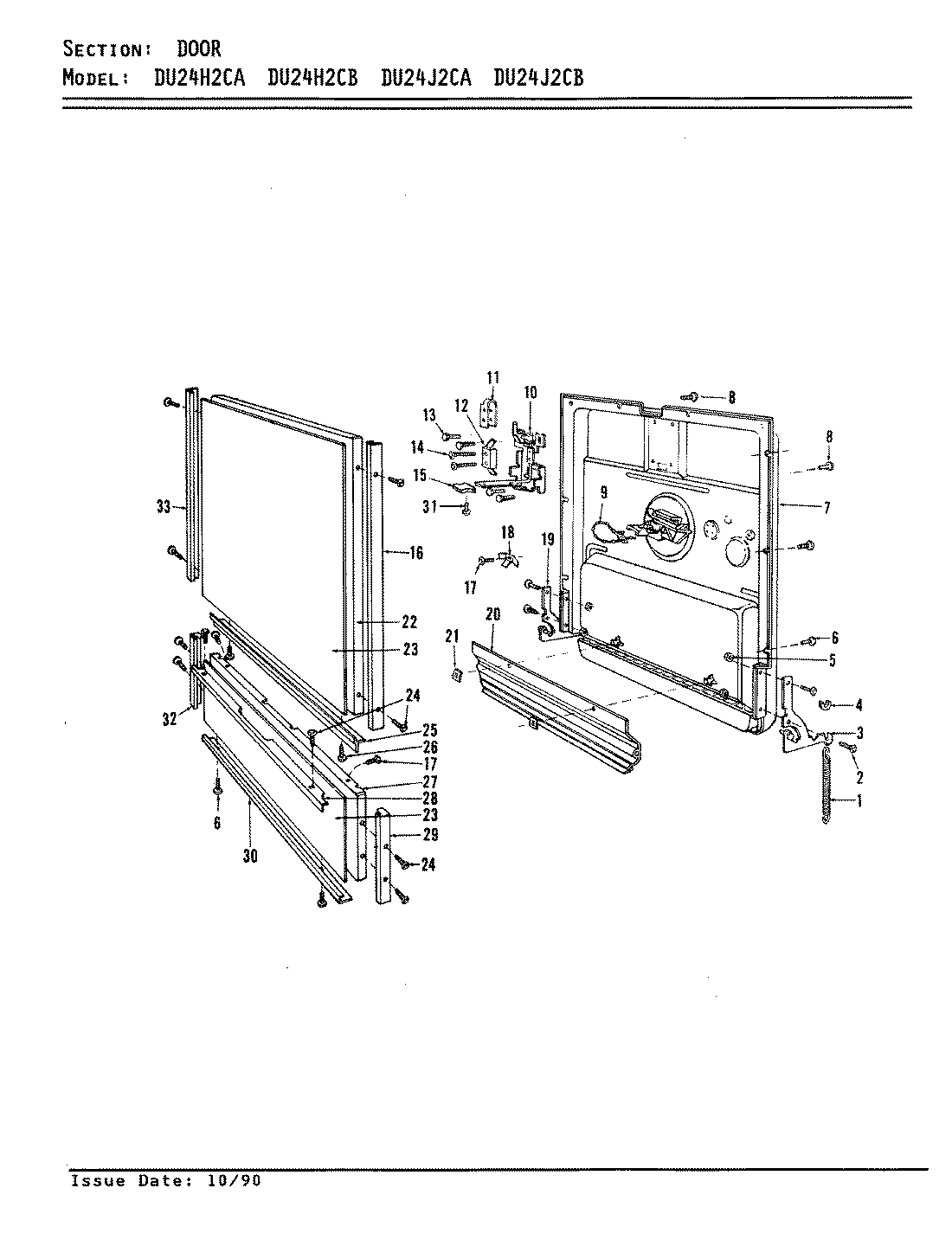

DU24H2CA 03 – DOOR

DU24H2CA 03 – DOOR

Written by

in

DU24H2CA 03 – DOOR

Products

Position	Product
1	DOOR SPRING
2	MAY 803311
3	RH ARM
4	SPRING PAD
5	LOCKNUT
6	MAY 809055
7	MAY 809052
8	MAY 808749
9	WIRE TIE
10	LATCH ASM
11	SWITCH COVER
12	MAY 807043
13	MAY 809029
14	MAY 808618
15	MAY 806398
16	DOOR TRIM
17	MAY 808658
18	GROUND TERMINAL
19	LH ARM
20	MAY 809025
21	MAY 809026
22	OUTER PANEL
23	PANEL KIT, DOOR & ACCESS
23	ACC PNL INSERT
24	MAY 807293
25	DOOR TRIM
26	MAY 809163
27	ACCESS PANEL
28	ACC PNL TRIM
29	RH TRIM
30	BOTTOM TRIM
31	SCREW
32	LH TRIM
33	DOOR TRIM
33	MAY 809343
33	BLACK DOOR KIT
