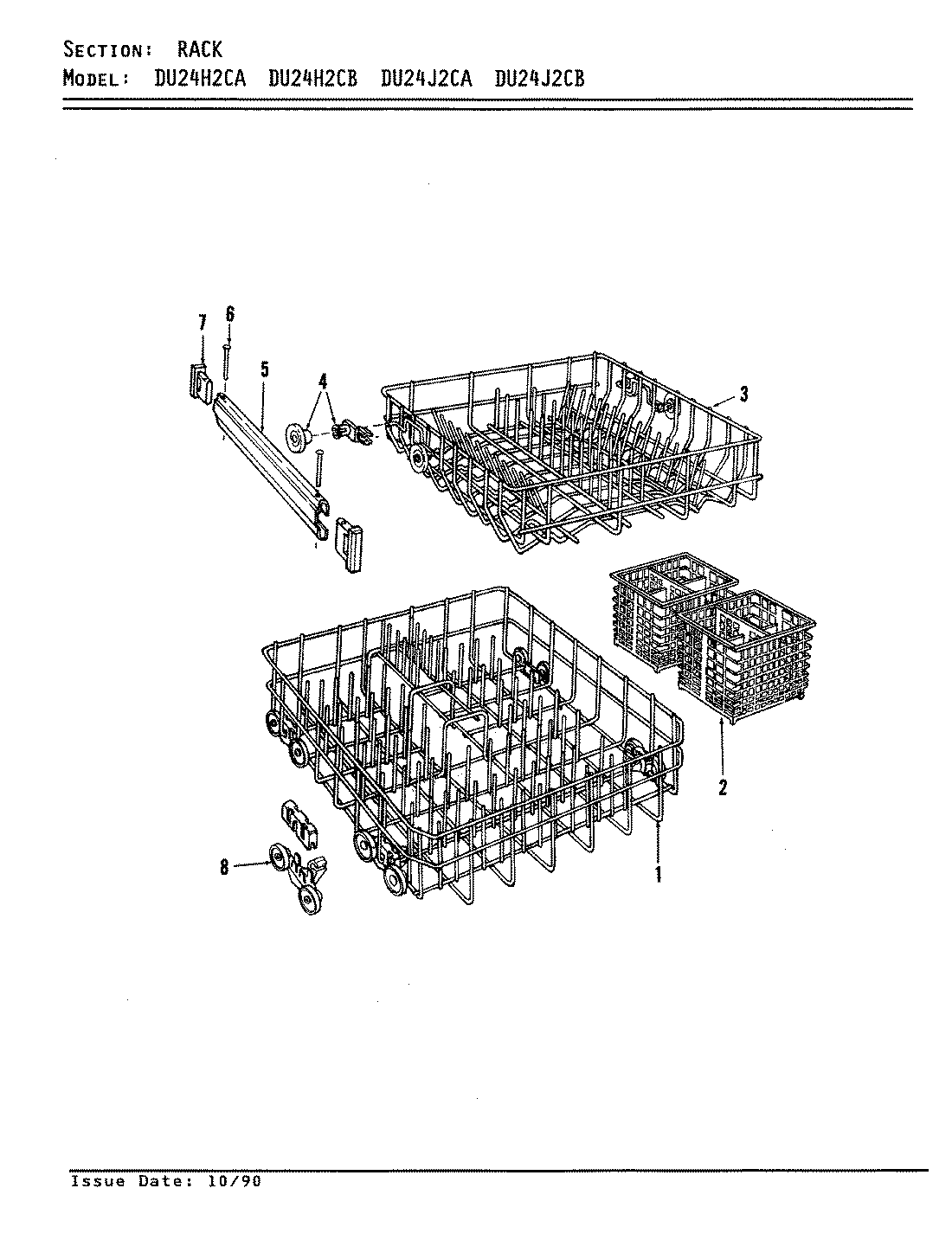

DU24H2CB 05 – RACK
Products
| Position | Product |
|---|---|
| 1 | LOWER RACK |
| 2 | SLVRWARE BASKET |
| 3 | UPPER RACK ASM |
| 4 | RACK WHEEL ASM |
| 5 | MAY 809501 |
| 6 | SLIDE CAP PIN |
| 7 | SLIDE CAP |
| 7 | MAY 809503 |
| 8 | WHEEL ASM |
