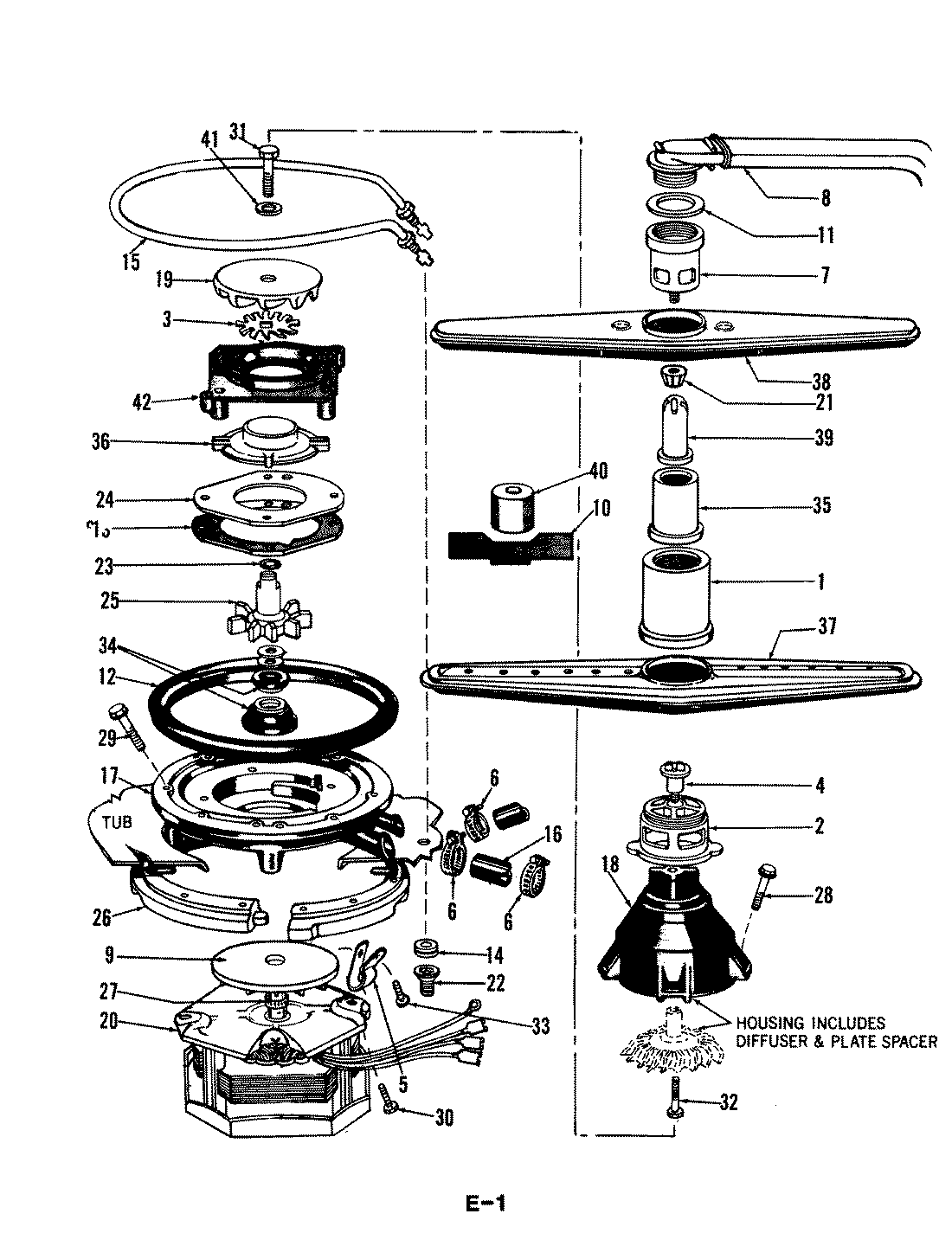

DU24H4 05 – MOTOR & PUMP

Products

Position	Product
1	TOWER BASE
2	MAY 809046
3	MACERATOR BLADE
4	SPRAY ARM BOLT
5	WIRE CLAMP
6	MAY 808186
7	MAY 808183
8	ELBOW & TUBE
9	WATER SHLD, FAN
10	SHIM GAUGE
11	MAY 808184
12	PUMP GASKET
13	GASKET
14	GROMMET
15	HEATER
16	HOSE CONNECTOR
17	MAY 809012
18	IMPELR HSG KIT
19	UPPER IMPELLER
20	MOTOR
21	MAY 808181
22	NUT
23	O RING
24	PUMP PLATE
25	PUMP SEAL KIT
26	CLAMP RING
27	RING
28	SCREW
29	MAY 807268
30	MAY 809022
31	MAY 806353
32	SCREW
33	MAY 807270
34	GASKET
35	MAY 808179
36	SHROUD
37	MAY 808177
38	SPRAY ARM
39	MAY 808180
40	SEAL TOOL
41	MAY 803367
42	SPACER PLATE
