DU24H4B 02 – DOOR – Aparts

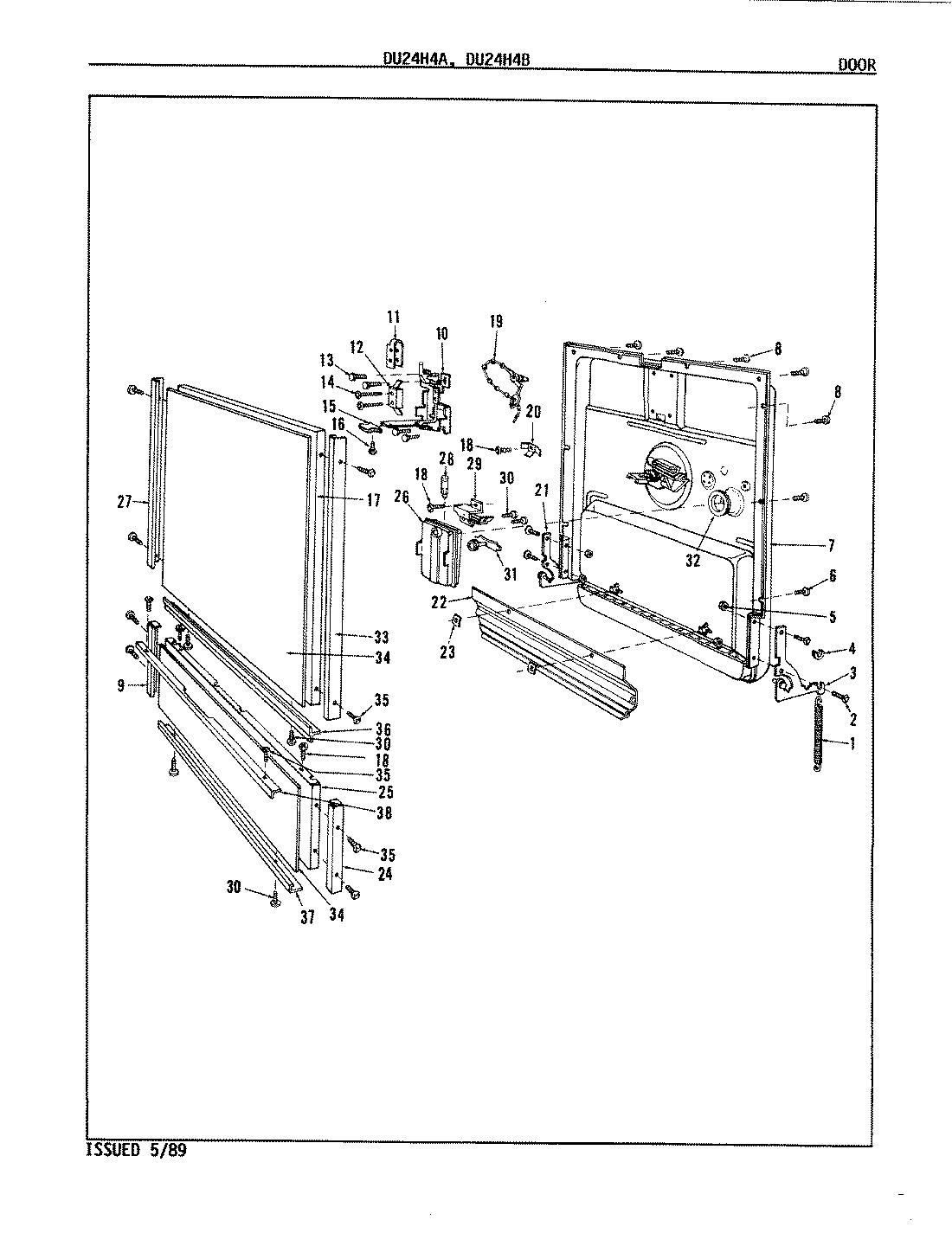

DU24H4B 02 – DOOR

Products

Position	Product
1	DOOR SPRING
2	MAY 803311
3	RH ARM
4	SPRING PAD
5	LOCKNUT
6	MAY 809055
7	DOOR ASSEMBLY
8	MAY 808749
9	LH TRIM
10	LATCH ASM
11	SWITCH COVER
12	MAY 807043
13	MAY 809029
14	MAY 808618
15	LATCH KNOB
16	MAY 809163
17	OUTER PANEL
18	MAY 808658
19	WIRE TIE
20	GROUND TERMINAL
21	LH ARM
22	MAY 809025
23	MAY 809026
24	RH TRIM
25	ACCESS PANEL
26	DISPENSER
27	DOOR TRIM
28	MAY 806757
29	BI-METAL ASM
30	MAY 807501
31	MAY 807673
32	GROMMET
33	DOOR TRIM
34	ACC PNL INSERT
35	MAY 807293
36	DOOR TRIM
37	BOTTOM TRIM
38	ACC PNL TRIM
38	BLACK DOOR KIT
