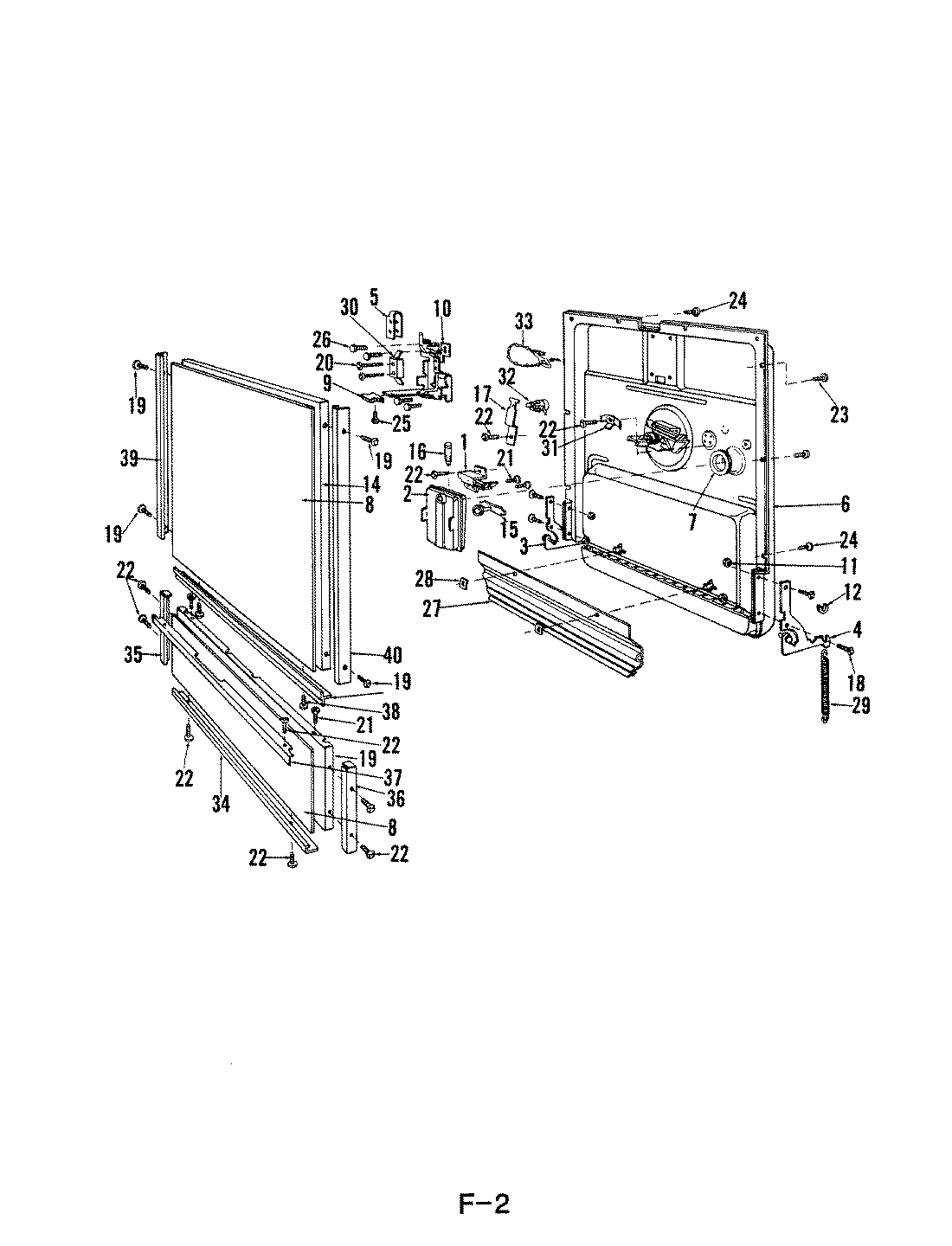

DU24H6 03 – DOOR

DU24H6 03 – DOOR

Written by

in

DU24H6 03 – DOOR

Products

Position	Product
1	BI-METAL ASM
2	DISPENSER
3	LH ARM
4	RH ARM
5	SWITCH COVER
6	DOOR ASSEMBLY
7	GROMMET
8	PANEL KIT, DOOR & ACCESS
9	MAY 806398
10	LATCH ASM
11	LOCKNUT
12	SPRING PAD
13	ACCESS PANEL
14	OUTER PANEL
15	FILL PLUG
16	MAY 806757
17	RETAINER
18	MAY 803311
19	MAY 807293
20	MAY 808618
21	MAY 807501
22	MAY 808658
23	MAY 808749
24	MAY 809055
25	MAY 809163
26	MAY 809029
27	MAY 809025
28	MAY 809026
29	DOOR SPRING
30	MAY 807043
31	GROUND TERMINAL
32	THERMOSTAT
33	WIRE TIE
34	ACCESS PNL TRIM
35	LH TRIM
36	RH TRIM
37	ACC PNL TRIM
38	DOOR TRIM
39	DOOR TRIM
40	DOOR TRIM
40	BLACK DOOR KIT
