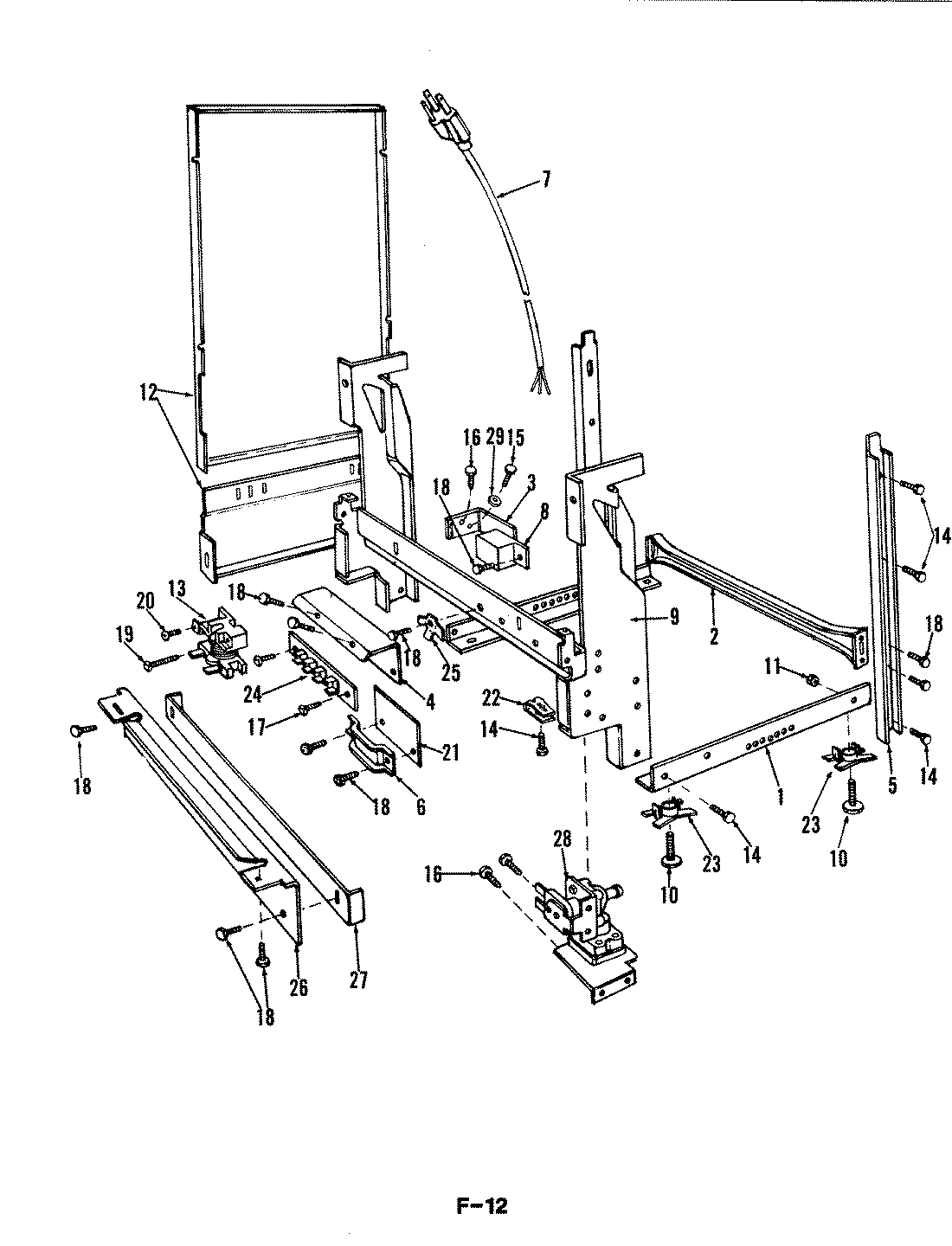

DU24H6 04 – FRAME PARTS

DU24H6 04 – FRAME PARTS

Written by

in

DU24H6 04 – FRAME PARTS

Products

PositionProduct
1SIDE CHANNEL
2MAY 807852
3BRACKET
4MAY 807849
5MAY 808670
6CLAMP
7MAY 808395
8TERMINAL COVER
9MAY 807848
10MAY 807672
11MAY 804619
12SIDE PANEL KIT
13RELAY
14SCREW
15MAY 807951
16MAY 807950
17MAY 807501
18MAY 808658
19MAY 804672
20MAY 806593
21WIRE SHIELD
22HOSE CONNECTOR
23TEENUT
24MAY 807486
25GROUND TERMINAL
26TOE PLATE
27ADJ TOE PLATE
28WATER VALVE
29MAY 807373
