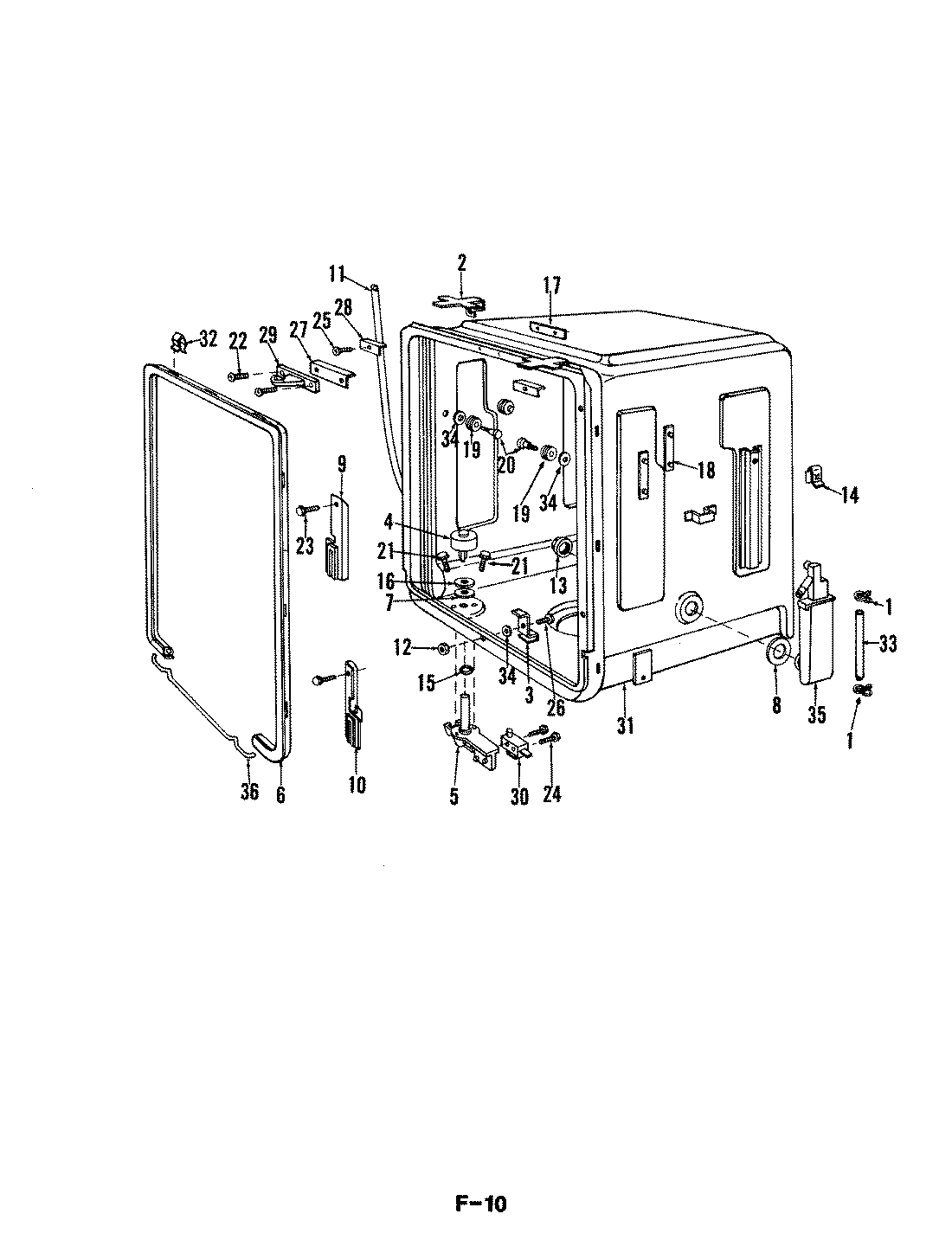

DU24H6 07 – TUB

DU24H6 07 – TUB

Written by

in

DU24H6 07 – TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	MAY 804630
5	FLOAT ASM
6	GASKET ASM
7	GASKET
8	WASHER
9	LH GUIDE
10	RH GUIDE
11	DRAIN HOSE
12	MAY 803346
13	MAY 805669
14	MAY 806291
15	O RING
16	PLATE, FLOAT TUBE
17	TAPPING PLATE
18	TAPPING PLATE
19	ROLLER
20	HARDWARE KIT
21	MAY 807268
22	MAY 806890
23	MAY 806539
24	BOLT
25	MAY 806976
26	MAY 803319
27	SHIM
28	CLIP SHIM
29	STRIKE
30	FLOAT SWITCH
31	TUB & GASKET ASM
32	CLIP KIT (TUB GASKET)
33	INLET TUBE
34	MAY 809044
35	MAY 806470
36	JUNCTION ROD
36	SEALANT
36	INSULATION, TUB
