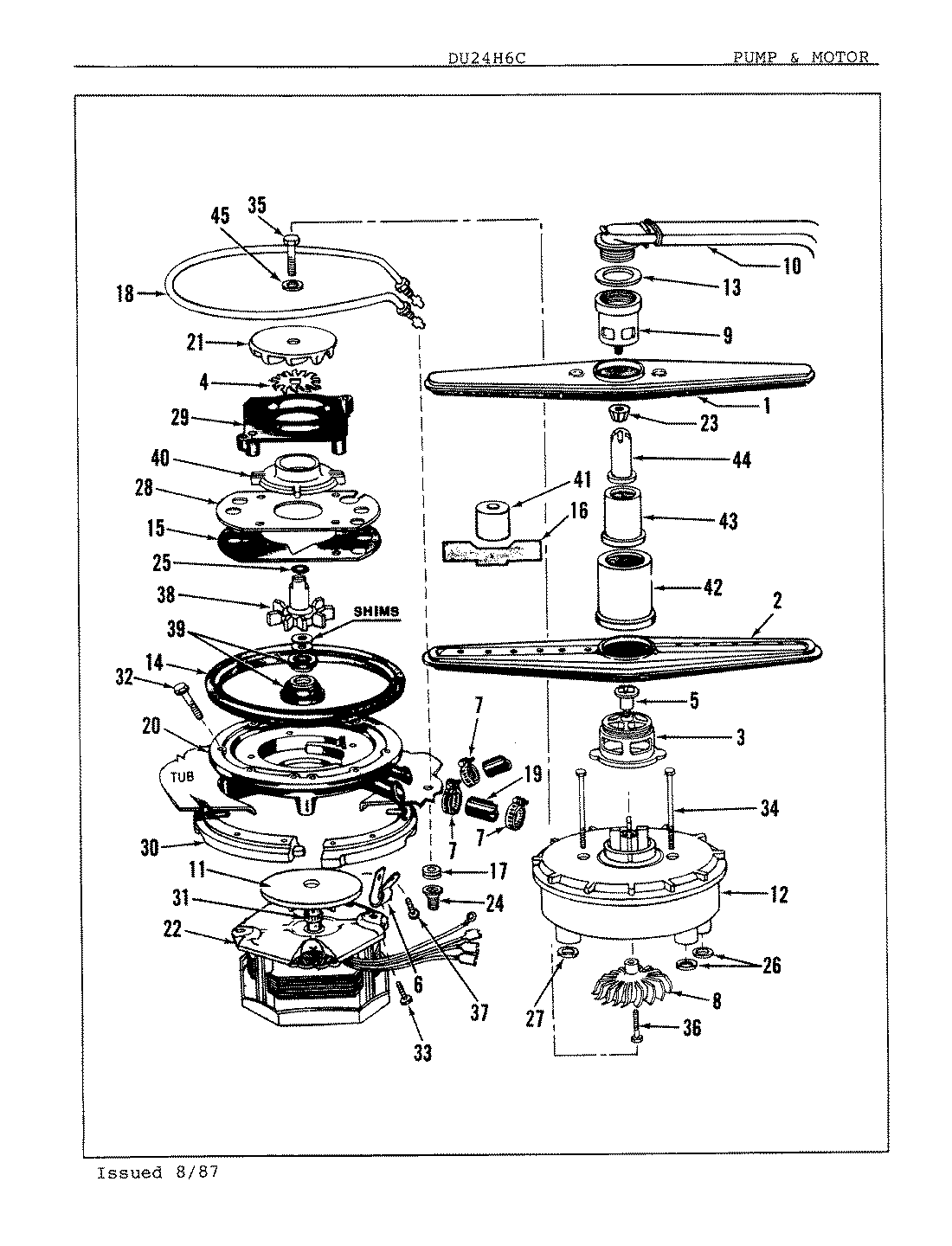

DU24H6C 07 – PUMP & MOTOR

Products

Position	Product
1	SPRAY ARM
2	MAY 808177
3	MAY 809046
4	MACERATOR BLADE
5	SPRAY ARM BOLT
6	WIRE CLAMP
7	MAY 808186
8	MAY 809014
9	MAY 808183
10	ELBOW & TUBE
11	WATER SHLD, FAN
12	MAY Y809011
13	MAY 808184
14	PUMP GASKET
15	PUMP GASKET
16	SHIM GAUGE
17	GROMMET
18	HEATER
19	HOSE CONNECTOR
20	MAY 809009
21	UPPER IMPELLER
22	MOTOR
23	MAY 808181
24	NUT
25	O RING
26	O RING
27	O RING
28	PUMP PLATE
29	SPACER PLATE
30	CLAMP RING
31	RING
32	MAY 807268
33	MAY 809022
34	MAY 809012
35	MAY 806353
36	MAY 809073
37	MAY 807270
38	PUMP SEAL KIT
39	GASKET
40	SHROUD
41	SEAL TOOL
42	TOWER BASE
43	MAY 808179
44	MAY 808180
45	MAY 803367
