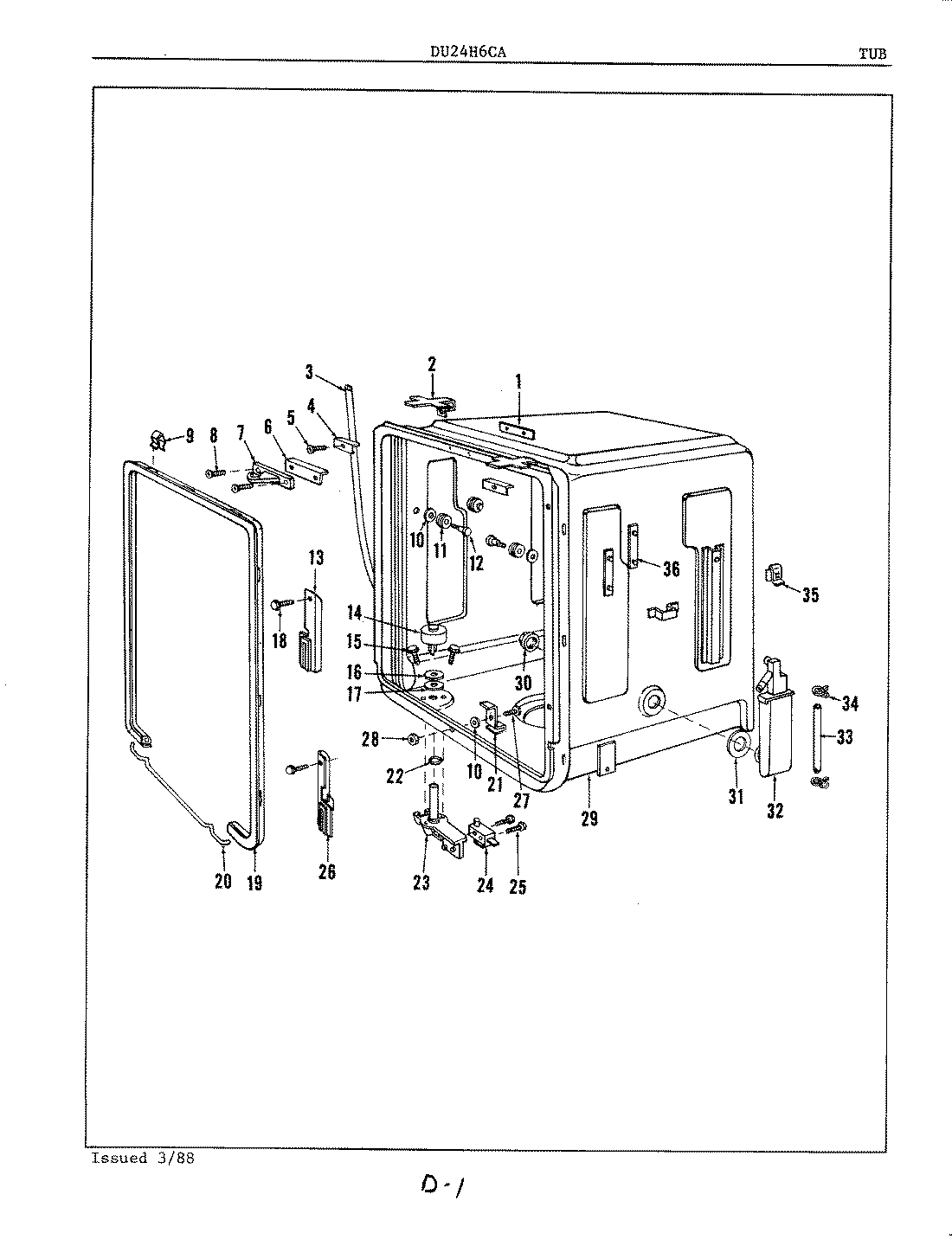

DU24H6CA 07 – TUB – Aparts

DU24H6CA 07 – TUB

Products

Position	Product
1	TAPPING PLATE
2	CLIP
3	DRAIN HOSE
4	CLIP SHIM
5	MAY 806976
6	SHIM
7	STRIKE
8	MAY 806890
9	CLIP KIT (TUB GASKET)
10	MAY 809044
11	ROLLER
12	HARDWARE KIT
13	LH GUIDE
14	MAY 804630
15	MAY 807268
16	PLATE, FLOAT TUBE
17	GASKET
18	MAY 806539
19	GASKET ASM
20	JUNCTION ROD
21	MAY 808115
22	O RING
23	FLOAT ASM
24	FLOAT SWITCH
25	BOLT
26	RH GUIDE
27	MAY 803319
28	MAY 803346
29	TUB & GASKET ASM
30	MAY 805669
31	WASHER
32	MAY 806470
33	INLET TUBE
34	MAY 807813
35	MAY 806291
36	TAPPING PLATE
36	SEALANT
36	MAY 809512
