DU24H6CB 05 – INNER TUB – Aparts

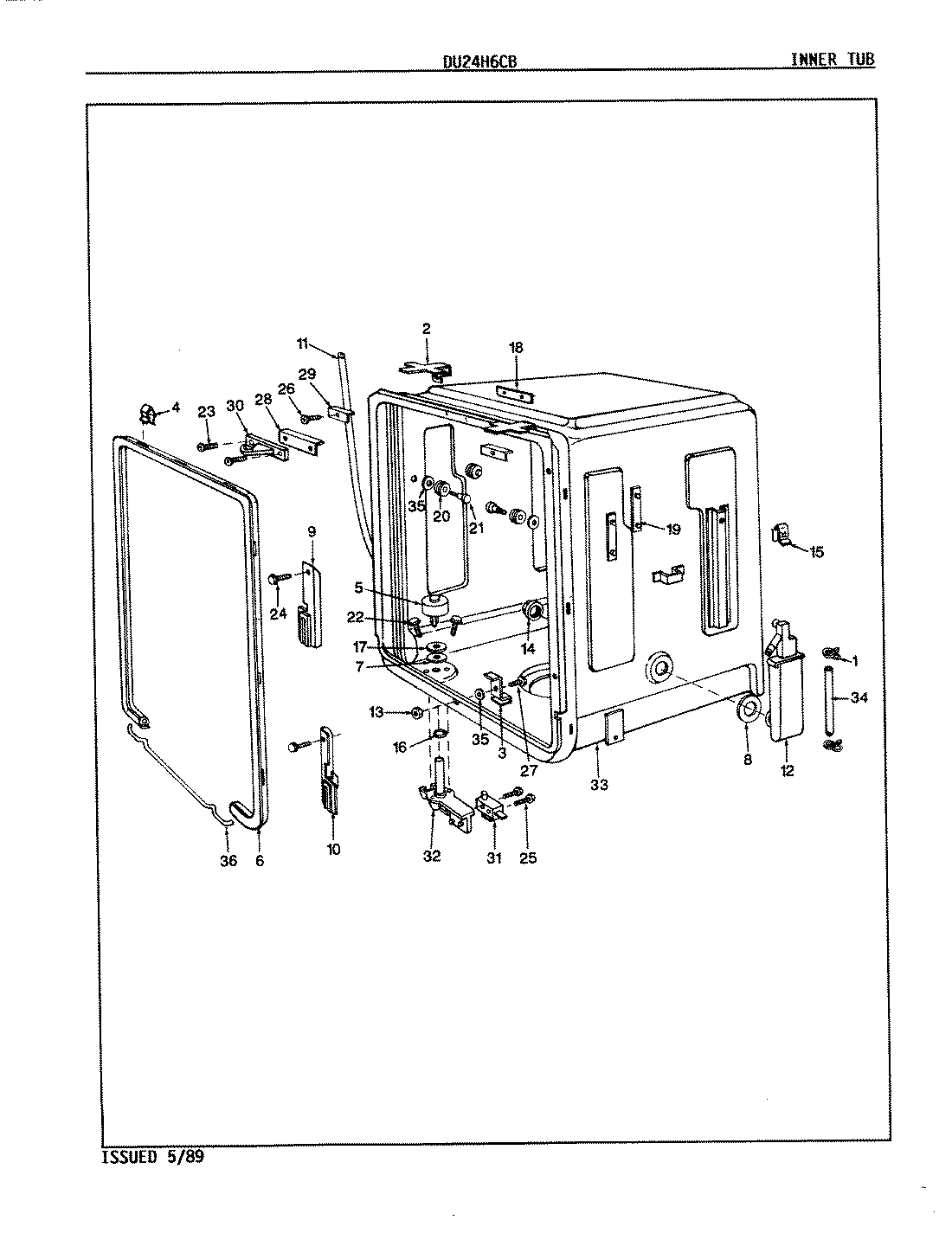

DU24H6CB 05 – INNER TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	CLIP KIT (TUB GASKET)
5	MAY 804630
6	GASKET ASM
7	GASKET
8	WASHER
9	LH GUIDE
10	RH GUIDE
11	DRAIN HOSE
12	MAY 806470
13	MAY 803346
14	MAY 805669
15	MAY 806291
16	O RING
17	PLATE, FLOAT TUBE
18	TAPPING PLATE
19	TAPPING PLATE
20	ROLLER
21	HARDWARE KIT
22	MAY 807268
23	MAY 806890
24	MAY 806539
25	BOLT
26	MAY 806976
27	MAY 803319
28	SHIM
29	CLIP SHIM
30	STRIKE
31	FLOAT SWITCH
32	FLOAT ASM
33	TUB & GASKET ASM
34	INLET TUBE
35	MAY 809044
36	JUNCTION ROD
36	SEALANT
36	MAY 809512
