DU24H8 05 – MOTOR & PUMP

Products

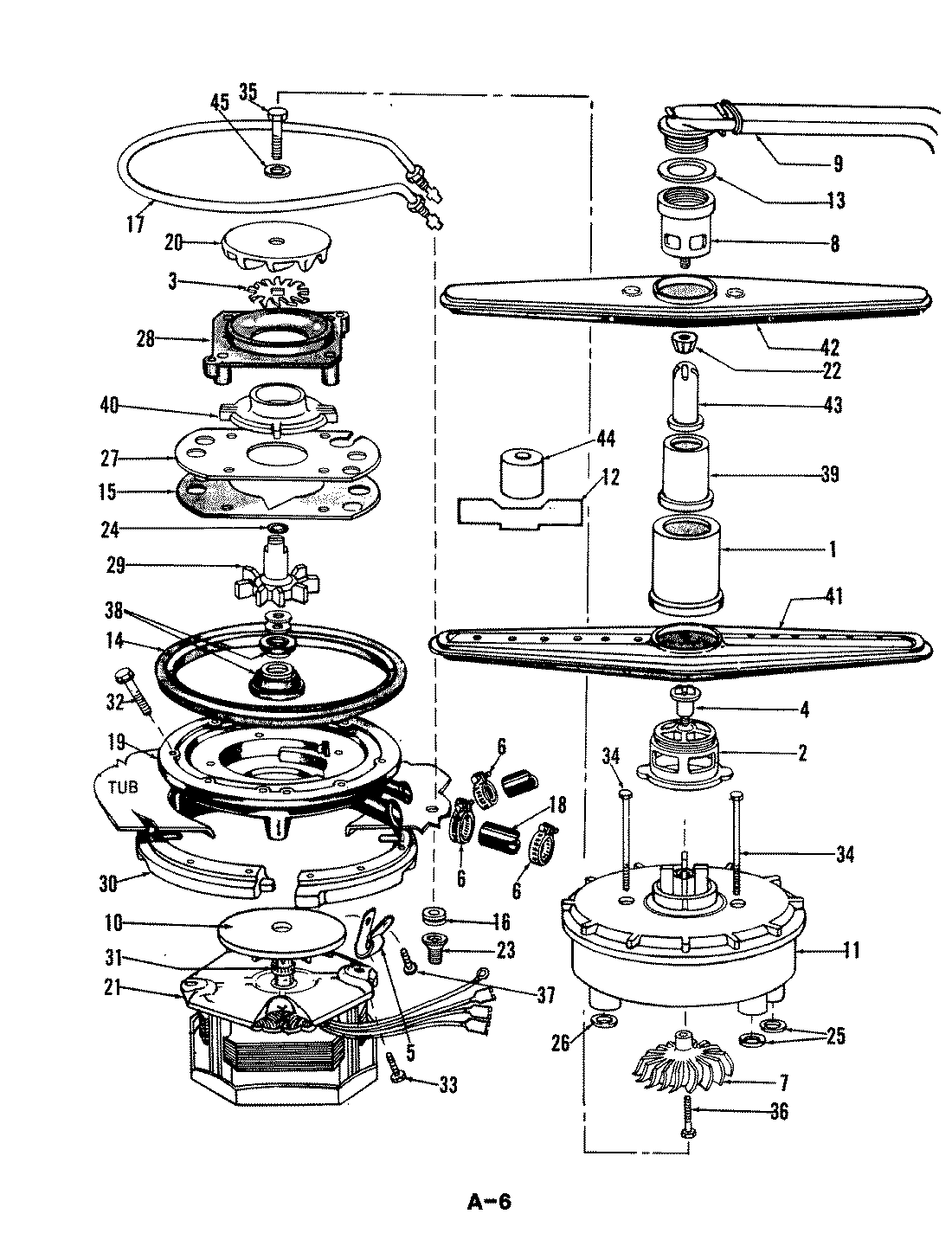

Position	Product
1	TOWER BASE
2	MAY 809046
3	MACERATOR BLADE
4	SPRAY ARM BOLT
5	WIRE CLAMP
6	MAY 808186
7	MAY 809014
8	MAY 808183
9	ELBOW & TUBE
10	WATER SHLD, FAN
11	MAY Y809011
12	SHIM GAUGE
13	MAY 808184
14	PUMP GASKET
15	PUMP GASKET
16	GROMMET
17	HEATER
18	HOSE CONNECTOR
19	MAY 809009
20	UPPER IMPELLER
21	MOTOR
22	MAY 808181
23	NUT
24	O RING
25	O RING
26	O RING
27	PUMP PLATE
28	SPACER PLATE
29	PUMP SEAL KIT
30	CLAMP RING
31	RING
32	MAY 807268
33	MAY 809022
34	MAY 809012
35	MAY 806353
36	MAY 809073
37	MAY 807270
38	GASKET
39	MAY 808179
40	SHROUD
41	MAY 808177
42	SPRAY ARM
43	MAY 808180
44	SEAL TOOL
