DU24H8 07 – TUB – Aparts

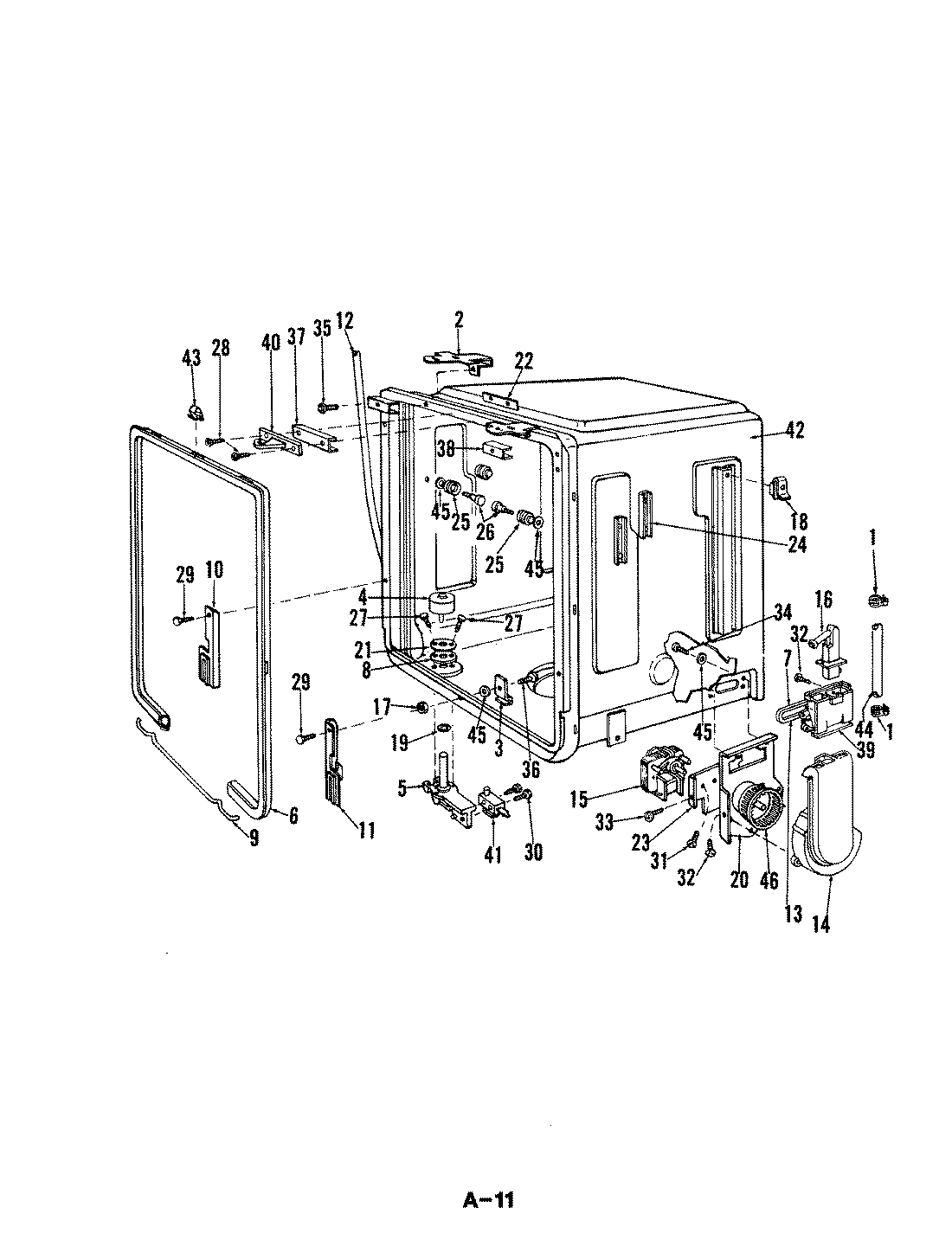

DU24H8 07 – TUB

Products

Position	Product
1	MAY 807813
2	CLIP
3	MAY 808115
4	MAY 804630
5	FLOAT ASM
6	GASKET ASM
7	GASKET
8	GASKET
9	JUNCTION ROD
10	LH GUIDE
11	RH GUIDE
12	DRAIN HOSE
13	HOUSING ASM
14	MAY 808738
15	BLOWER MOTOR
16	INLET NOZZLE
17	MAY 803346
18	MAY 806291
19	O RING
20	PLATE
21	PLATE, FLOAT TUBE
22	TAPPING PLATE
23	PLATE
24	TAPPING PLATE
25	ROLLER
26	HARDWARE KIT
27	MAY 807268
28	MAY 806890
29	MAY 806539
30	BOLT
31	SCREW
32	SCREW
33	SCREW
34	SCREW
35	MAY 806976
36	MAY 803319
37	SHIM
38	CLIP SHIM
39	MAY 808706
40	STRIKE
41	FLOAT SWITCH
42	TUB ASM
43	CLIP KIT (TUB GASKET)
44	INLET TUBE
45	MAY 809044
46	BLOWER WHEEL
46	SEALANT
46	INSULATION, TUB
